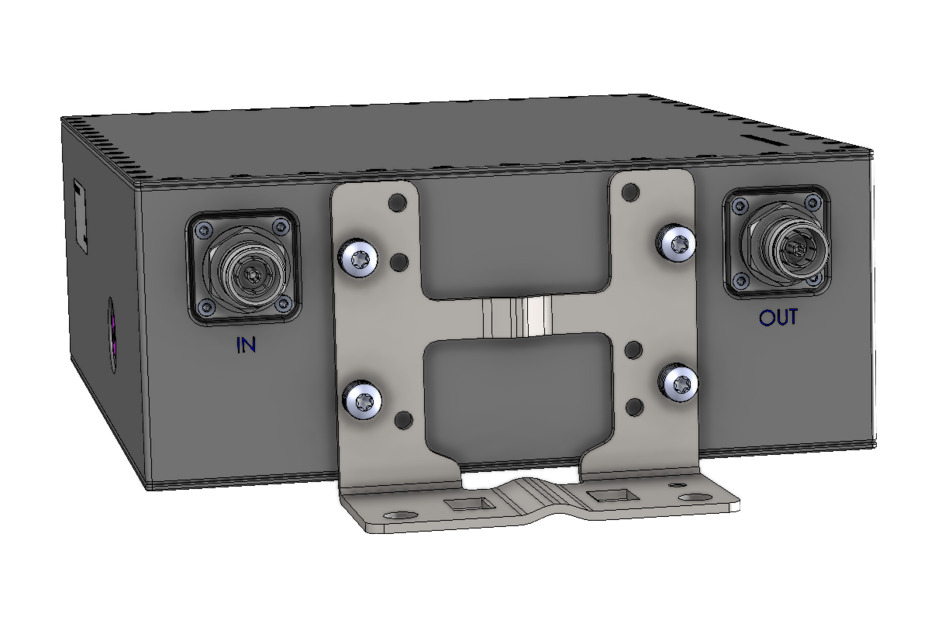

7833623-00
Double Notch Filter for DL 700/800 bands Public Safety
Specifications
Product classification
| Product Type | Filter |
General specifications
| Color | Grey (RAL 7047, Telegrau) |
| RF Connector Interface | 4.3-10 Female |
| RF Inputs, quantity | 1 |
| RF Outputs, quantity | 1 |
Dimensions
| Height | 109 mm | 4.291 in |
| Width | 247 mm | 9.724 in |
| Depth | 425 mm | 16.732 in |
Electrical specifications
| Return Loss, minimum | 18 dB |
| Impedance | 50 ohm |
Electrical specifications, band pass
| Sub-module | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Frequency Range, MHz | 617–758 | 777–778 | 778–848 | 848–849 | 869–894 | 1695–1735 | 1735–2020 | 2110–2690 |
| Insertion Loss, maximum, dB | 1.40 | 2.80 | 2.00 | 2.80 | 1.50 | 0.80 | 0.55 | 0.55 |
| Insertion Loss, typical, dB | 0.85 | 2.20 | 1.50 | 2.30 | 1.20 | 0.60 | 0.50 | 0.30 |
Electrical specifications, band reject
| Sub-module | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Frequency Range, MHz | 768–775 | 851–862 | ||||||
| Attenuation, minimum, dB | 49.0 | 49.0 | ||||||
| Attenuation, typical, dB | 51.0 | 51.0 |
Environmental specifications
| Operating Temperature | -33 °C to +52 °C (-27.4 °F to + 125.6 °F) |
| Relative Humidity | Up to 93%, non-condensing |
| Ingress Protection Test Method | IEC 60529:2001, IP66 |
Packaging and weights
| Included | Mounting hardware |
| Mounting Hardware Weight | 0.3 kg | 0.661 lb |
| Weight, net | 11.5 kg | 25.353 lb |
| Weight, without mounting hardware | 11.2 kg | 24.692 lb |
