APT-HFHM-CB
Base product: SURGE-ARRESTORS

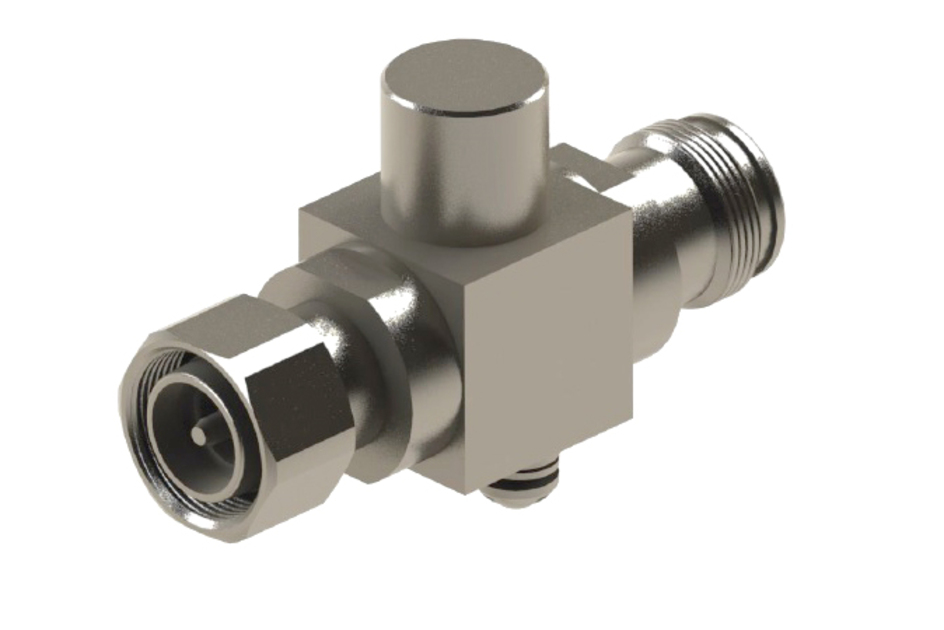

Arrestor Plus® Quarterwave Surge Arrestor for C-Band 3400-4000MHz, with interface types 4.3-10 Female and 4.3-10 Male
Specifications
Product classification
| Product Type | Quarter wave shorting stub |
| Product Brand | Arrestor Plus® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Device Type | dc Pass |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Interface 2 | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 48.5 mm | 1.909 in |
| Width | 25 mm | 0.984 in |
| Length | 79.1 mm | 3.114 in |

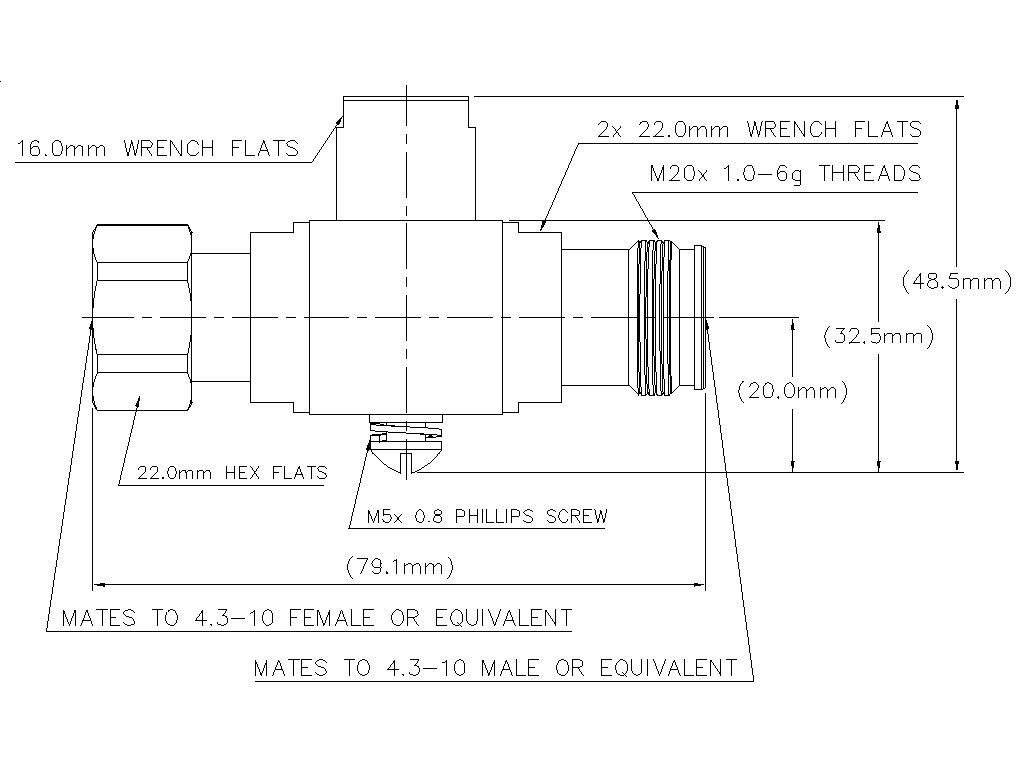

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD Gain | -117 dB |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.15 dB |
| Connector Impedance | 50 ohm |
| Inner Contact Resistance, maximum | 1 ohm |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 3400 – 4000 MHz |
| Outer Contact Resistance, maximum | 1 MOhm |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) | Vswr, typical | Return loss, typical (db) |
| 2700–3000 MHz | 1.201 | 20.80 | ||
| 3000–4200 MHz | 1.201 | 20.80 | ||
| 3400–4000 MHz | 1.201 | 20.80 | 1.065 | 30.00 |
| 4200–5000 MHz | 1.201 | 20.80 | ||
| 5000–6000 MHz | 1.201 | 20.80 |
Mechanical specifications
| Coupling Nut Proof Torque | 10.000 N-m | 88.507 N-m |
| Coupling Nut Retention Force | 449.270 N | 101 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 61169-1 9.3.14 |
Environmental specifications
| Operating Temperature | -45 °C to +85 °C (-49 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
Packaging and weights
| Packaging quantity | 50 |
| Weight, net | 0.238 kg | 0.5247 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Quarter wave shorting stub |
| Product Brand | Arrestor Plus® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Device Type | dc Pass |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Interface 2 | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 48.5 mm | 1.909 in |
| Width | 25 mm | 0.984 in |
| Length | 79.1 mm | 3.114 in |
Electrical specifications
| 3rd Order IMD Gain | -117 dB |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss, typical | 0.15 dB |
| Connector Impedance | 50 ohm |
| Inner Contact Resistance, maximum | 1 ohm |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 3400 – 4000 MHz |
| Outer Contact Resistance, maximum | 1 MOhm |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) | VSWR, typical | Return Loss, typical (dB) |
| 2700–3000 MHz | 1.201 | 20.80 | ||
| 3000–4200 MHz | 1.201 | 20.80 | ||
| 3400–4000 MHz | 1.201 | 20.80 | 1.065 | 30.00 |
| 4200–5000 MHz | 1.201 | 20.80 | ||
| 5000–6000 MHz | 1.201 | 20.80 |
Mechanical specifications
| Coupling Nut Proof Torque | 10.000 N-m | 88.507 N-m |
| Coupling Nut Retention Force | 449.270 N | 101 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | IEC 61169-1 9.3.14 |
Environmental specifications
| Operating Temperature | -45 °C to +85 °C (-49 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
Packaging and weights
| Packaging quantity | 50 |
| Weight, net | 0.238 kg | 0.5247 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
