243951
Base product: SURGE-ARRESTOR-ACCESSORIES

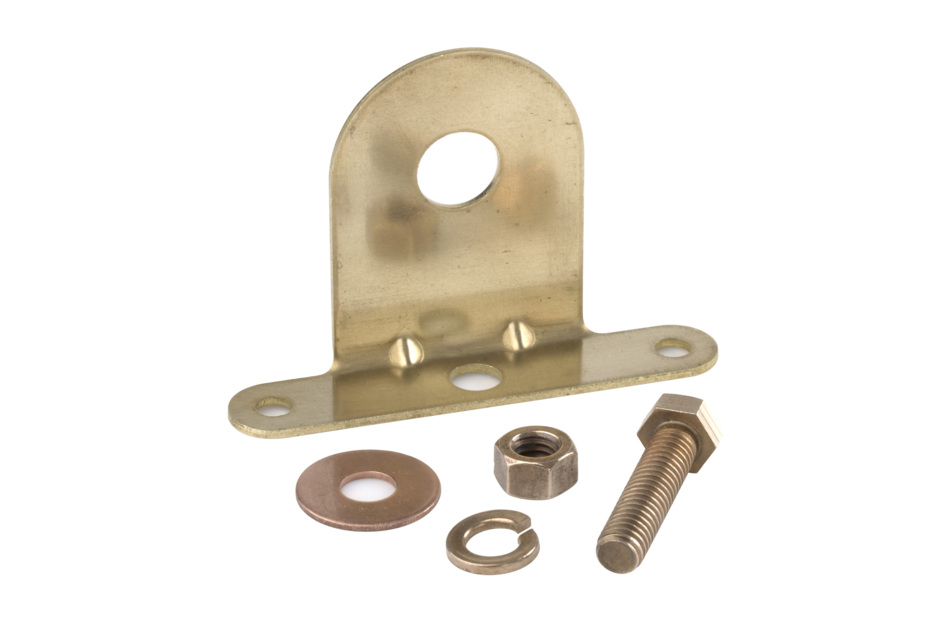

Mounting/Grounding Bracket
Specifications
Product classification
| Product Type | Surge arrestor accessory |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Interface | N Female Bulkhead |
Dimensions
| Height | 67 mm | 2.638 in |
| Width | 22.3 mm | 0.878 in |
| Length | 89.9 mm | 3.539 in |

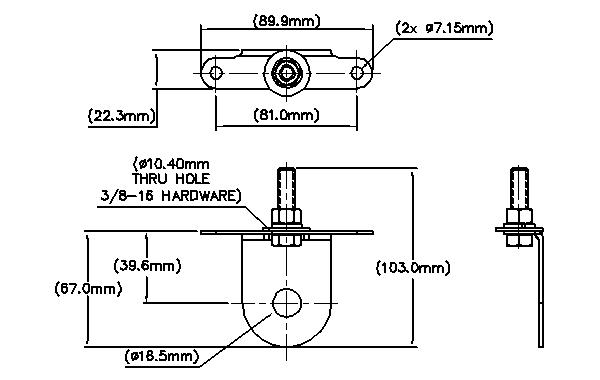

Outline drawing
| Click on image to enlarge. |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 110 g | 0.243 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Surge arrestor accessory |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Interface | N Female Bulkhead |
Dimensions
| Height | 67 mm | 2.638 in |
| Width | 22.3 mm | 0.878 in |
| Length | 89.9 mm | 3.539 in |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 110 g | 0.243 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Installation & videos
Installation instruction
Documentation & downloads
