PTS1A-DFDF-2M-P

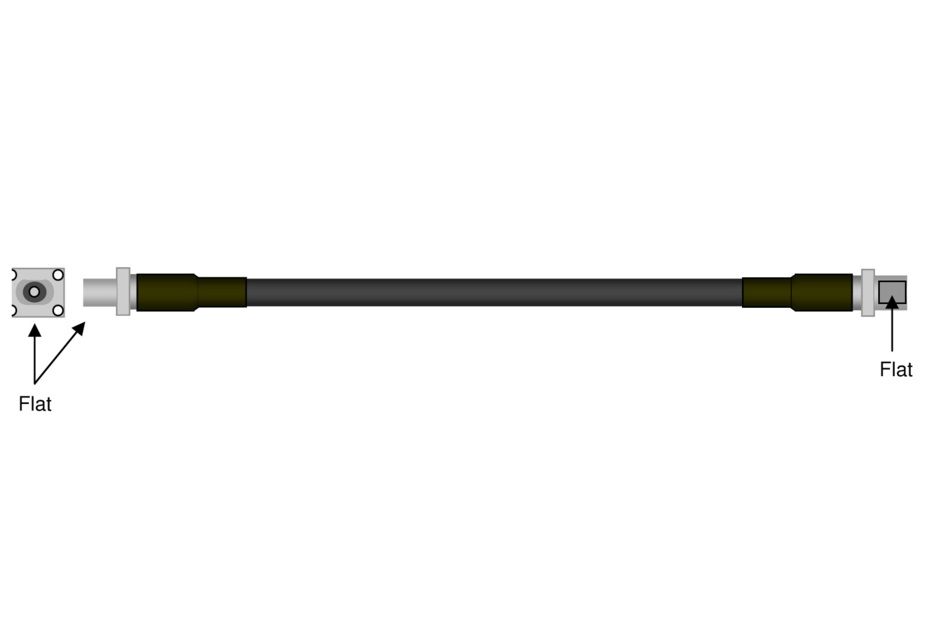

PTS1-50-HRL SureFlex® Jumper with interface types 7/16 DIN Femal Panel Mount and 7/16 DIN Femal Panel Mount, 2M
Specifications
Product classification
| Product Type | SureFlex® Premium, static PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | PTS1-50-HRL |
General specifications
| Body Style, Connector A | Panel mount |
| Body Style, Connector B | Panel mount |
| Interface, Connector A | 7-16 DIN Female Panel Mount |
| Interface, Connector B | 7-16 DIN Female Panel Mount |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 2 m | 6.562 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Electrical specifications
| 3rd Order IMD Dynamic | -113 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 680–960 MHz | 1.135 | 23.98 |
| 1700–2700 MHz | 1.135 | 23.98 |
Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | SureFlex® Premium, static PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | PTS1-50-HRL |
General specifications
| Body Style, Connector A | Panel mount |
| Body Style, Connector B | Panel mount |
| Interface, Connector A | 7-16 DIN Female Panel Mount |
| Interface, Connector B | 7-16 DIN Female Panel Mount |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 2 m | 6.562 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Electrical specifications
| 3rd Order IMD Dynamic | -113 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 680–960 MHz | 1.135 | 23.98 |
| 1700–2700 MHz | 1.135 | 23.98 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
