MLOC5-RGXF-2M5

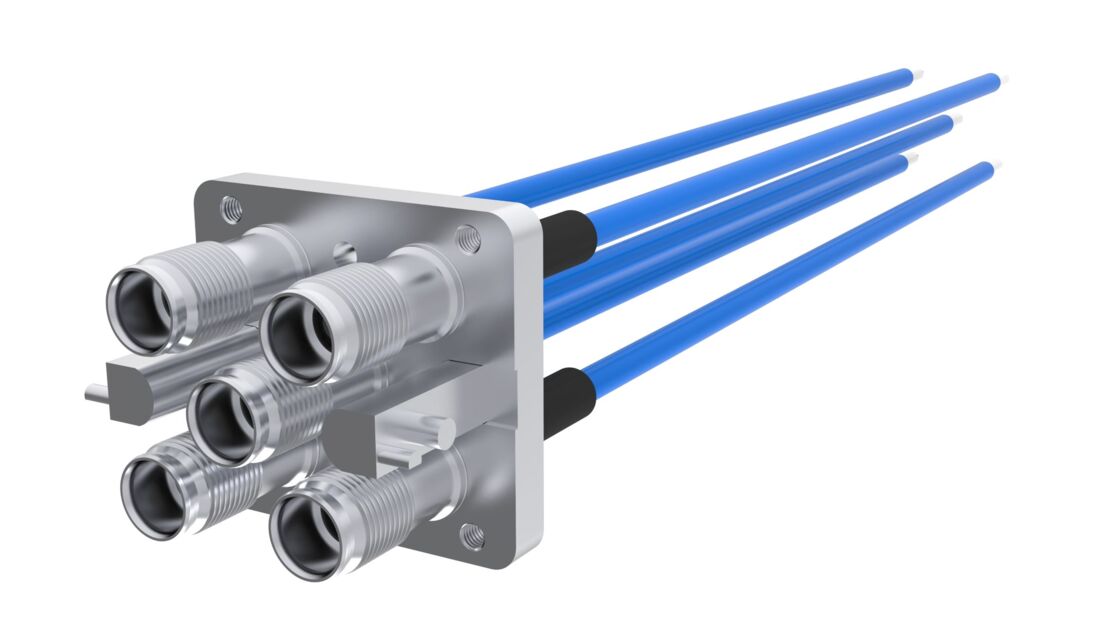

HELIAX® M-LOC Multiport cluster 5 ports SureFlex® cable assembly with interface type M-LOC female to open end, size 0.141", length 2.5 meters
Specifications
Product classification
| Product Type | HELIAX® MLOC cluster, SureFlex® D-CLASS, dynamic PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | MLOC |
General specifications
| Attachment, Connector A | Factory attached |
| Body Style, Connector A | Straight |
| Interface, Connector A | M-LOC Female |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 2.5 m | 8.202 ft |
| Cable Length Unit | Meters |
| Nominal Size | 0.141 in |
Electrical specifications
| 3rd Order IMD Dynamic | -119 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers per IEC 62037 |
Return loss/vswr
| Frequency band | Gated vswr | Gated return loss (db) |
| 1000–3000 MHz | 1.070 | 30.00 |
| 3000–4200 MHz | 1.110 | 26.00 |
| 4200–5000 MHz | 1.120 | 25.00 |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 40 mm | 1.575 in |
| Minimum Bend Radius, Single Bend | 8 mm | 0.315 in |
Environmental specifications
| Installation temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | HELIAX® MLOC cluster, SureFlex® D-CLASS, dynamic PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | MLOC |
General specifications
| Attachment, Connector A | Factory attached |
| Body Style, Connector A | Straight |
| Interface, Connector A | M-LOC Female |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 2.5 m | 8.202 ft |
| Cable Length Unit | Meters |
| Nominal Size | 0.141 in |
Electrical specifications
| 3rd Order IMD Dynamic | -119 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers per IEC 62037 |
Return loss/vswr
| Frequency Band | Gated VSWR | Gated Return Loss (dB) |
| 1000–3000 MHz | 1.070 | 30.00 |
| 3000–4200 MHz | 1.110 | 26.00 |
| 4200–5000 MHz | 1.120 | 25.00 |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 40 mm | 1.575 in |
| Minimum Bend Radius, Single Bend | 8 mm | 0.315 in |
Environmental specifications
| Installation temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
