MLOC4CLT-2M
Base product: CLT4MQ-CO
Multiport cluster 4 ports cable assembly with interface type MLOC male to MQ female,size 1/4", 2 meters
Specifications
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Series | MLOC | MQ |
| Warranty | Two years |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | M-LOC Male |
| Interface, Connector B | MQ Female |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 2 m | 6.562 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Outline drawing
| Click on image to enlarge. |

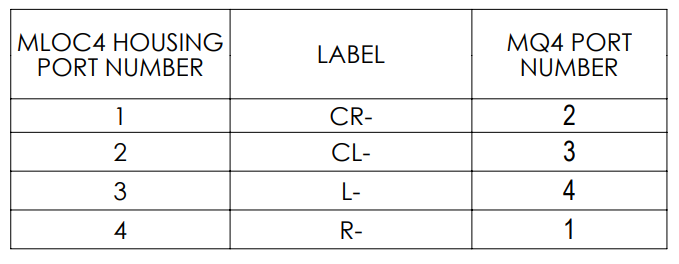

Port configuration
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD Static | -112 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) | Vswr, typical | Return loss, typical (db) |
| 0–2700 MHz | 1.151 | 23.10 | 1.101 | 26.40 |
| 2700–4200 MHz | 1.201 | 20.80 | 1.152 | 23.00 |
| 4200–6000 MHz | 1.352 | 16.50 | 1.300 | 17.70 |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 25.4 mm | 1.000 in |
| Minimum Bend Radius, Single Bend | 25.4 mm | 1.000 in |
Environmental specifications
| Operating Temperature | -40 ºC to +85 ºC (-40 ºF to +185 ºF) |
| Immersion Test Method | IEC 60529:2001, IP67 |
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Series | MLOC | MQ |
| Warranty | Two years |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | M-LOC Male |
| Interface, Connector B | MQ Female |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 2 m | 6.562 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Electrical specifications
| 3rd Order IMD Static | -112 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) | VSWR, typical | Return Loss, typical (dB) |
| 0–2700 MHz | 1.151 | 23.10 | 1.101 | 26.40 |
| 2700–4200 MHz | 1.201 | 20.80 | 1.152 | 23.00 |
| 4200–6000 MHz | 1.352 | 16.50 | 1.300 | 17.70 |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 25.4 mm | 1.000 in |
| Minimum Bend Radius, Single Bend | 25.4 mm | 1.000 in |
Environmental specifications
| Operating Temperature | -40 ºC to +85 ºC (-40 ºF to +185 ºF) |
| Immersion Test Method | IEC 60529:2001, IP67 |
| Click on image to enlarge. |
| Click on image to enlarge. |
