MLOC-4-F1XM-NM-3M

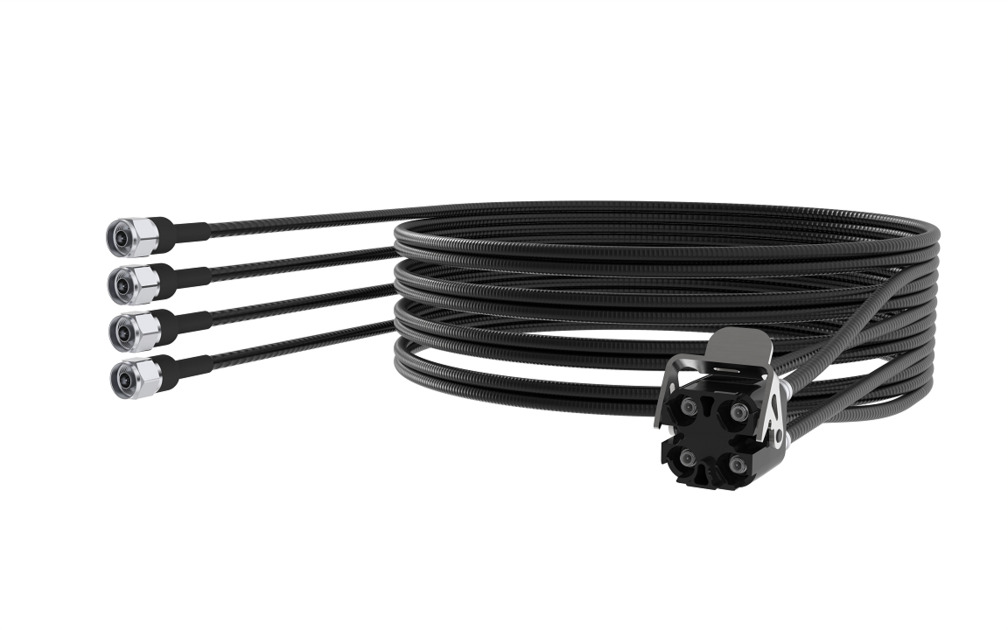

HELIAX® M-LOC Multiport cluster 4 ports SureFlex® cable assembly with interface type M-LOC latching male to N male,size 1/4", length 3 meters
Specifications
Port configuration
| Click on image to enlarge. |
Return loss/vswr
| Frequency band | Gated vswr | Gated return loss (db) | Insertion loss, typical (db) |
| 1000–3000 MHz | 1.070 | 30.00 | 1.18 |
| 3000–4200 MHz | 1.110 | 26.00 | 1.42 |
| 4200–5000 MHz | 1.120 | 25.00 | 1.56 |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Return loss/vswr
| Frequency Band | Gated VSWR | Gated Return Loss (dB) | Insertion Loss, typical (dB) |
| 1000–3000 MHz | 1.070 | 30.00 | 1.18 |
| 3000–4200 MHz | 1.110 | 26.00 | 1.42 |
| 4200–5000 MHz | 1.120 | 25.00 | 1.56 |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
