F1A-HMSM-1M
Base product: F1A-HMSM

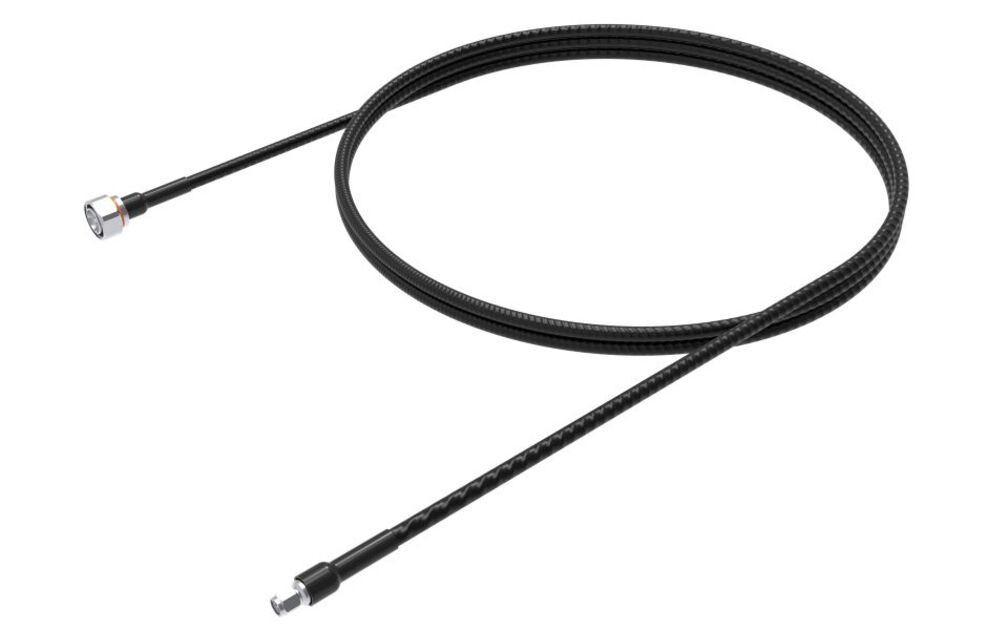

FSJ1-50A SureFlex® Jumper with interface types 4.3-10 Male and SMA Male, 1M
Features and benefits
- WARNING: DO NOT MATE WITH 4.1-9.5 DIN
Specifications
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | FSJ1-50A |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | 4.3-10 Male |
| Interface, Connector B | SMA Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 1 m | 3.281 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) | Vswr, typical | Return loss, typical (db) |
| 700–3000 MHz | 1.222 | 20.01 | ||
| 3000–6000 MHz | 1.288 | 18.00 |
Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | FSJ1-50A |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | 4.3-10 Male |
| Interface, Connector B | SMA Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 1 m | 3.281 ft |
| Cable Length Unit | Meters |
| Nominal Size | 1/4 in |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) | VSWR, typical | Return Loss, typical (dB) |
| 700–3000 MHz | 1.222 | 20.01 | ||
| 3000–6000 MHz | 1.288 | 18.00 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
