F4-DMDR-SGW-D

Base product

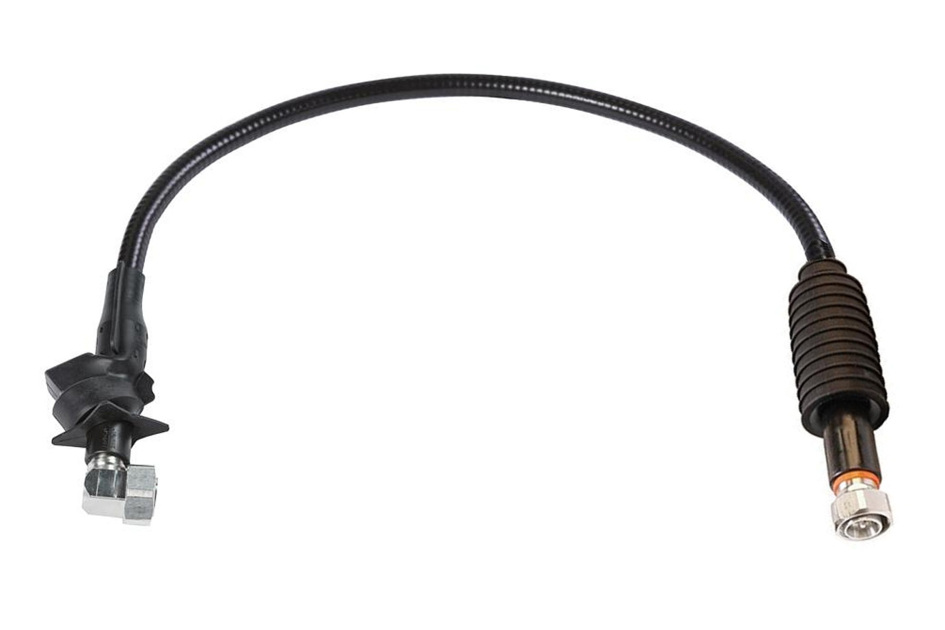

D-CLASS HELIAX® 1/2" Superflexible SureFlex® Jumper with interface types 7-16 DIN Male and 7-16 DIN Male Right Angle with HELIAX® SureGuard weatherproofing

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Configure product variants

Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.

Update browser

Product variants

Configure and display product variants of F4-DMDR-SGW-D by selecting options

Specifications

Product classification

Product Type	SureFlex® D-CLASS, dynamic PIM
Product Brand	HELIAX® \| SureFlex®
Product Series	RSJ4-50

General specifications

Attachment, Connector A	Factory attached
Attachment, Connector B	Factory attached
Body Style, Connector A	Straight
Body Style, Connector B	Right angle
Interface, Connector A	7-16 DIN Male
Interface, Connector B	7-16 DIN Male
Specification Sheet Revision Level	A

Dimensions

Nominal Size

1/2 in

Logo image

Click on image to enlarge.

Jumper assembly sample label

Click on image to enlarge.

Environmental specifications

Immersion Test Method	Meets IEC 60529:2001, IP68 in mated condition
Weatherproofing Method	HELIAX® SureGuard weatherproofing boot

Packaging and weights

Included

Weatherproofing boot
