F1-XMHR-D

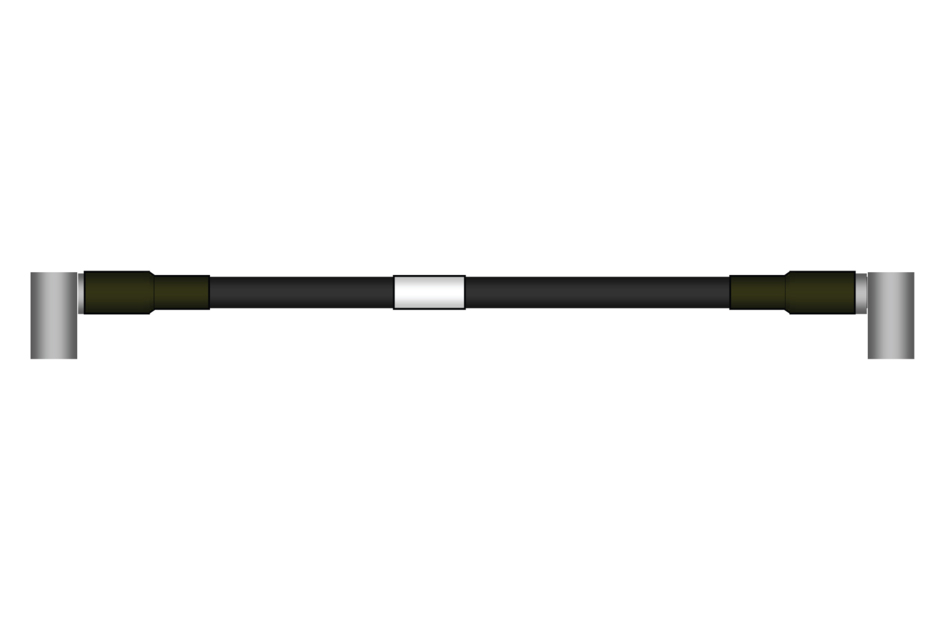

D-CLASS FSJ1-50A SureFlex® Jumper with interface types 4.3-10 Male Right angle and 4.3-10 Male Right angle, variable length
Features and benefits
- WARNING: DO NOT MATE WITH 4.1-9.5 DIN
Specifications
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | FSJ1-50A |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Right angle |
| Interface, Connector A | NEX10 Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | A |
| Variable Length | For custom lengths, contact your local ANDREW representative |
Dimensions
| Length | 0 m | 0 ft |
| Nominal Size | 1/4 in |
Logo image
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD Static | -116 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 680–960 MHz | 1.152 | 23.00 |
| 1700–2200 MHz | 1.152 | 23.00 |
| 2200–2700 MHz | 1.152 | 23.00 |
Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | FSJ1-50A |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Right angle |
| Interface, Connector A | NEX10 Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | A |
| Variable Length | For custom lengths, contact your local ANDREW representative |
Dimensions
| Length | 0 m | 0 ft |
| Nominal Size | 1/4 in |
Electrical specifications
| 3rd Order IMD Static | -116 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 680–960 MHz | 1.152 | 23.00 |
| 1700–2200 MHz | 1.152 | 23.00 |
| 2200–2700 MHz | 1.152 | 23.00 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Click on image to enlarge. |
| Click on image to enlarge. |
