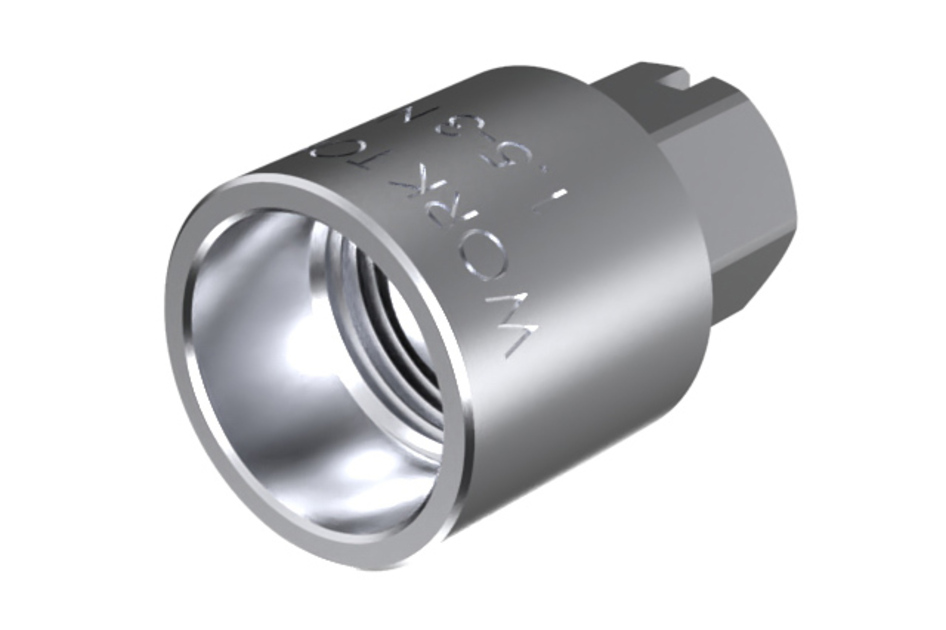

NEX10-CAPKIT
Female End Cap Assembly for Nex10 series, work torque 1.5-3N·M. (When mate with NEX10 Female Connector, use the straight Screwdriver tool and Diemnsion is : 1.2X8.0MM)
Specifications
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
General specifications
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 19.3 mm | 0.760 in |
| Diameter | 12.5 mm | 0.492 in |

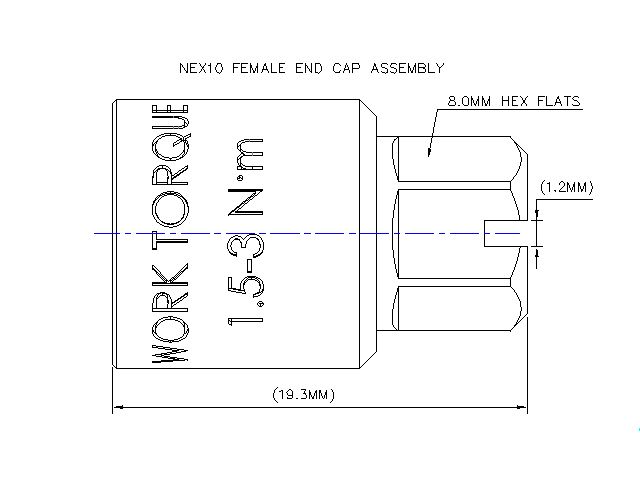

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Brass |
Mechanical specifications
| Coupling Nut Proof Torque | 3 N-m | 26.552 in lb |
| Interface Durability | 50 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 137.160 mm | 5.4 in |
| Width, packed | 154.940 mm | 6.1 in |
| Length, packed | 330.200 mm | 13 in |
| Packaging quantity | 200 |
| Weight, net | 9.54 g | 0.021 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
General specifications
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 19.3 mm | 0.760 in |
| Diameter | 12.5 mm | 0.492 in |
Material specifications
| Material Type | Brass |
Mechanical specifications
| Coupling Nut Proof Torque | 3 N-m | 26.552 in lb |
| Interface Durability | 50 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 137.160 mm | 5.4 in |
| Width, packed | 154.940 mm | 6.1 in |
| Length, packed | 330.200 mm | 13 in |
| Packaging quantity | 200 |
| Weight, net | 9.54 g | 0.021 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
