TA-MLOC4HF
M-LOC Male Multiport Cluster 4 ports to 4.3-10 Female RL Test Adapter
Specifications
Product classification
| Product Type | Adapter |
| Product Brand | HELIAX® |
| Product Series | M-LOC |
General specifications
| Body Style | Straight |
| Inner Contact Plating | Silver |
| Interface | M-LOC Male |
| Interface 2 | 4.3-10 Female |
| Mounting Angle | Straight |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 53.2 mm | 2.094 in |
| Width | 100 mm | 3.937 in |
| Length | 190.3 mm | 7.492 in |

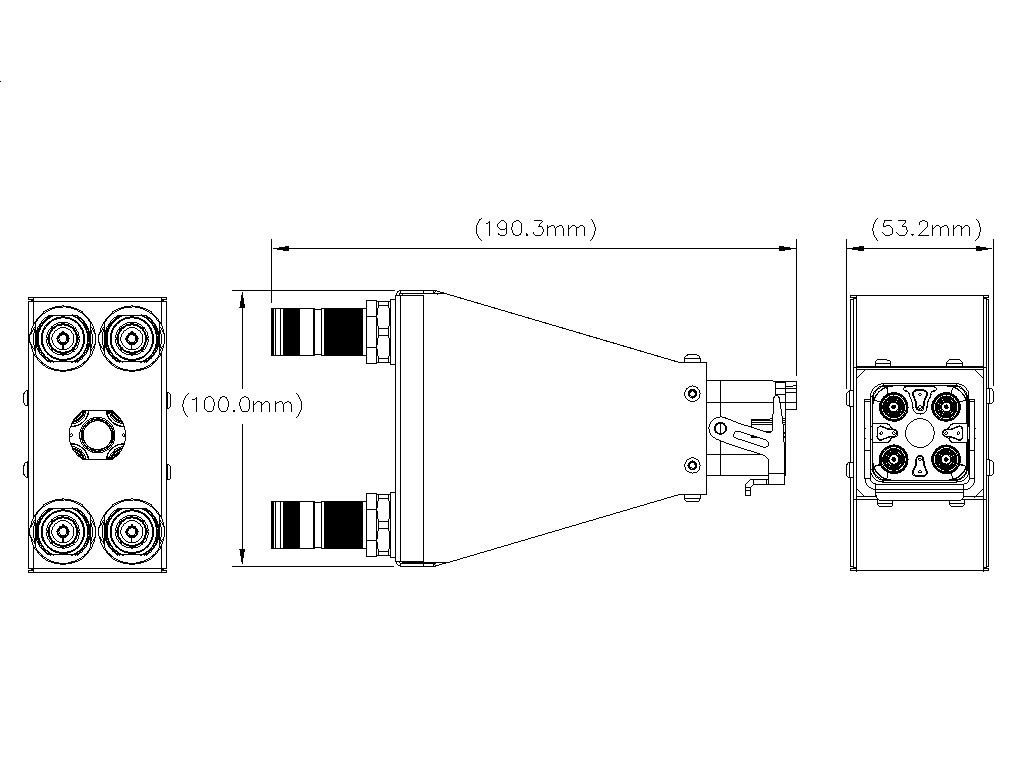

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -119 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Connector Impedance | 50 ohm |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 0–3.8 GHz | 1.106 | 25.96 |
Mechanical specifications
| Interface Durability | 25 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 744.39 g | 1.641 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Adapter |
| Product Brand | HELIAX® |
| Product Series | M-LOC |
General specifications
| Body Style | Straight |
| Inner Contact Plating | Silver |
| Interface | M-LOC Male |
| Interface 2 | 4.3-10 Female |
| Mounting Angle | Straight |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 53.2 mm | 2.094 in |
| Width | 100 mm | 3.937 in |
| Length | 190.3 mm | 7.492 in |
Electrical specifications
| 3rd Order IMD at Frequency | -119 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Connector Impedance | 50 ohm |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 0–3.8 GHz | 1.106 | 25.96 |
Mechanical specifications
| Interface Durability | 25 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 744.39 g | 1.641 lb |

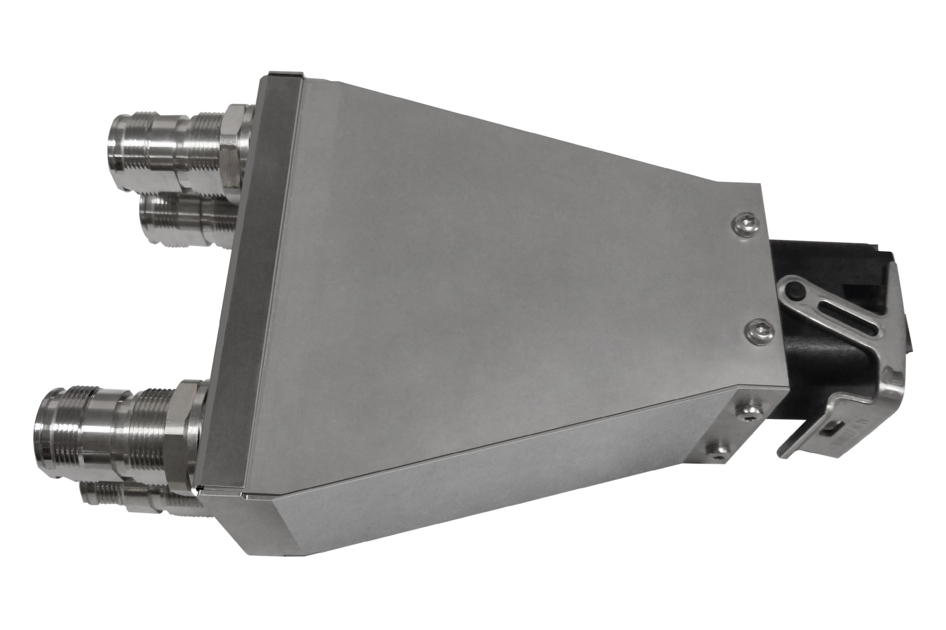

| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
