PWRT-108-L4-GRN
- Available in:
- North America
HELIAX® Single Conductor Power Cable, 8AWG Conductor, LSZH, L4, Green Jacket, Cotton Braid over Insulation, Telcordia GR-347-CORE, IEC including 60674 and 60332, 105 degrees C Dry, 60 degrees C Wet
Specifications
Product classification
| Regional Availability | North America |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Product Series | PWRT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 1 |
| Construction Type | Discrete power cable |
| Jacket Color | Green |
| Jacket Color, singles | Green |
| Outer Shield (Tape) Material | Opaque Mylar Tape |
| Supported Application | Industrial |
Dimensions
| Diameter Over Conductor, singles, specific | 3.89 mm per 41 strands |
| Diameter Over Jacket | 8.510 mm | 0.3350394 in |
| Jacket Thickness | 1.370 mm | 0.05393701 in |
| Conductor Gauge | 8 AWG |
| Conductor Gauge, singles | 8 AWG |

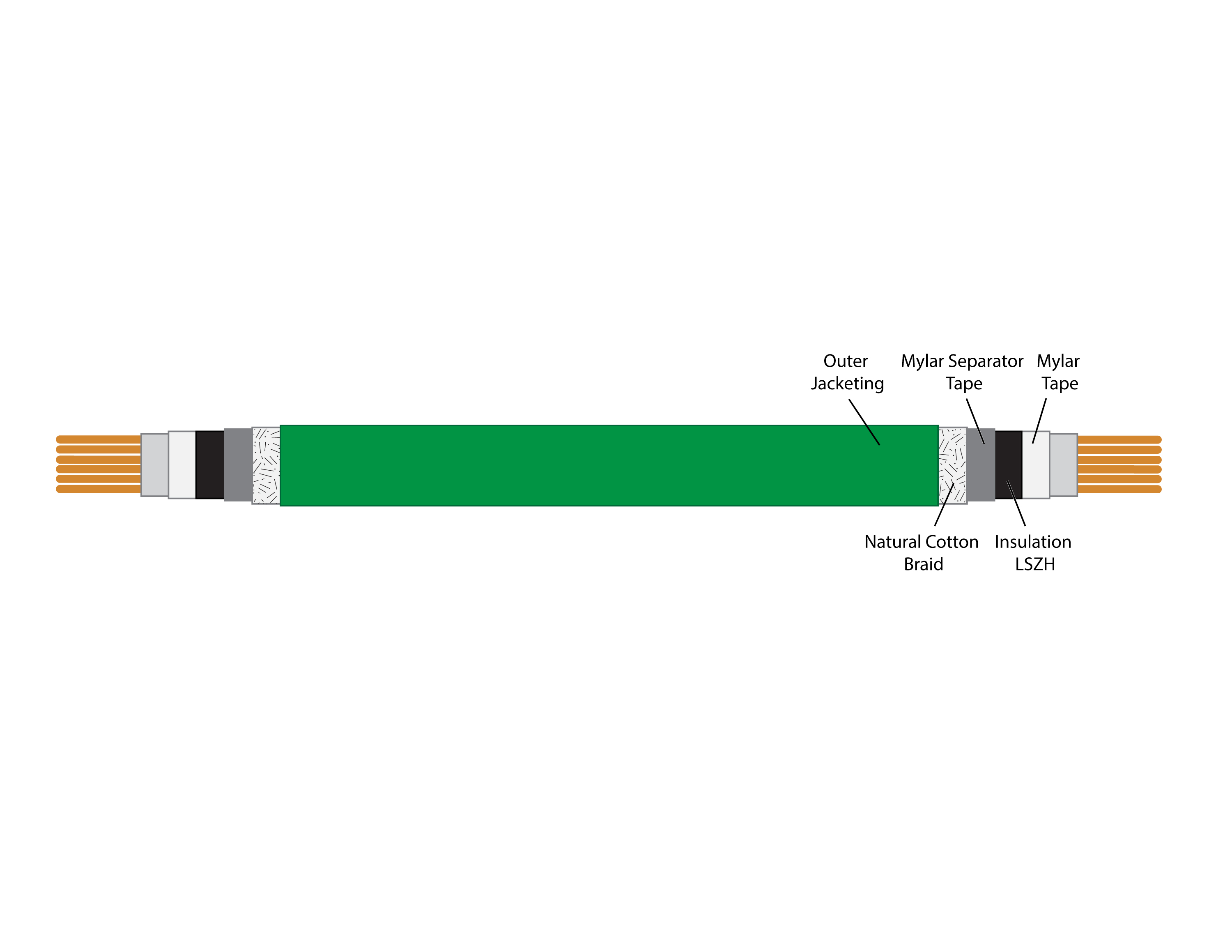

Cross section drawing
| Click on image to enlarge. |
Electrical specifications
| Conductor dc Resistance | 2.230 ohms/km | 0.679703978 ohms/kft |
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| Safety Voltage Rating | 600 V |
Material specifications
| Conductor Material | Tinned copper |
| Insulation Material | Overall natural cotton braid |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Inner Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius, loaded | 68.580 mm | 2.7 in |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
| Flame Test Listing | FT4-ST1 | VW-1 |
| Flame Test Method | UL44 |
| Smoke Test Method | UL44 |
Packaging and weights
| Cable weight | 143.995 kg/km | 96.76 lb/kft |
Product classification
| Regional Availability | North America |
| Product Type | Power cable |
| Product Brand | HELIAX® |
| Product Series | PWRT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 1 |
| Construction Type | Discrete power cable |
| Jacket Color | Green |
| Jacket Color, singles | Green |
| Outer Shield (Tape) Material | Opaque Mylar Tape |
| Supported Application | Industrial |
Dimensions
| Diameter Over Conductor, singles, specific | 3.89 mm per 41 strands |
| Diameter Over Jacket | 8.510 mm | 0.3350394 in |
| Jacket Thickness | 1.370 mm | 0.05393701 in |
| Conductor Gauge | 8 AWG |
| Conductor Gauge, singles | 8 AWG |
Electrical specifications
| Conductor dc Resistance | 2.230 ohms/km | 0.679703978 ohms/kft |
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
| Safety Voltage Rating | 600 V |
Material specifications
| Conductor Material | Tinned copper |
| Insulation Material | Overall natural cotton braid |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Inner Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius, loaded | 68.580 mm | 2.7 in |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
| Flame Test Listing | FT4-ST1 | VW-1 |
| Flame Test Method | UL44 |
| Smoke Test Method | UL44 |
Packaging and weights
| Cable weight | 143.995 kg/km | 96.76 lb/kft |

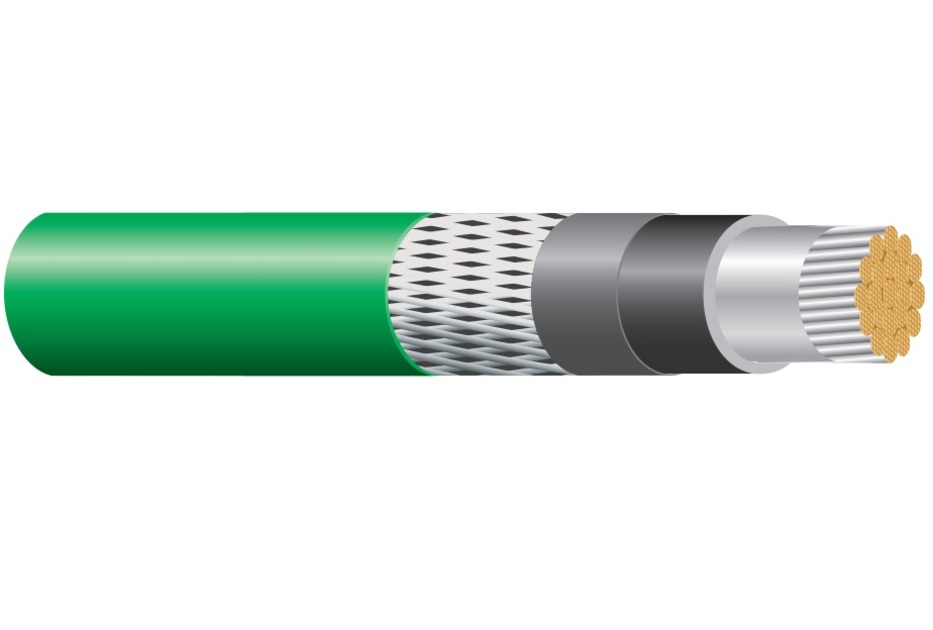

| Click on image to enlarge. |
