TPCA-6-25MM2-3C-GD
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

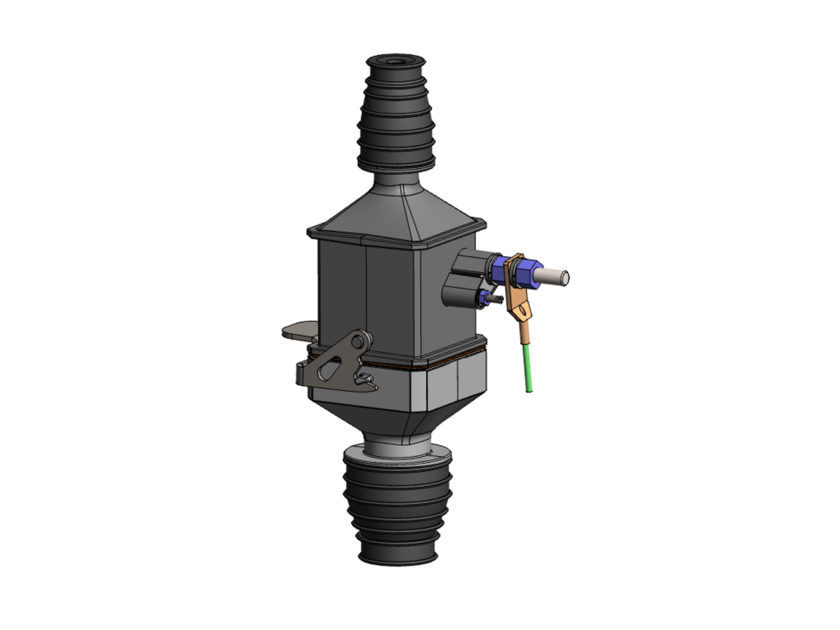

HELIAX® power adaptor, 2 Core + 1 grounding DC Power Cable connection. Input Power Cable conductor size as 6 to 25 mm² and Output Power Cable conductor size as 6 to 10 mm². Drain wire sizes 3 to 8 mm². Rubber boots at both ends providing an IP67 rating.
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power adapter |
| Product Brand | HELIAX® |
Dimensions
| Height | 75.3 mm | 2.965 in |
| Width | 102 mm | 4.016 in |
| Length | 199 mm | 7.835 in |
Electrical specifications
| Voltage Rating | 48 Vdc |
| Withstand Voltage | 300 Vdc @ 60 sec |
Material specifications
| Contact Base Material | Copper alloy |
| Housing Material | PC/ABS |
Mechanical specifications
| Tensile Force | 100 N | 22.481 lbf |
| Connecting Operations, maximum | 6 |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
| Ingress Protection Test Method | IP67 |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power adapter |
| Product Brand | HELIAX® |
Dimensions
| Height | 75.3 mm | 2.965 in |
| Width | 102 mm | 4.016 in |
| Length | 199 mm | 7.835 in |
Electrical specifications
| Voltage Rating | 48 Vdc |
| Withstand Voltage | 300 Vdc @ 60 sec |
Material specifications
| Contact Base Material | Copper alloy |
| Housing Material | PC/ABS |
Mechanical specifications
| Tensile Force | 100 N | 22.481 lbf |
| Connecting Operations, maximum | 6 |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
| Ingress Protection Test Method | IP67 |
