PCA-16-25MM2-2C-HL
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America
HELIAX® power adaptor, 2 Core DC Power Cable connection. Input Power Cable conductor size as 2.5mm2~25mm2 and Output Power Cable conductor size as 2.5mm2~16mm2. Shield contact size as 4~6mm2. Glands at both ends providing a IP67 weatherproof performance
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power adapter |
| Product Brand | HELIAX® |
| Product Series | PCA |
Dimensions
| Width | 45 mm | 1.772 in |
| Length | 140 mm | 5.512 in |
| Cable Outer Diameter | Input end: 20–25 mm | Output end: 10–14 mm |
| Power Contact Size | I/P: 2.5–25 mm2 (copper) | O/P: 2.5–16 mm2 (copper) |
| Shield Contact Size | 4–6 mm² |

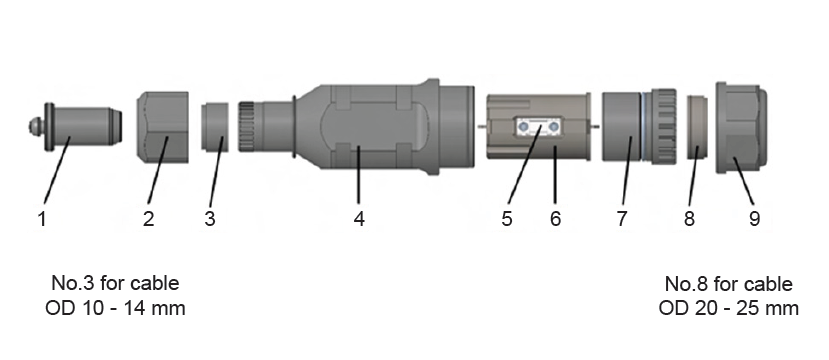

Dimension drawing
| Click on image to enlarge. |
Electrical specifications
| Current Rating, maximum | 70 A |
| Insulation Resistance, minimum | 1000 MOhm |
| Voltage Rating | 48 Vdc |
| Withstand Voltage | 300 Vdc @ 60 sec |
Material specifications
| Contact Base Material | Copper alloy |
| Contact Plating Material | Min 4μm Sn on 0.76μm Ni |
| Housing Material | PA66 | PC/ABS |
Mechanical specifications
| Tensile Force | 50 N | 11.240 lbf |
| Connecting Operations, maximum | 5 |
| Locking Force | 2.5 Nm for all cable glands |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
| Ingress Protection Test Method | IP67 |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power adapter |
| Product Brand | HELIAX® |
| Product Series | PCA |
Dimensions
| Width | 45 mm | 1.772 in |
| Length | 140 mm | 5.512 in |
| Cable Outer Diameter | Input end: 20–25 mm | Output end: 10–14 mm |
| Power Contact Size | I/P: 2.5–25 mm2 (copper) | O/P: 2.5–16 mm2 (copper) |
| Shield Contact Size | 4–6 mm² |
Electrical specifications
| Current Rating, maximum | 70 A |
| Insulation Resistance, minimum | 1000 MOhm |
| Voltage Rating | 48 Vdc |
| Withstand Voltage | 300 Vdc @ 60 sec |
Material specifications
| Contact Base Material | Copper alloy |
| Contact Plating Material | Min 4μm Sn on 0.76μm Ni |
| Housing Material | PA66 | PC/ABS |
Mechanical specifications
| Tensile Force | 50 N | 11.240 lbf |
| Connecting Operations, maximum | 5 |
| Locking Force | 2.5 Nm for all cable glands |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Flammability Rating | UL 94 V-0 |
| Ingress Protection Test Method | IP67 |

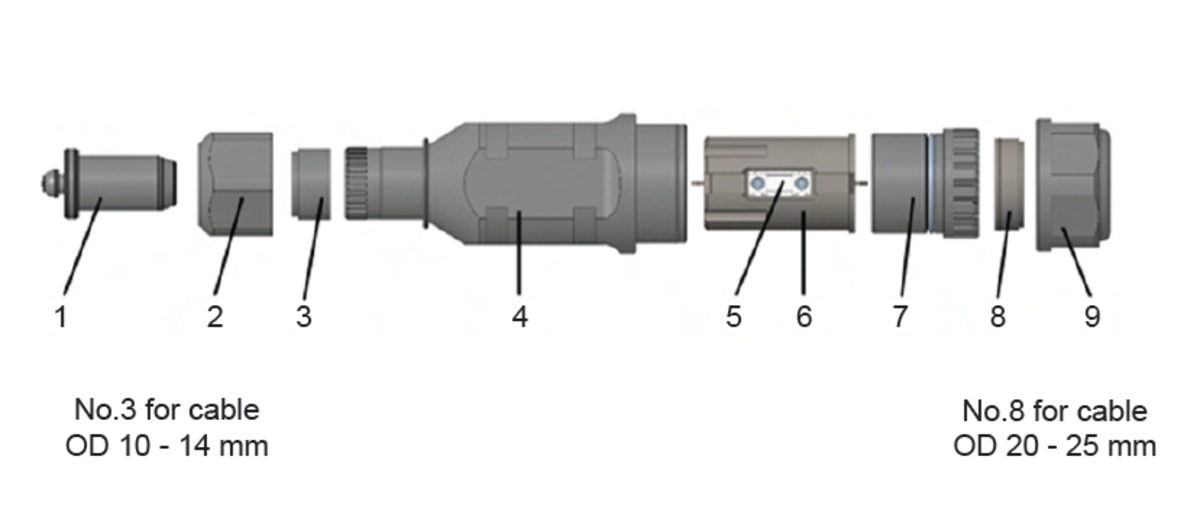

| Click on image to enlarge. |
