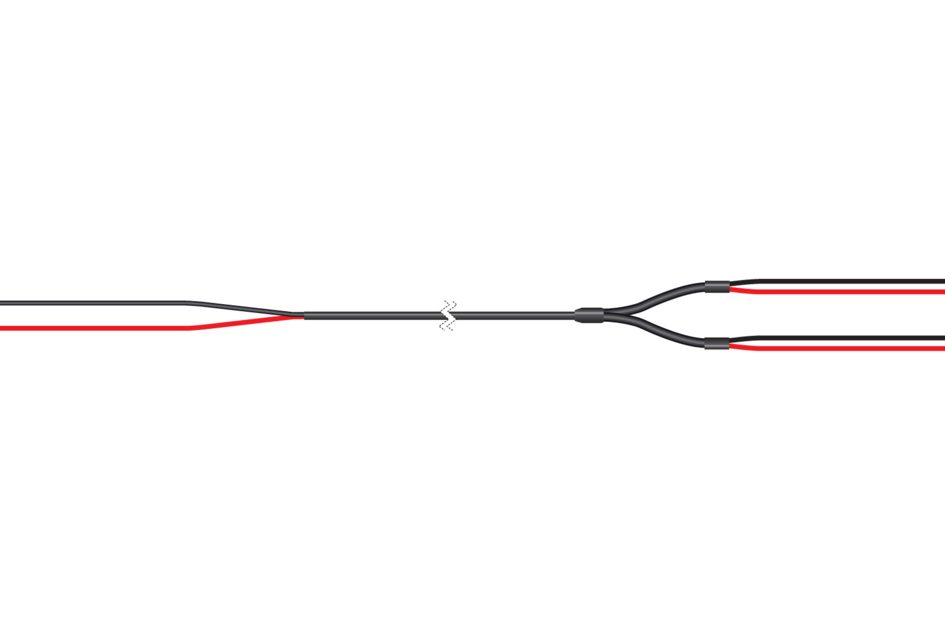

HELIAX® Remote Radio Head Power Y-Cable, OVP Top Enclosure End: one Red and one Black 8 AWG Conductors. RRU end: 2x8 AWG power cords with 1 Red and 1 Black conductors per cord. RRU length 2 feet, OVP length 25 feet
Specifications
Product classification
| Regional Availability | North America |
| Product Type | Power cable assembly |
| Product Series | PWRT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Cable Type | Power |
| Conductors, quantity | 2 |
| Construction Type | Discrete power cable | Non-armored |
| Jacket Color | Black |
| Jacket Color, singles | Black | Red |
| Supported Application | Industrial |
Dimensions
| Cable Length | 8.22970007 m | 27.000 ft |
| Diameter Over Jacket, nominal | 11.430 mm | 0.45 in |
| Conductor Gauge, singles | 8 AWG |
| Outer Shield (Braid) Gauge | 36 AWG |

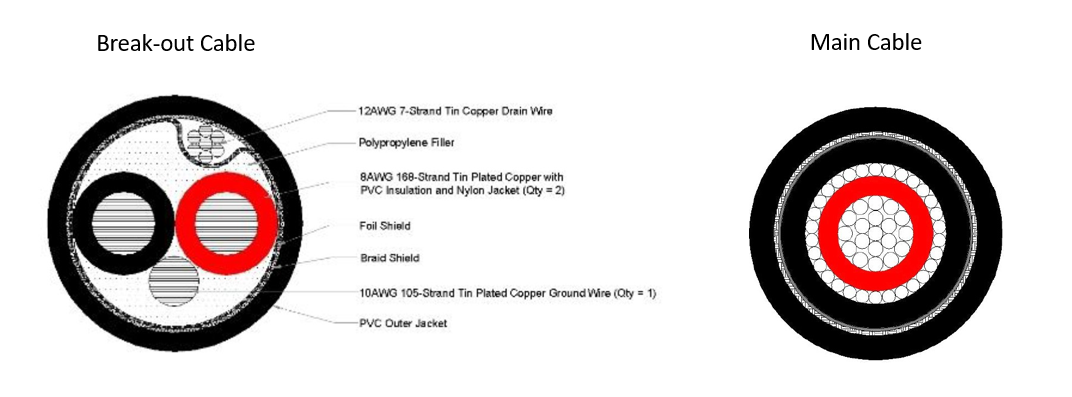

Cross section drawing
| Click on image to enlarge. |
Material specifications
| Conductor Material | Tinned copper |
| Dielectric Material | PVC |
| Drain Wire Material | Tinned copper |
| Filler Material | Polypropylene |
| Ground Wire Material | Tinned copper |
| Insulation Material, singles | PVC |
| Jacket Material | PVC |
| Outer Shield (Braid) Coverage | 65 % |
| Outer Shield (Braid) Material | Tinned copper |
| Outer Shield (Tape) Material | Aluminum/Poly, non-bonded |
Environmental specifications
| Operating Temperature | -40 °C to +90 °C (-40 °F to +194 °F) |
| Environmental Space | UV resistant for outdoor and/or direct burial installations |
| Safety Standard | NEC Article 336 (Type TC) |
Packaging and weights
| Cable weight | 0.432 kg/m | 0.290 lb/ft |
| Weight, net | 4.08 kg | 8.995 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Regional Availability | North America |
| Product Type | Power cable assembly |
| Product Series | PWRT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Cable Type | Power |
| Conductors, quantity | 2 |
| Construction Type | Discrete power cable | Non-armored |
| Jacket Color | Black |
| Jacket Color, singles | Black | Red |
| Supported Application | Industrial |
Dimensions
| Cable Length | 8.22970007 m | 27.000 ft |
| Diameter Over Jacket, nominal | 11.430 mm | 0.45 in |
| Conductor Gauge, singles | 8 AWG |
| Outer Shield (Braid) Gauge | 36 AWG |
Material specifications
| Conductor Material | Tinned copper |
| Dielectric Material | PVC |
| Drain Wire Material | Tinned copper |
| Filler Material | Polypropylene |
| Ground Wire Material | Tinned copper |
| Insulation Material, singles | PVC |
| Jacket Material | PVC |
| Outer Shield (Braid) Coverage | 65 % |
| Outer Shield (Braid) Material | Tinned copper |
| Outer Shield (Tape) Material | Aluminum/Poly, non-bonded |
Environmental specifications
| Operating Temperature | -40 °C to +90 °C (-40 °F to +194 °F) |
| Environmental Space | UV resistant for outdoor and/or direct burial installations |
| Safety Standard | NEC Article 336 (Type TC) |
Packaging and weights
| Cable weight | 0.432 kg/m | 0.290 lb/ft |
| Weight, net | 4.08 kg | 8.995 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
