ODB-24DLC-24PC-HC3
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

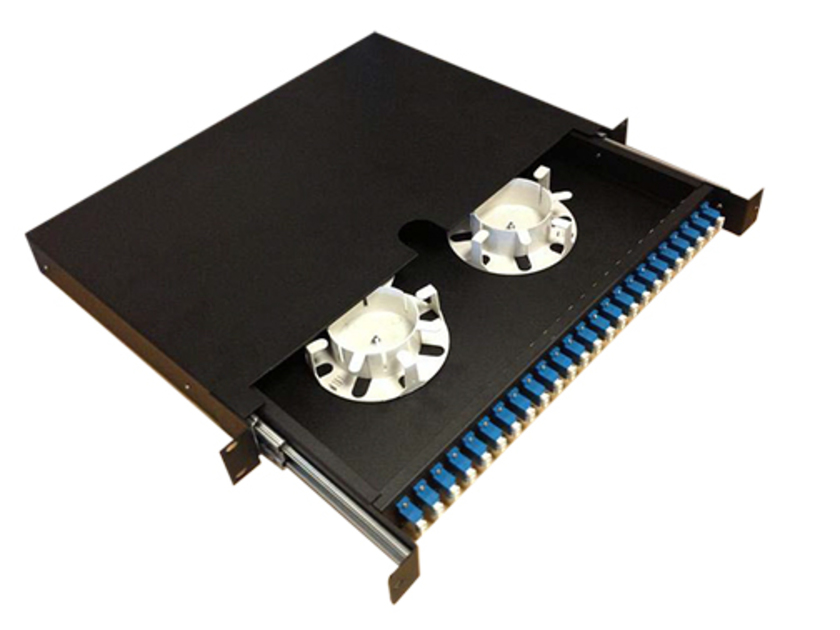

HELIAX® 24-port (48 fiber) patch panel for 19in cabinet, includes sliding Panel, 24 prepopulated singlemode adapters, 24 DLC-DLC single mode patch cords, 2 fiber tie
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Fiber patch panel |
| Product Brand | HELIAX® |
General specifications
| Application | Protects unused fiber fan-outs near the radio equipment |
| Color | Black |
| Interface, front | LC/UPC |
| Pigtails Included, quantity | 24 |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Shelf Movement | Sliding |
| Total Ports, quantity | 24 |
Dimensions
| Height | 43.2 mm | 1.701 in |
| Width | 429 mm | 16.89 in |
| Depth | 307 mm | 12.087 in |
Packaging and weights
| Weight, net | 5.443 kg | 12 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Fiber patch panel |
| Product Brand | HELIAX® |
General specifications
| Application | Protects unused fiber fan-outs near the radio equipment |
| Color | Black |
| Interface, front | LC/UPC |
| Pigtails Included, quantity | 24 |
| Rack Type | EIA 19 in |
| Rack Units | 1 |
| Shelf Movement | Sliding |
| Total Ports, quantity | 24 |
Dimensions
| Height | 43.2 mm | 1.701 in |
| Width | 429 mm | 16.89 in |
| Depth | 307 mm | 12.087 in |
Packaging and weights
| Weight, net | 5.443 kg | 12 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
