PE-6RRU-16
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Europe
- Latin America
- North America

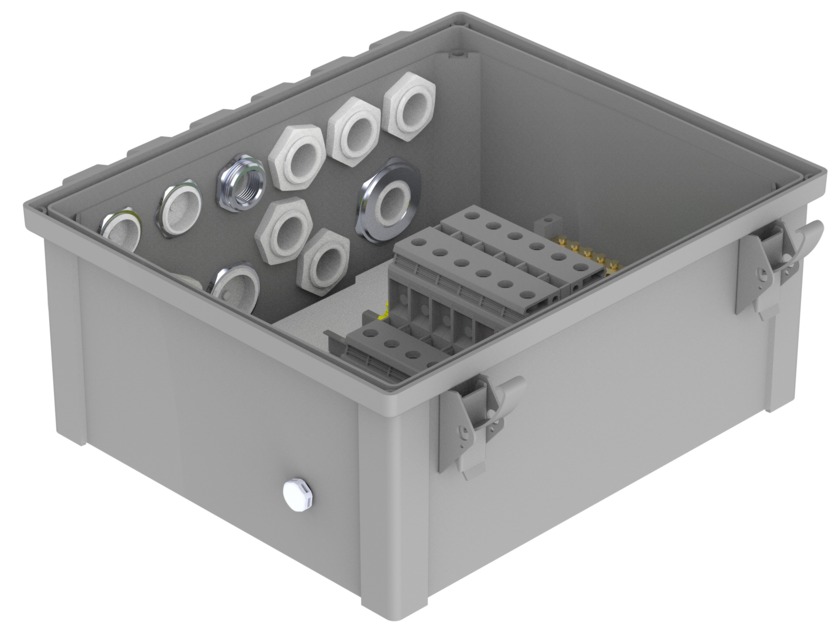

HELIAX® Break Out Power Box for 6 RRU/AAU 1 Power Trunk, 6 Power Jumpers, Grey Terminal Blocks, 2 Grounding blocks
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Europe | Latin America | North America |
| Product Type | Outdoor junction box |
| Product Brand | HELIAX® |
General specifications
| Application | Used as a fiber/power junction box |
| Cable Entry Location | Bottom |
| Cable Entry, quantity, maximum, bottom | 1 |
| Color | Gray |
| Mounting | Pole | Wall |
Dimensions
| Height | 317.5 mm | 12.5 in |
| Width | 266.7 mm | 10.5 in |
| Depth | 152.4 mm | 6 in |
| Jumper Breakout Length, Maximum | 150 mm | 5.906 in |
| Jumper Outlet, Quantity, Maximum | 6 |
| Jumper Outlet Diameter, Minimum | 9 mm | 0.354 in |
| Jumper Outlet Diameter, Maximum | 16 mm | 0.630 in |
| Trunk Entry, Diameter, Minimum | 21 mm | 0.827 in |
| Trunk Entry, Diameter, Maximum | 32 mm | 1.260 in |
| Trunk Entry, Quantity, Maximum | 1 |
Material specifications
| Material Type | High-impact polycarbonate, UV resistant |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Indoor | Outdoor |
| Qualification Standards | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting kit |
| Weight, net | 2.268 kg | 5 lb |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Europe | Latin America | North America |
| Product Type | Outdoor junction box |
| Product Brand | HELIAX® |
General specifications
| Application | Used as a fiber/power junction box |
| Cable Entry Location | Bottom |
| Cable Entry, quantity, maximum, bottom | 1 |
| Color | Gray |
| Mounting | Pole | Wall |
Dimensions
| Height | 317.5 mm | 12.5 in |
| Width | 266.7 mm | 10.5 in |
| Depth | 152.4 mm | 6 in |
| Jumper Breakout Length, Maximum | 150 mm | 5.906 in |
| Jumper Outlet, Quantity, Maximum | 6 |
| Jumper Outlet Diameter, Minimum | 9 mm | 0.354 in |
| Jumper Outlet Diameter, Maximum | 16 mm | 0.630 in |
| Trunk Entry, Diameter, Minimum | 21 mm | 0.827 in |
| Trunk Entry, Diameter, Maximum | 32 mm | 1.260 in |
| Trunk Entry, Quantity, Maximum | 1 |
Material specifications
| Material Type | High-impact polycarbonate, UV resistant |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Indoor | Outdoor |
| Qualification Standards | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting kit |
| Weight, net | 2.268 kg | 5 lb |
