PE-3RRU-3S
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

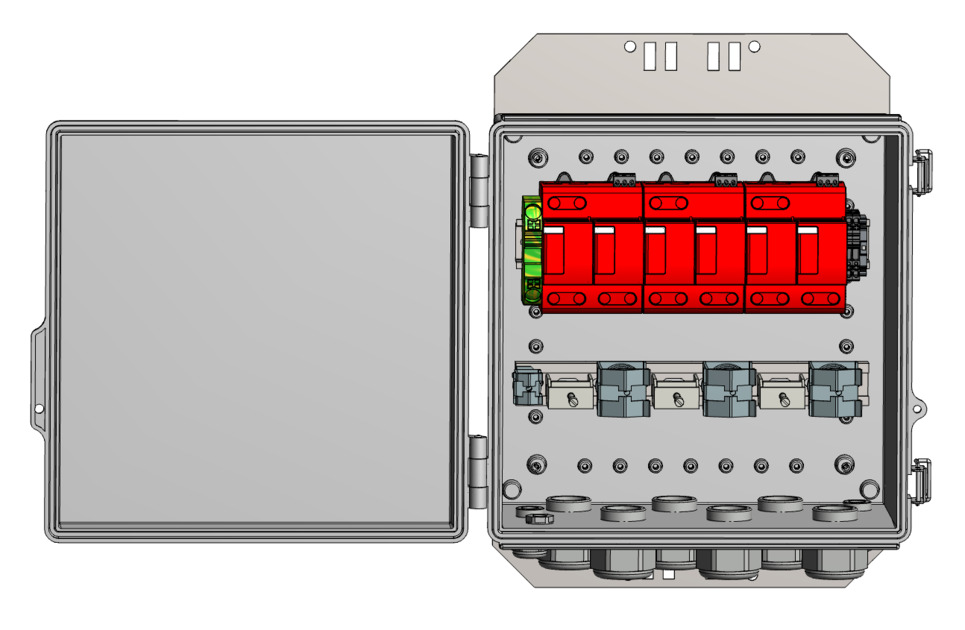

HELIAX® PTTA Enclosure with 3 SPD Class I for 3 RRU
Features and benefits
Power enclosure supporting three RRUs with three input cables, each of them featuring an integrated DEHN NG 2P 60 FM surge protective device (SPD) compliant with EN 61643-11, Class I (up to 50 kA Lightning Impulse current). Each SPD includes an alarm for remote inspection.
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Outdoor junction box |
General specifications
| Application | Used as a fiber/power junction box |
| Cable Clamps, quantity | 8 |
| Cable Entry Location | Bottom |
| Color | Gray |
| Front Door Type | Double hinged |
| Mounting | Pipe, 44–114 mm (1.75–4.5 in) OD | Wall |
Dimensions
| Height | 394.000 mm | 15.5118 in |
| Width | 329.000 mm | 12.95275 in |
| Depth | 182.000 mm | 7.16535 in |
| Trunk Entry, Diameter, Minimum | 12 mm | 0.472 in |
| Trunk Entry, Diameter, Maximum | 25 mm | 0.984 in |
| Trunk Entry, Quantity, Maximum | 1 |
| Cable Entry Alarm/Ground Gland Size, maximum | 12 mm | 0.472 in |
| Cable Entry Alarm/Ground Gland Size, minimum | 6 mm | 0.236 in |
| Cable Entry Power Gland Size, maximum | 25 mm | 0.984 in |
| Cable Entry Power Gland Size, minimum | 12 mm | 0.472 in |
Electrical specifications
| Alarm Interface | Wire-wrap pins |
| Voltage | -48 Vdc |
Material specifications
| Material Type | High-impact polycarbonate, UV resistant |
Environmental specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Environmental Space | Indoor | Outdoor |
Packaging and weights
| Included | Mounting kit |
| Weight, net | 3.500 kg | 7.71618 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
