HSG-SCF12

Base product: HSG-ADAPTER-SERIES

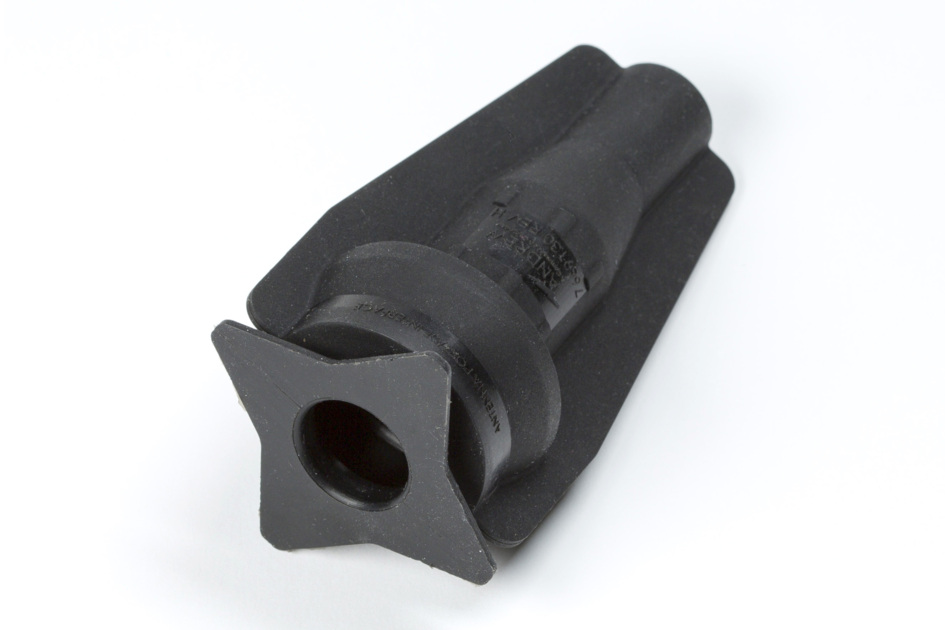

HELIAX® SureGuard® Boot for 1/2 in jumpers to antennas or devices

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Features and benefits
  • If there are threads along the entire device port length, the HELIAX® SureGuard weatherproofing solutions will only seal properly if the HSG-M29-ADPT adapter is installed on the device port

Product classification

Product Type Weatherproofing boot
Product Brand HELIAX® | SureGuard®
Ordering Note ANDREW® non-standard product

General specifications

Application Provides additional moisture seal for cable connections
Applications per Kit One 1/2 in to antenna or device connection
Color Black

Dimensions

Width 55 mm | 2.165 in
Length 84 mm | 3.307 in
Cable Diameter for Seal, maximum 14 mm | 0.551 in
Cable Diameter for Seal, minimum 13.5 mm | 0.531 in
Inner Diameter 11.3 mm | 0.445 in
Nominal Size 1/2 in

Material specifications

Material Type Silicone rubber

Environmental specifications

Installation temperature -40 °C to +65 °C (-40 °F to +149 °F)
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
UV Resistance Test Method ASTM G154-12a
UV Resistance, minimum with no degradation ≥1000 hours
Weather Resistance Test Method IEC 60068-2-11 | IEC 60529:2001, IP68

Packaging and weights

Height, packed 55 mm | 2.165 in
Width, packed 120 mm | 4.724 in
Length, packed 180 mm | 7.087 in
Packaging quantity 1
Weight, gross 21.5 g | 0.047 lb

Product classification

Product Type Weatherproofing boot
Product Brand HELIAX® | SureGuard®
Ordering Note ANDREW® non-standard product

General specifications

Application Provides additional moisture seal for cable connections
Applications per Kit One 1/2 in to antenna or device connection
Color Black

Dimensions

Width 55 mm | 2.165 in
Length 84 mm | 3.307 in
Cable Diameter for Seal, maximum 14 mm | 0.551 in
Cable Diameter for Seal, minimum 13.5 mm | 0.531 in
Inner Diameter 11.3 mm | 0.445 in
Nominal Size 1/2 in

Material specifications

Material Type Silicone rubber

Environmental specifications

Installation temperature -40 °C to +65 °C (-40 °F to +149 °F)
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature -55 °C to +85 °C (-67 °F to +185 °F)
UV Resistance Test Method ASTM G154-12a
UV Resistance, minimum with no degradation ≥1000 hours
Weather Resistance Test Method IEC 60068-2-11 | IEC 60529:2001, IP68

Packaging and weights

Height, packed 55 mm | 2.165 in
Width, packed 120 mm | 4.724 in
Length, packed 180 mm | 7.087 in
Packaging quantity 1
Weight, gross 21.5 g | 0.047 lb
