FA-FWS-E-1C
Base product: FA-SERIES-SHROUD-BOOTS

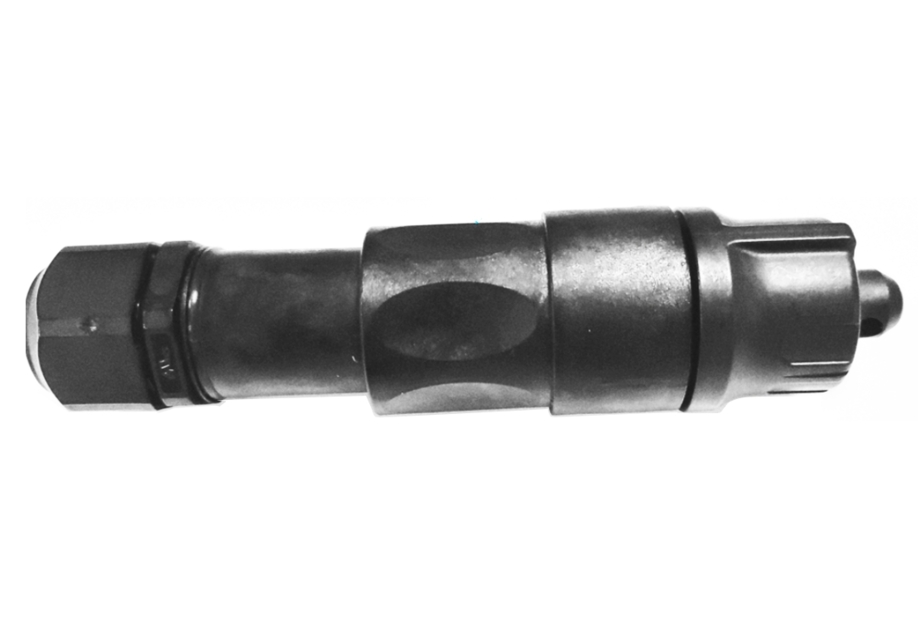

HELIAX® Weatherproofing Shroud Boot, protection for fiber connectors from dust and water for RRUs and FTTA connectivity, compatible with Ericsson fiber interfaces, UL94 V0, PPS material, dust cap included
Specifications
Product classification
| Product Type | Weatherproofing shroud |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Application | Provides moisture seal for fiber connections |
| Color | Black |
Dimensions
| Width | 35 mm | 1.378 in |
| Length | 104 mm | 4.094 in |
Material specifications
| Material Type | Engineered plastic |
Environmental specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Weather Resistance Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Dust cap |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Weatherproofing shroud |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Application | Provides moisture seal for fiber connections |
| Color | Black |
Dimensions
| Width | 35 mm | 1.378 in |
| Length | 104 mm | 4.094 in |
Material specifications
| Material Type | Engineered plastic |
Environmental specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Weather Resistance Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Dust cap |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
