MTC9313613

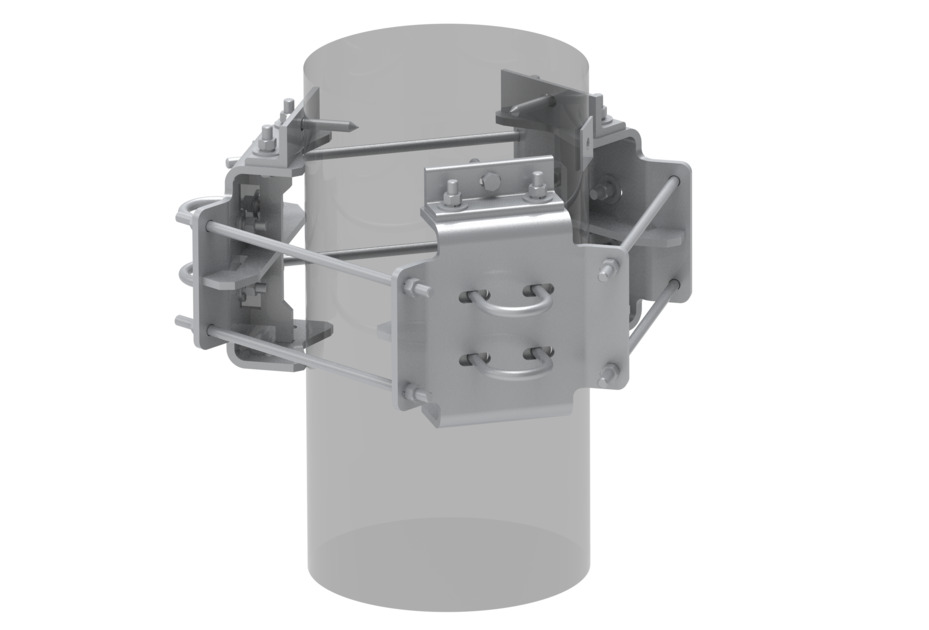

Three Sector Ring Mount for Wood Poles 6" to 13" OD - includes U-Bolts for 2-3/8" Pipe (Pipe not included)
Specifications
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Wood pole |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Height | 299.720 mm | 11.8 in |
| Mounting Diameter, maximum | 330.200 mm | 13 in |
| Mounting Diameter, minimum | 152.400 mm | 6 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 27.515 kg | 60.66 lb |
Product classification
| Product Type | Universal ring mount |
General specifications
| Mounting | Wood pole |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Height | 299.720 mm | 11.8 in |
| Mounting Diameter, maximum | 330.200 mm | 13 in |
| Mounting Diameter, minimum | 152.400 mm | 6 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Packaging and weights
| Included | Hardware | Mount |
| Packaging quantity | 1 |
| Weight, net | 27.515 kg | 60.66 lb |
