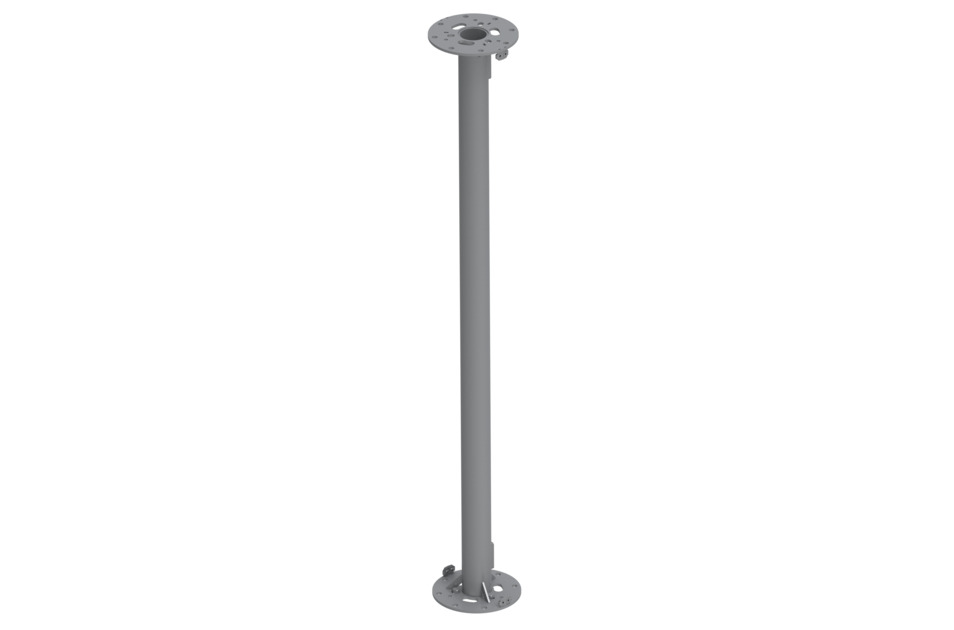

860685489 | 7FT SPOOL FOR 12.75” ANDREW MID CELL POLES
7FT TALL SPOOL FOR 12.75” ANDREW MID CELL POLES FOR ACTIVE AND PASSIVE PANEL ANTENNA OR RRU MOUNTING
Product variants
Configure and display product variants of 860685489 | 7FT SPOOL FOR 12.75” ANDREW MID CELL POLES by selecting options
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
| Part Number | Spool Color | ||
|---|---|---|---|
| No configured items found. | |||
Features and benefits
Mounts directly to ANDREW 12.75" OD poles (860678542-x40) with no additional mounting materials.
Center mast is 4" OD
Center mast is 4" OD
Specifications
Product classification
| Product Type | 5G/mmWave |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | Panel Antenna | mmWave active antennas |
| Antenna Compatibility, Other Vendors | mmWave active antennas |
| Antennas Included | None |
| Color | Black | Other RAL-colors available at additional cost |
| Color Options | Brown (RAL 8014) | Green (RAL 6005) | Light Gray (RAL 7035) | White (RAL 9010) |
| Radio Compatibility, Ericsson | 1281 | 6701 | 6705 |
| Radio Compatibility, Nokia | AEUB | AEWB | AEWD/AEWE |
| Radio Compatibility Samsung | AT1K01 | AT1K02 | AT1K0X |
| Radios Included | None |
Dimensions
| Height | 2133.600 mm | 84 in |
| Width | 304.800 mm | 12 in |
| Mounting Bolt Circle Diameter | 203.200 mm | 8 in |
Material specifications
| Finish Aluminum | Chromate |
| Finish Concealment Covers | Powder coated |
| Material Type | Steel |
Packaging and weights
| Weight (unloaded) | 24.208 kg | 53.37 lb |
Product classification
| Product Type | 5G/mmWave |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | Panel Antenna | mmWave active antennas |
| Antenna Compatibility, Other Vendors | mmWave active antennas |
| Antennas Included | None |
| Color | Black | Other RAL-colors available at additional cost |
| Color Options | Brown (RAL 8014) | Green (RAL 6005) | Light Gray (RAL 7035) | White (RAL 9010) |
| Radio Compatibility, Ericsson | 1281 | 6701 | 6705 |
| Radio Compatibility, Nokia | AEUB | AEWB | AEWD/AEWE |
| Radio Compatibility Samsung | AT1K01 | AT1K02 | AT1K0X |
| Radios Included | None |
Dimensions
| Height | 2133.600 mm | 84 in |
| Width | 304.800 mm | 12 in |
| Mounting Bolt Circle Diameter | 203.200 mm | 8 in |
Material specifications
| Finish Aluminum | Chromate |
| Finish Concealment Covers | Powder coated |
| Material Type | Steel |
Packaging and weights
| Weight (unloaded) | 24.208 kg | 53.37 lb |
