860658566 | Round Straight 10.75" Multiple Lum. Mounting Point
10.75" diameter pole 37' tall that accomodates Small Cell equipment and Smart City devices with multiple luminaire mounting elevations
Product variants
Configure and display product variants of 860658566 | Round Straight 10.75" Multiple Lum. Mounting Point by selecting options
Your web browser (Internet Explorer 11 or lower) is out of date and the functions below will not work with Internet Explorer.
Update your browser for more security, speed, functionality and experience on this site.
| Part Number | Pole Color | Pole Height | ||
|---|---|---|---|---|
| No configured items found. | ||||
Features and benefits
Metal pole that supports a variety of installation methods such as poured concrete, embedded pole, pre-cast, and helical foundations
Configurable color
Foundation Kit Ordered Separately
Configurable color
Foundation Kit Ordered Separately
Specifications
Product classification
| Product Type | Standard poles |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Color | Galvanized | Other RAL-colors available at additional cost |
| Color Options | Black (RAL 9005) | Brown (RAL 8014) | Federal Park Brown | Green (RAL 6005) | Light Gray (RAL 7035) | White (RAL 9010) |
| Compatible Foundation Type | Embedded Pole | Embedded with Foam | Helical Anchor | Poured Concrete | Pre-Cast Concrete | Split Helical Anchors |
| Compatible Smart Devices | Cameras | Digital Signage | Emergency Call Station | Environmental Monitoring | Security Lighting | WIFI |
Dimensions
| Pole Height Options | 11.278 m | 37 ft |
| Width | 273.050 mm | 10.75 in |
| Luminaire Mount Height | 8.534 m | 28 ft | 10.058 m | 33 ft | 10.973 m | 36 ft |
| Mounting Bolt Circle Diameter | 406.400 mm | 16 in |

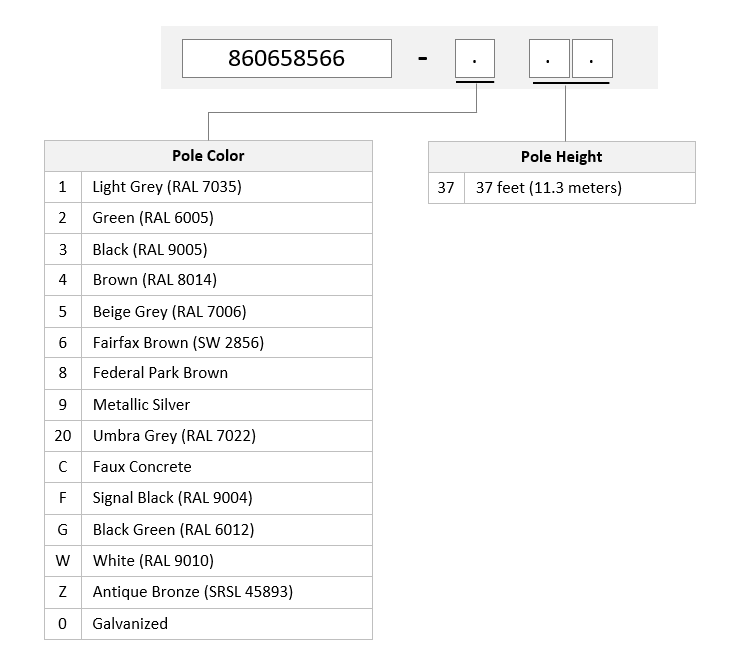

Ordering tree
| Click on image to enlarge. |
Material specifications
| Material Type | Galvanized steel |
Product classification
| Product Type | Standard poles |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Color | Galvanized | Other RAL-colors available at additional cost |
| Color Options | Black (RAL 9005) | Brown (RAL 8014) | Federal Park Brown | Green (RAL 6005) | Light Gray (RAL 7035) | White (RAL 9010) |
| Compatible Foundation Type | Embedded Pole | Embedded with Foam | Helical Anchor | Poured Concrete | Pre-Cast Concrete | Split Helical Anchors |
| Compatible Smart Devices | Cameras | Digital Signage | Emergency Call Station | Environmental Monitoring | Security Lighting | WIFI |
Dimensions
| Pole Height Options | 11.278 m | 37 ft |
| Width | 273.050 mm | 10.75 in |
| Luminaire Mount Height | 8.534 m | 28 ft | 10.058 m | 33 ft | 10.973 m | 36 ft |
| Mounting Bolt Circle Diameter | 406.400 mm | 16 in |
Material specifications
| Material Type | Galvanized steel |
