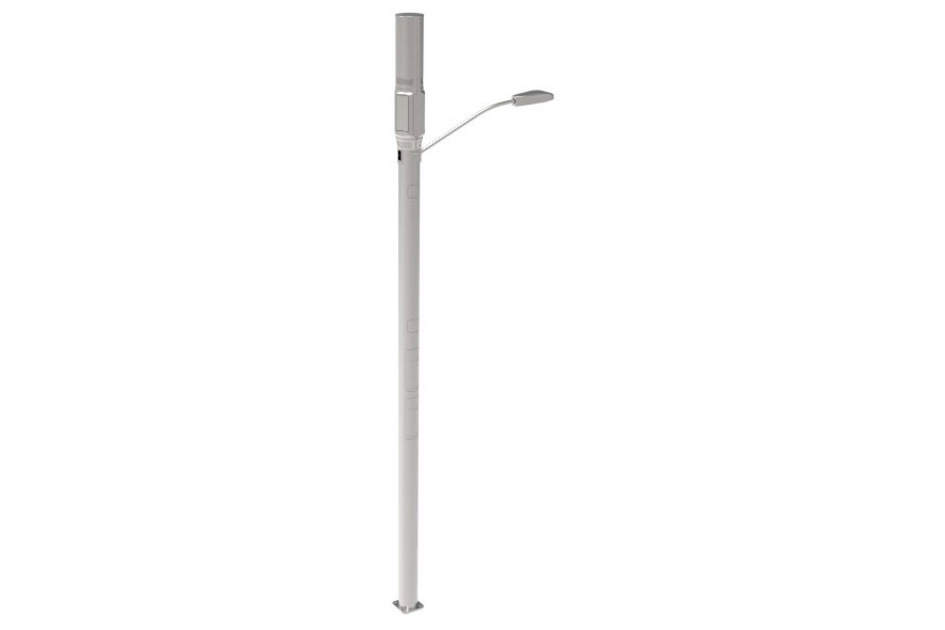

760252001 | 12" 4G and mmWave Concealed Integrated Pole

Straight 12inch diameter, Integrated 4G/5G capable, Concealment Pole, to house and conceal MMW and four low-power radios and other wireless infrastructure equipment inside pole modules.

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Features and benefits

-12.75" Diameter Shaft -5G / mmWaveRadios concealed in the top of the pole under the 4G -4G Antenna directly above the mmWave -Alternate elevations and configurations available -Accommodates Ericsson and Samsung Radios

Available After Market Kits, ordered separately:
-860668762- AMK-001 for mounting Ericsson 4435 Radio

ANDREW Cap H Requires additional Radio Module, ordered separately:
-MTM1029-2000-xx Cap H Radio Module for 12” Integrated Poles

Includes everything needed for a low-power 4G/5G outdoor small cell site

Specifications

Product classification

Product Type	Integrated pole
Product Brand	Metro Cell
Ordering Note	ANDREW® standard product with terms
Warranty	One year

General specifications

Antenna Compatibility, ANDREW	ANDREW Canister Antennas
Antenna Compatibility, Other Vendors	ACE \| AMPHENOL \| GALTRONICS \| GAMMA NU \| JMA \| KATHREIN \| KMW \| ROSENBERGER \| mmWave active antennas
Antennas Included	None
Color	Light Gray (RAL 7035)
Color Options	Beige-Grey (RAL 7006) \| Black (RAL 9005) \| Black Green (RAL 6012) \| Brown (RAL 8014) \| Faux Concrete \| Green (RAL 6005) \| Metallic Silver \| White (RAL 9010)
Compatible Foundation Type	Poured Concrete \| Pre-Cast Concrete
Compatible Smart Devices	Cameras \| Digital Signage \| Emergency Call Station \| Environmental Monitoring \| Security Lighting \| WIFI
Cooling	Passive Cooling
Radio Compatibility, ANDREW	CAP H
Radio Compatibility, Ericsson	1281 \| 220x \| 440x \| 4435 \| 6701
Radio Compatibility Samsung	AT1K01 \| AT1K02 \| RT2201-46A \| RT4401-48A
Radios Included	None

Dimensions

Pole Height Options	6.096 m \| 20 ft \| 7.62 m \| 25 ft \| 9.144 m \| 30 ft \| 9.754 m \| 32 ft \| 10.668 m \| 35 ft \| 12.192 m \| 40 ft
Depth	323.850 mm \| 12.75 in
Depth Note	Round
Pole Diameter	325.12 mm \| 12.8 in

Electrical specifications

Power/Fiber Input

AC load center with OVP and disconnect

Material specifications

Finish Aluminum	Chromate
Finish Concealment Covers	Powder coated
Material Type	Galvanized steel

Environmental specifications

Thermal Compliance

GR-487
