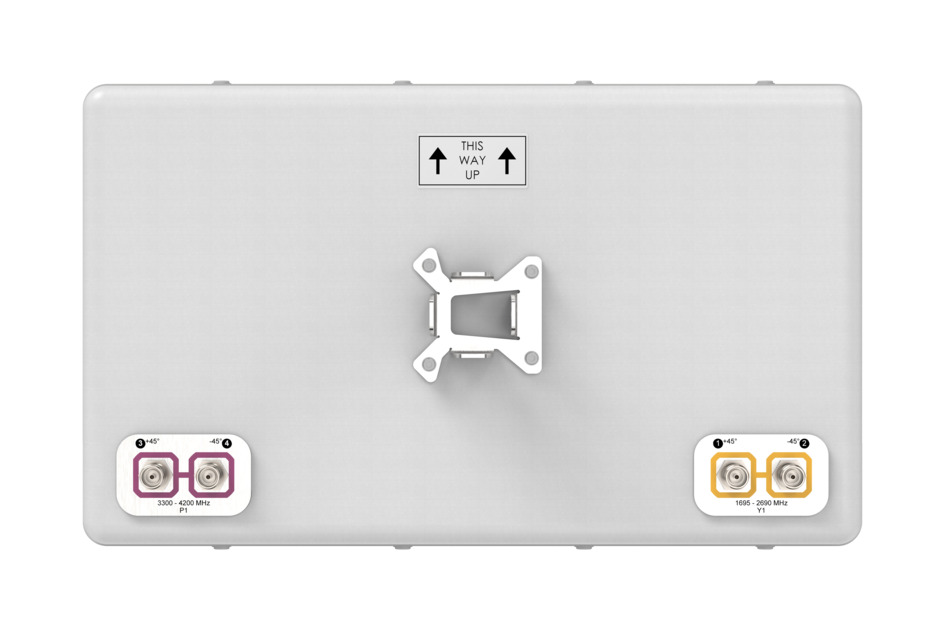

VS-20T-F0

4-port Venue Antenna, 2x 1695-2690 and 2x 3300-4200 MHz, 20° HPBW, Fixed Tilt

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Optimized for high-capacity, high-throughput environments
  • 20° Azimuth and 20° Elevation Beamwidth
  • Novel array technology delivering extremely low side lobes

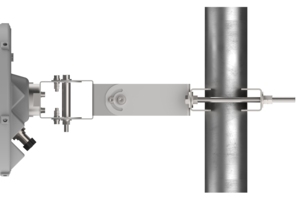

  • Mount kit with Azimuth and Elevation tilt (AZ: +/- 50°, EL: 0 - 70° downtilt)

General specifications

Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Rear
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 2
RF Connector Quantity, total 4

Dimensions

Width 643 mm | 25.315 in
Depth 95 mm | 3.740 in
Length 381 mm | 15.000 in
Net Weight, without mounting kit 5.6 kg | 12.346 lb

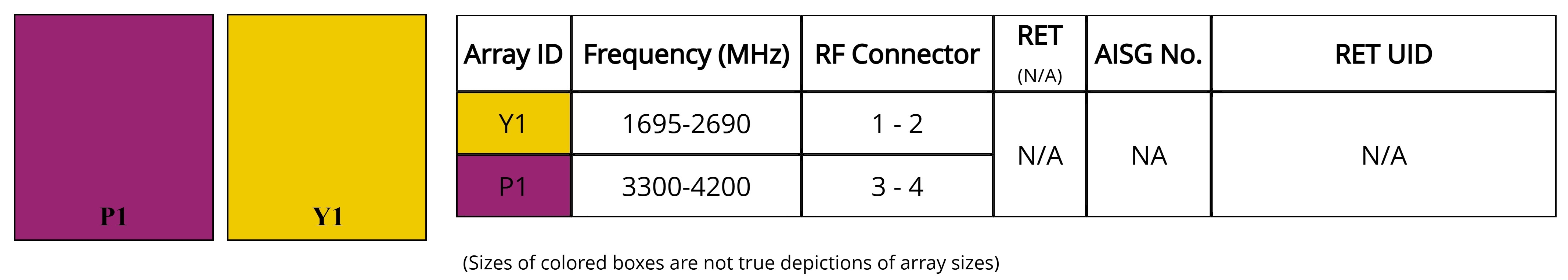

Array layout

Click on image to enlarge.

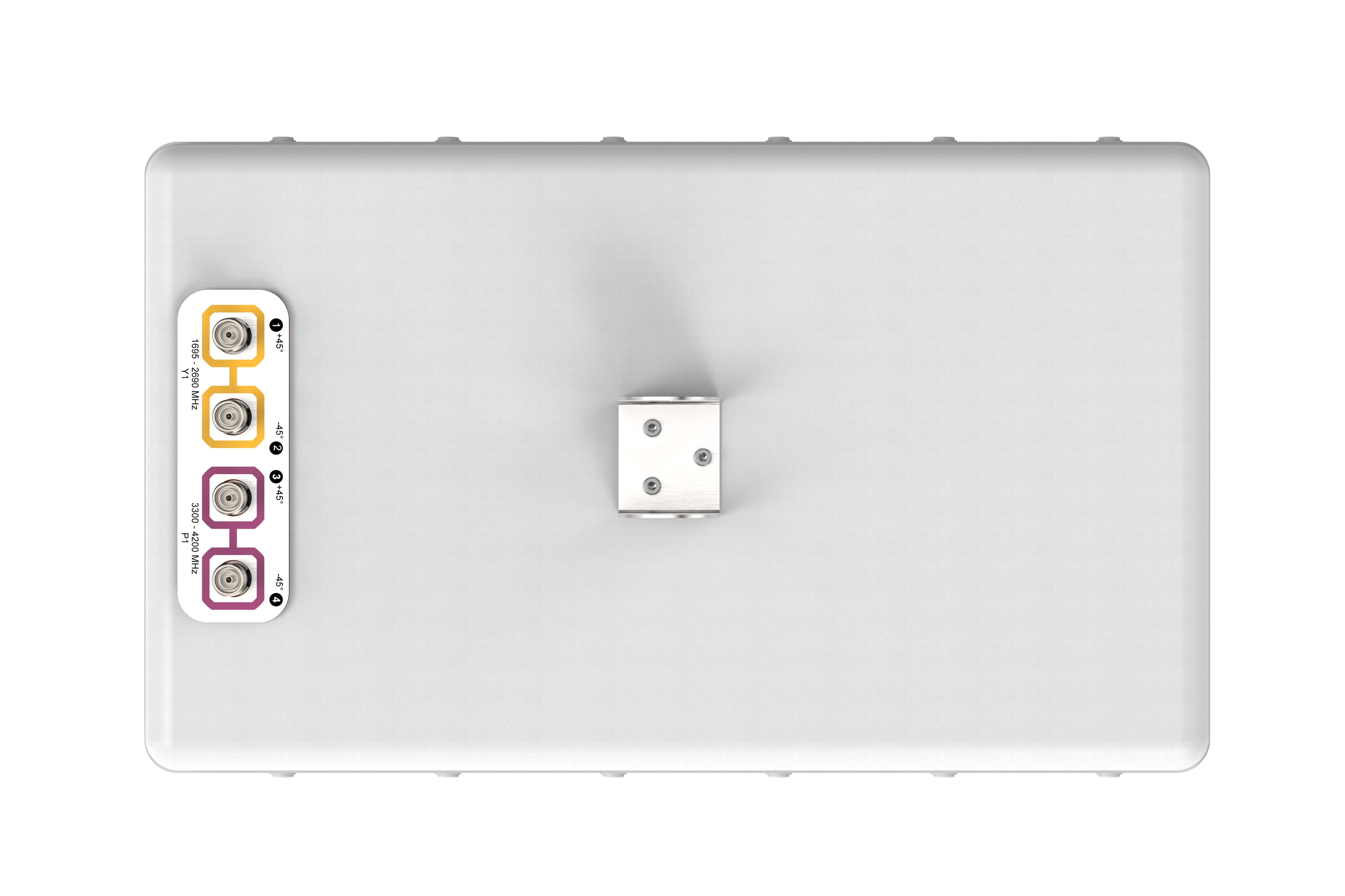

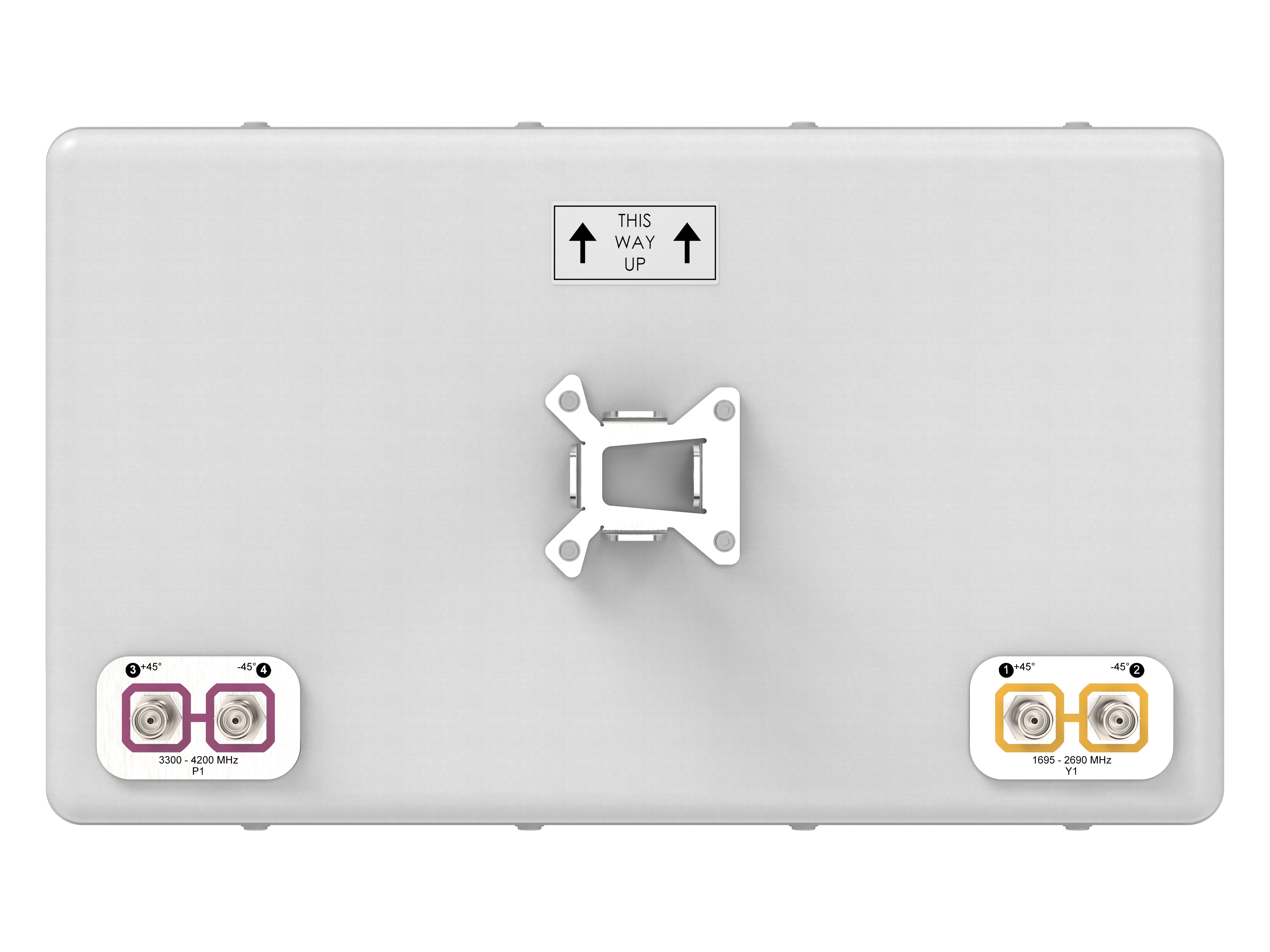

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 1695 – 2690 MHz | 3300 – 4200 MHz
Polarization ±45°

Electrical specifications

Y1 Y1 Y1 Y1 Y1 P1 P1 P1
Frequency Band, MHz 1695–1880 1850–1990 1920–2180 2300–2400 2400–2690 3300–3550 3550–3700 3700–4200
RF Port 1,2 1,2 1,2 1,2 1,2 3,4 3,4 3,4
Gain, dBi 16.5 17.1 17.8 18.7 19.0 18.2 18.8 18.9
Beamwidth, Horizontal, degrees 25 24 23 20 18 21 19 19
Beamwidth, Vertical, degrees 24 24 22 19 18 22 21 19
Beam Tilt, degrees 0 0 0 0 0 0 0 0
USLS (First Lobe), dB 22 22 22 22 22 22 22 22
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 30 30 30 30 30 30 30 30
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port, maximum, watts 150 150 150 150 150 80 80 80

Mechanical specifications

Wind Loading @ Velocity, frontal 311.0 N @ 150 km/h (69.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 95.0 N @ 150 km/h (21.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 311.0 N @ 150 km/h (69.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 910 mm | 35.827 in
Depth, packed 210 mm | 8.268 in
Length, packed 480 mm | 18.898 in
Weight, gross 11 kg | 24.251 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Rear
RF Connector Quantity, high band 2
RF Connector Quantity, mid band 2
RF Connector Quantity, total 4

Dimensions

Width 643 mm | 25.315 in
Depth 95 mm | 3.740 in
Length 381 mm | 15.000 in
Net Weight, without mounting kit 5.6 kg | 12.346 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 1695 – 2690 MHz | 3300 – 4200 MHz
Polarization ±45°

Electrical specifications

Y1 Y1 Y1 Y1 Y1 P1 P1 P1
Frequency Band, MHz 1695–1880 1850–1990 1920–2180 2300–2400 2400–2690 3300–3550 3550–3700 3700–4200
RF Port 1,2 1,2 1,2 1,2 1,2 3,4 3,4 3,4
Gain, dBi 16.5 17.1 17.8 18.7 19.0 18.2 18.8 18.9
Beamwidth, Horizontal, degrees 25 24 23 20 18 21 19 19
Beamwidth, Vertical, degrees 24 24 22 19 18 22 21 19
Beam Tilt, degrees 0 0 0 0 0 0 0 0
USLS (First Lobe), dB 22 22 22 22 22 22 22 22
Front-to-Back Ratio, Copolarization 180° ± 30°, dB 30 30 30 30 30 30 30 30
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145 -145 -145
Input Power per Port, maximum, watts 150 150 150 150 150 80 80 80

Mechanical specifications

Wind Loading @ Velocity, frontal 311.0 N @ 150 km/h (69.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 95.0 N @ 150 km/h (21.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 311.0 N @ 150 km/h (69.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 910 mm | 35.827 in
Depth, packed 210 mm | 8.268 in
Length, packed 480 mm | 18.898 in
Weight, gross 11 kg | 24.251 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
