V4-360S-F2
8-port small cell antenna, 8x 1695–2690MHz, 360° Horizontal Beamwidth, fixed tilt.
Features and benefits
- Broadband Mid Band arrays (AWS/PCS/WCS/Band 41) with 4T4R (4X MIMO) capability
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Dimensions
| Width | 370 mm | 14.567 in |
| Depth | 370 mm | 14.567 in |
| Length | 610 mm | 24.016 in |
| Net Weight, antenna only | 14.8 kg | 32.628 lb |
Port configuration

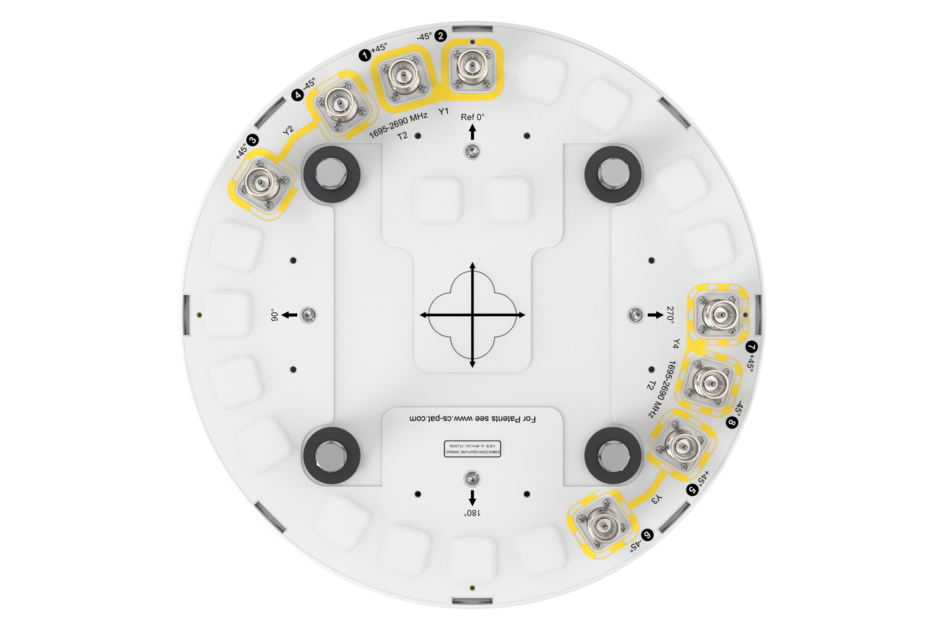

| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 480 W |
Electrical specifications
| Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 1695–1920 | 1920–2200 | 2300–2690 |
| RF Port | 1-8 | 1-8 | 1-8 |
| Gain, dBi | 8.0 | 9.3 | 8.7 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 21.9 | 19.5 | 16 |
| Beam Tilt, degrees | 2 | 2 | 2 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 | 150 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 478 mm | 18.819 in |
| Depth, packed | 464 mm | 18.268 in |
| Length, packed | 894 mm | 35.197 in |
| Weight, gross | 19.2 kg | 42.329 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Small Cell |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Dimensions
| Width | 370 mm | 14.567 in |
| Depth | 370 mm | 14.567 in |
| Length | 610 mm | 24.016 in |
| Net Weight, antenna only | 14.8 kg | 32.628 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 480 W |
Electrical specifications
| Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 1695–1920 | 1920–2200 | 2300–2690 |
| RF Port | 1-8 | 1-8 | 1-8 |
| Gain, dBi | 8.0 | 9.3 | 8.7 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 21.9 | 19.5 | 16 |
| Beam Tilt, degrees | 2 | 2 | 2 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 | 150 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 129.0 N @ 150 km/h (29.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 478 mm | 18.819 in |
| Depth, packed | 464 mm | 18.268 in |
| Length, packed | 894 mm | 35.197 in |
| Weight, gross | 19.2 kg | 42.329 lb |

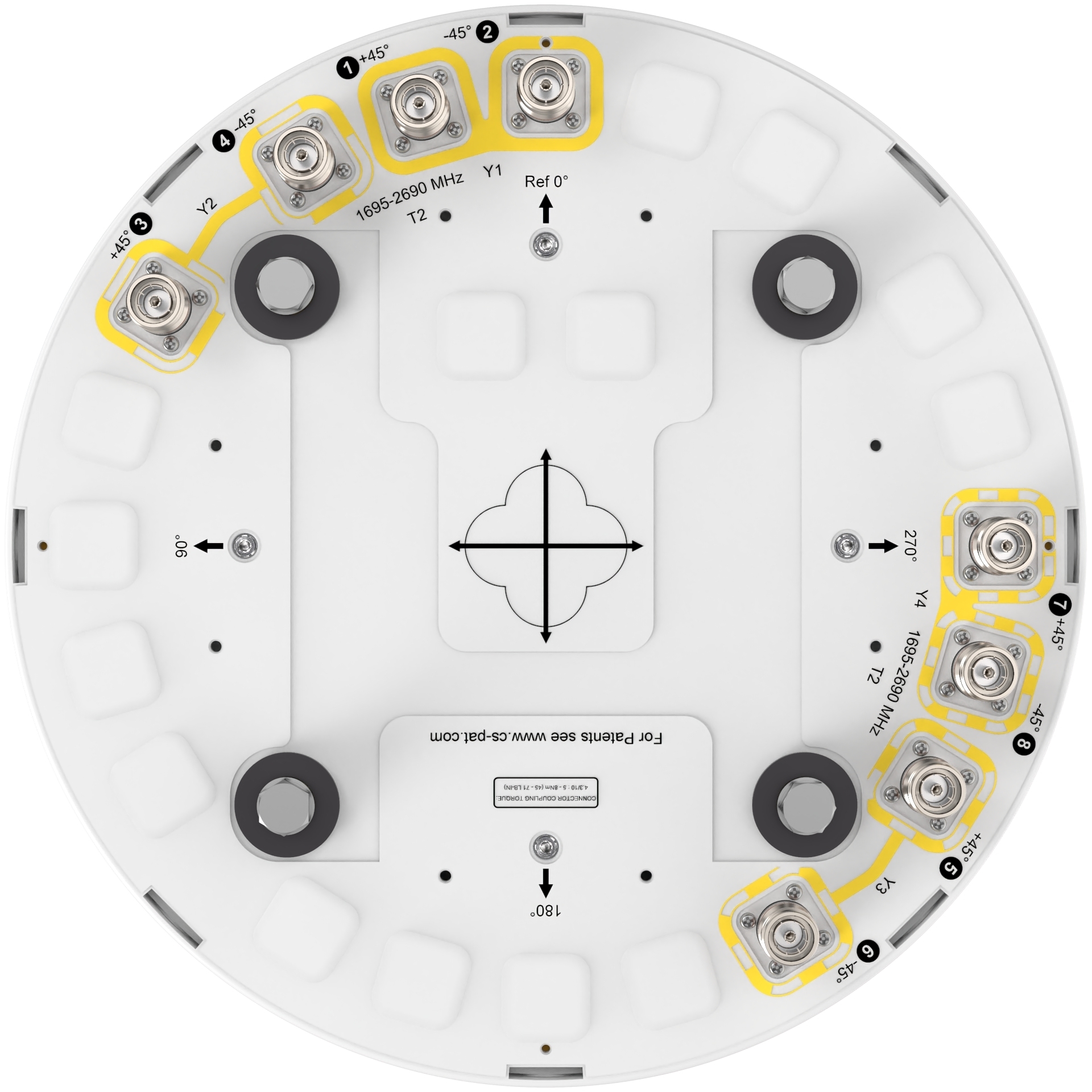

| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
