RRZZV4-65D-R6H4

16-port sector antenna, 4x 694–960, 4x 1427-2690 and 8x 1695–2690 MHz, 65° HPBW, 6x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (Supports_r)

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 12
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 16

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 53.5 kg | 117.947 lb

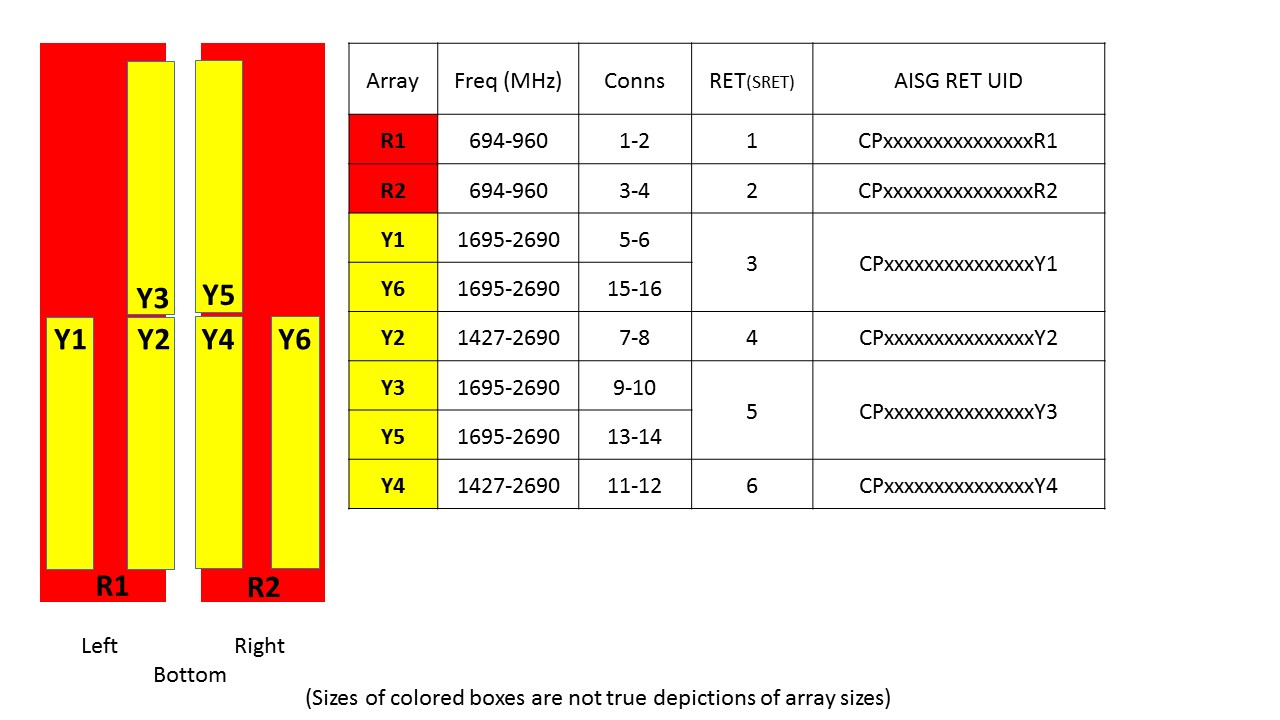

Array layout

Click on image to enlarge.

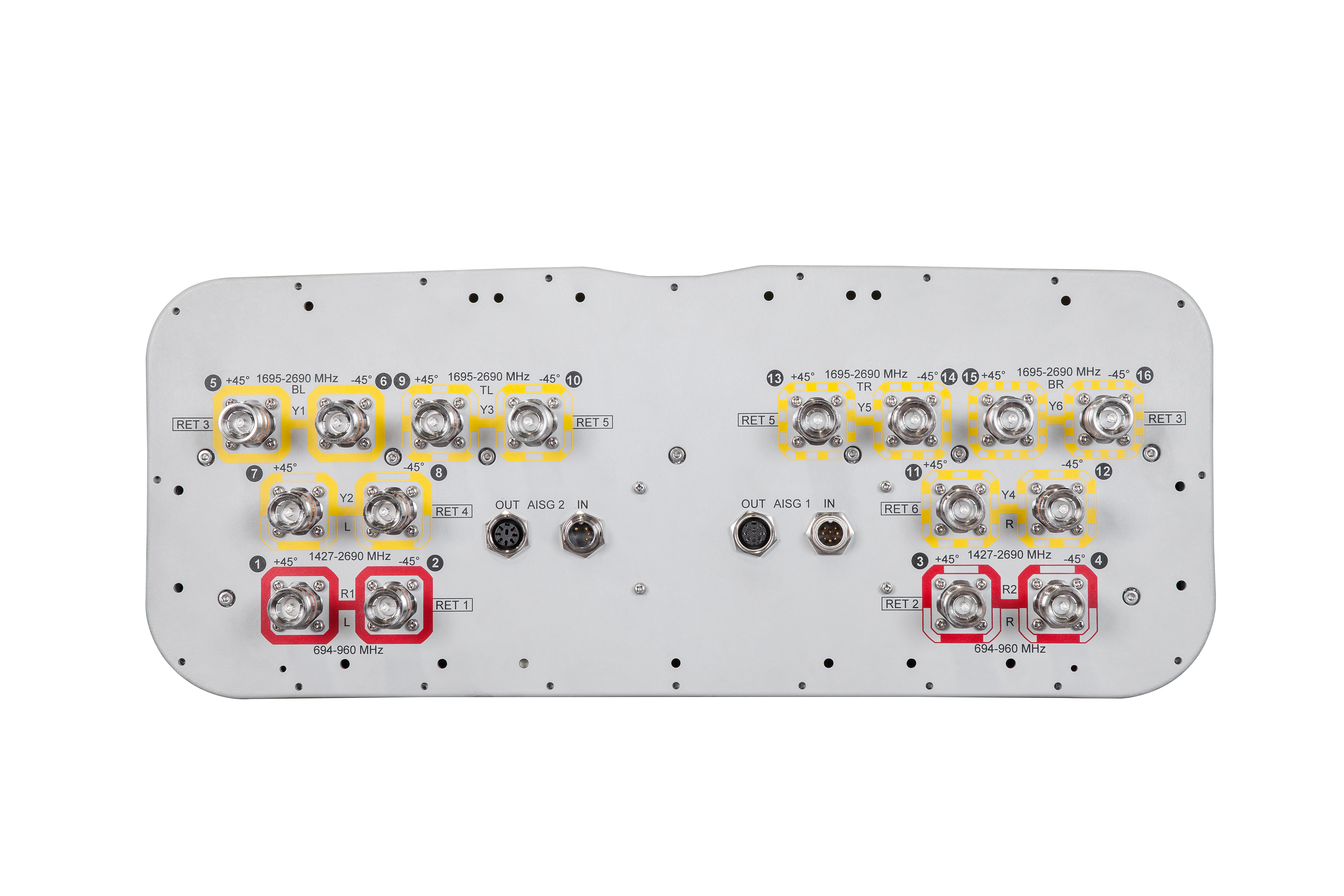

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1-R2 R1-R2 R1-R2 Y1/Y3/Y5/Y6 Y1/Y3/Y5/Y6 Y2&Y4 Y2&Y4 Y2&Y4
Frequency Band, MHz 694–790 790–890 890–960 1695–2200 2300–2690 1427–1518 1695–2200 2300–2690
Gain, dBi 15.6 16.0 16.1 17.4 17.9 15.3 17.1 17.7
Beamwidth, Horizontal, degrees 72 66 64 60 59 67 61 58
Beamwidth, Vertical, degrees 8.9 7.9 7.4 6.9 5.4 9.5 7.4 5.6
Beam Tilt, degrees 2–14 2–14 2–14 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 18 20 18 24 23 18 22
Front-to-Back Ratio at 180°, dB 36 30 27 33 31 35 36 33
CPR at Boresight, dB 22 21 19 19 19 17 19 21
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 250 250 250 200 200 200 200 200

Mechanical specifications

Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 880.0 N @ 150 km/h (197.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2935 mm | 115.551 in
Weight, gross 74.5 kg | 164.244 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 12
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 16

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, without mounting kit 53.5 kg | 117.947 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1-R2 R1-R2 R1-R2 Y1/Y3/Y5/Y6 Y1/Y3/Y5/Y6 Y2&Y4 Y2&Y4 Y2&Y4
Frequency Band, MHz 694–790 790–890 890–960 1695–2200 2300–2690 1427–1518 1695–2200 2300–2690
Gain, dBi 15.6 16.0 16.1 17.4 17.9 15.3 17.1 17.7
Beamwidth, Horizontal, degrees 72 66 64 60 59 67 61 58
Beamwidth, Vertical, degrees 8.9 7.9 7.4 6.9 5.4 9.5 7.4 5.6
Beam Tilt, degrees 2–14 2–14 2–14 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 18 20 18 24 23 18 22
Front-to-Back Ratio at 180°, dB 36 30 27 33 31 35 36 33
CPR at Boresight, dB 22 21 19 19 19 17 19 21
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 250 250 250 200 200 200 200 200

Mechanical specifications

Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 880.0 N @ 150 km/h (197.8 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 2935 mm | 115.551 in
Weight, gross 74.5 kg | 164.244 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
