RRZZV4-6590D-R5V4

16-port sector antenna, 4x 694-960, 4x 1427-2690 MHz, 65° HPBW and 8x 1695-2690 MHz, 90° HPBW, 5x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Antenna FDD Beamforming in 1695-2690 MHz
  • Soft Split Feature available
  • Antenna support 4T4R configuration by using external power divider
  • V4 array uses MQ4/5 cluster connectors

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5
Calibration Connector Quantity 1
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female | MQ4 | MQ5
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 16

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (3)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, antenna only 45.2 kg | 99.649 lb

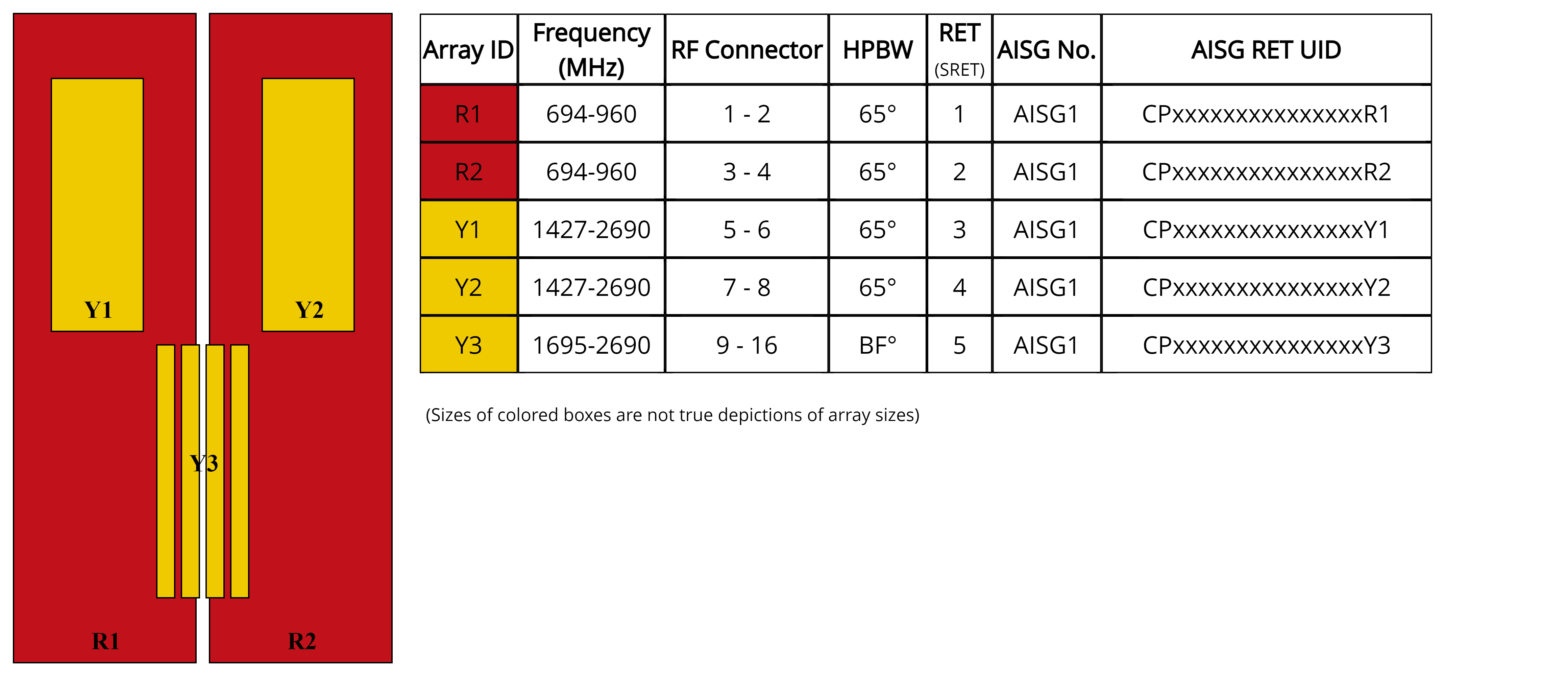

Array layout

Click on image to enlarge.

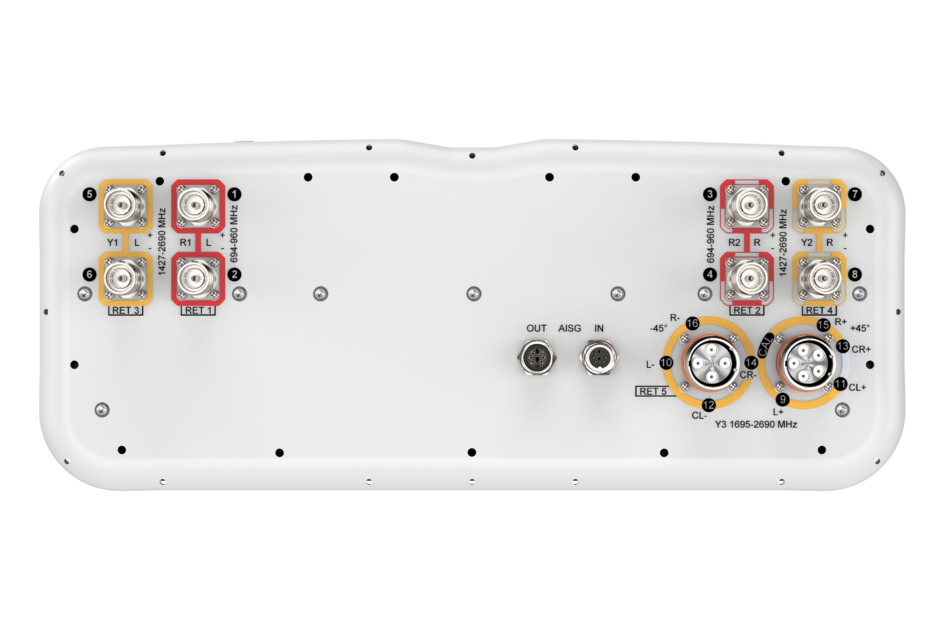

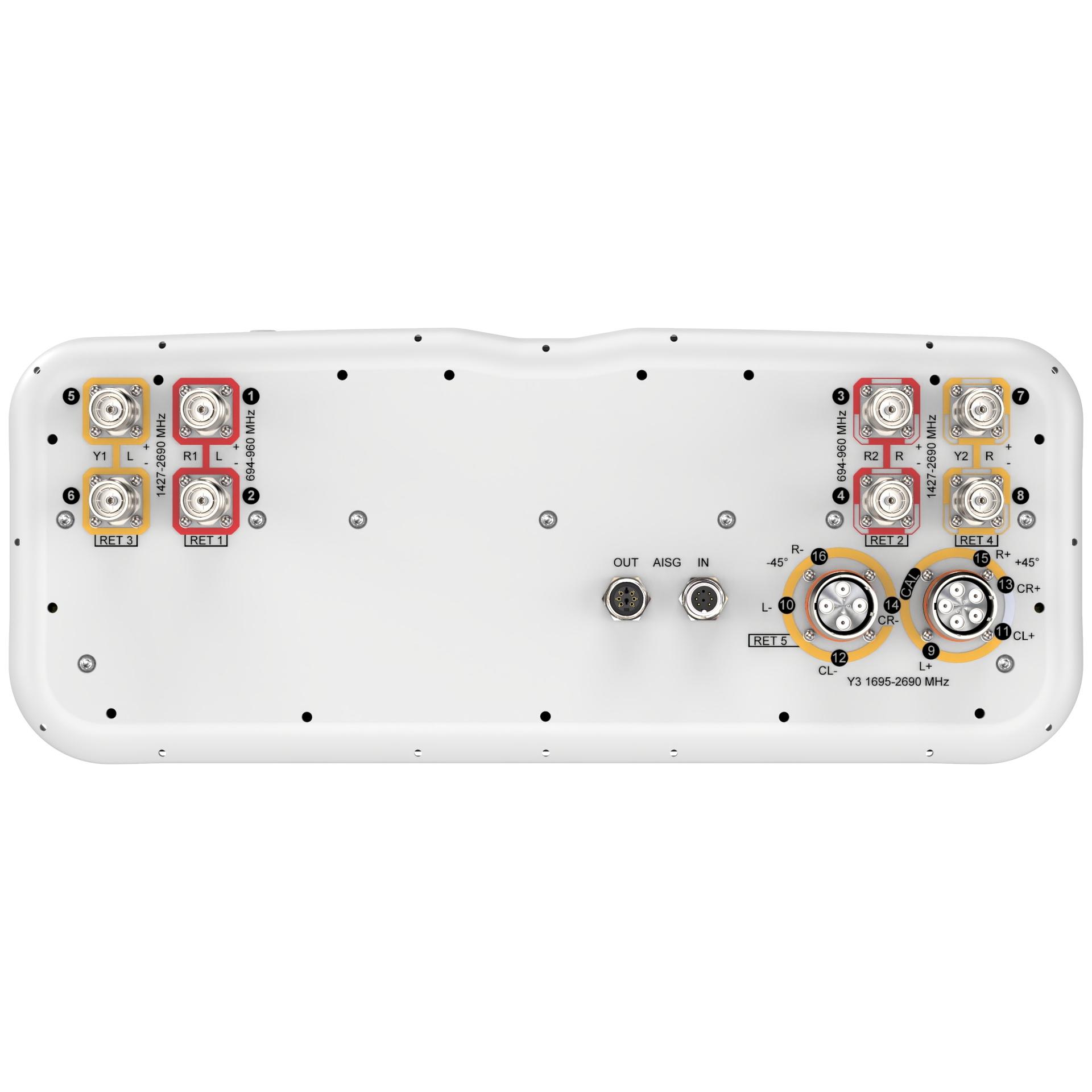

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2 Y3 Y3 Y3 Y3
Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 1695–2200 2490–2690 1695–2200 2490–2690
RF Port 1-4 1-4 1-4 5-8 5-8 5-8 5-8 5-8 9-16 9-16 9&11, 10&12, 13&15, 14&16 9&11, 10&12, 13&15, 14&16
Gain at Mid Tilt, dBi 15.7 16.0 16.1 14.7 16.9 17.4 18.2 18.2 15.7 16.8 17.3 18.4
Beamwidth, Horizontal, degrees 65 59 61 71 68 66 60 62 101 77 65 57
Beamwidth, Vertical, degrees 8.7 7.9 7.1 7.5 5.7 5.3 4.7 4.3 5.3 4 5.2 3.9
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 20 19 17 15 16 17 18 20 18 22 20 22
Front-to-Back Ratio at 180°, dB 29 31 29 30 29 28 29 33 32 31 35 36
Coupling level, Amp, Antenna port to Cal port, dB -26 -26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 26 23 18 17 22 19 20 17 16 17 22 20
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25 22 22
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153 -140 -140
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200 150 150

Electrical specifications, service beam

Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 1695–2200 2490–2690 1695–2200 2490–2690
Steered 30° Gain, dBi 20.4 21.0
Steered 30° Beamwidth, Horizontal, degrees 31 22
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 30 28
Steered 30° Horizontal Sidelobe, dB 11 9

Electrical specifications, soft split

Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 1695–2200 2490–2690 1695–2200 2490–2690
Gain, dBi 20.0
Beamwidth, Horizontal, degrees 37
Front-to-Back Total Power at 180° ± 30°, dB 30
Horizontal Sidelobe, dB 20

Mechanical specifications

Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 318 mm | 12.520 in
Length, packed 2809 mm | 110.591 in
Weight, gross 65 kg | 143.300 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5
Calibration Connector Quantity 1
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female | MQ4 | MQ5
RF Connector Location Bottom
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 16

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (3)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2688 mm | 105.827 in
Net Weight, antenna only 45.2 kg | 99.649 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2 Y1,Y2 Y3 Y3 Y3 Y3
Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 1695–2200 2490–2690 1695–2200 2490–2690
RF Port 1-4 1-4 1-4 5-8 5-8 5-8 5-8 5-8 9-16 9-16 9&11, 10&12, 13&15, 14&16 9&11, 10&12, 13&15, 14&16
Gain at Mid Tilt, dBi 15.7 16.0 16.1 14.7 16.9 17.4 18.2 18.2 15.7 16.8 17.3 18.4
Beamwidth, Horizontal, degrees 65 59 61 71 68 66 60 62 101 77 65 57
Beamwidth, Vertical, degrees 8.7 7.9 7.1 7.5 5.7 5.3 4.7 4.3 5.3 4 5.2 3.9
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 20 19 17 15 16 17 18 20 18 22 20 22
Front-to-Back Ratio at 180°, dB 29 31 29 30 29 28 29 33 32 31 35 36
Coupling level, Amp, Antenna port to Cal port, dB -26 -26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 26 23 18 17 22 19 20 17 16 17 22 20
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25 22 22
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153 -140 -140
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 250 200 200 150 150

Electrical specifications, service beam

Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 1695–2200 2490–2690 1695–2200 2490–2690
Steered 30° Gain, dBi 20.4 21.0
Steered 30° Beamwidth, Horizontal, degrees 31 22
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 30 28
Steered 30° Horizontal Sidelobe, dB 11 9

Electrical specifications, soft split

Frequency Band, MHz 698–806 790–894 890–960 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 1695–2200 2490–2690 1695–2200 2490–2690
Gain, dBi 20.0
Beamwidth, Horizontal, degrees 37
Front-to-Back Total Power at 180° ± 30°, dB 30
Horizontal Sidelobe, dB 20

Mechanical specifications

Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 318 mm | 12.520 in
Length, packed 2809 mm | 110.591 in
Weight, gross 65 kg | 143.300 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
