RRYYHHTTS4-65AR7V4

24-port sector antenna, 4x 694–960, 4x 1427–1518, 4x 1695-2180, 4x 2490-2690 65° HPBW and 8x 3300-3800 MHz, 7x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Integrated with a calibration board
  • Optimized for Software Defined Split 6 Sector applications
  • 2 columns for 694-960 MHz and 2 columns for 1427-1518 / 1695-2180 / 2490-2690 MHz and 4 columns for 3300-3800 MHz
  • Seven internal RETs control the antenna arrays
  • MQ4/MQ5 cluster connector for 3.3-3.8GHz, equipped with calibration port

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | MQ4 | MQ5
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 24

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 1499 mm | 59.016 in
Net Weight, antenna only 37.8 kg | 83.335 lb
TDD Column Spacing 42 mm | 1.654 in

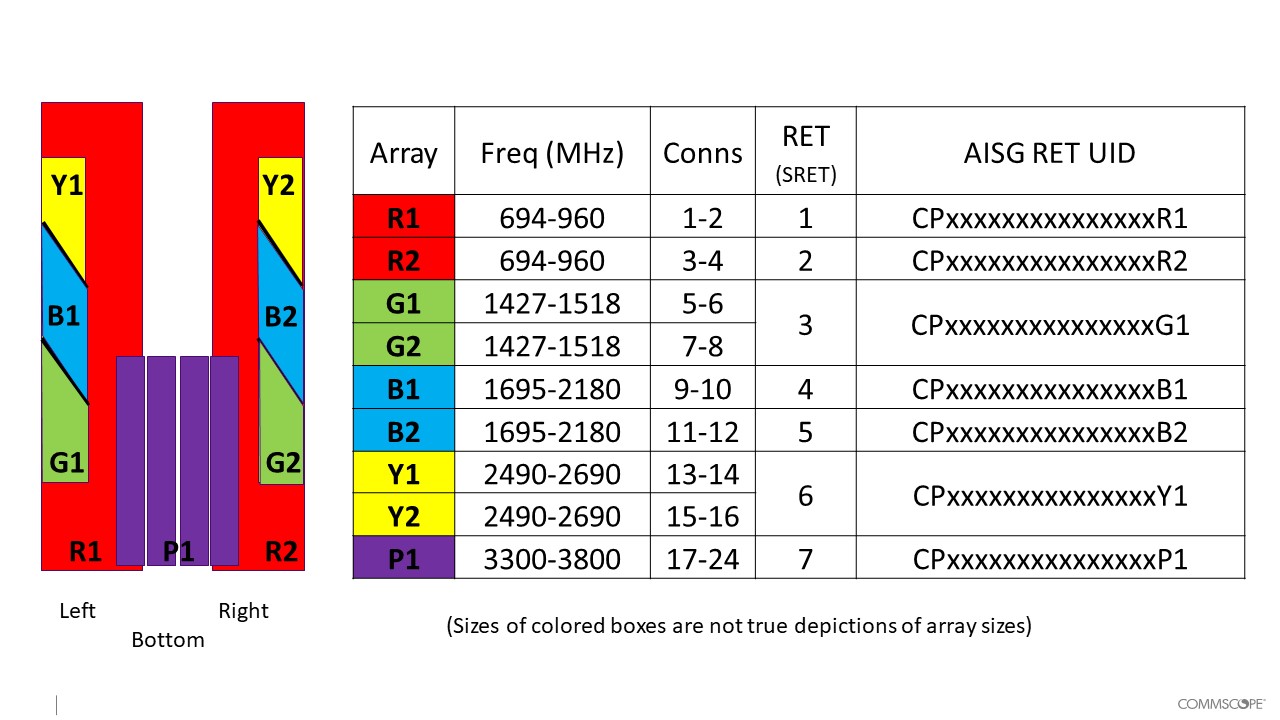

Array layout

Click on image to enlarge.

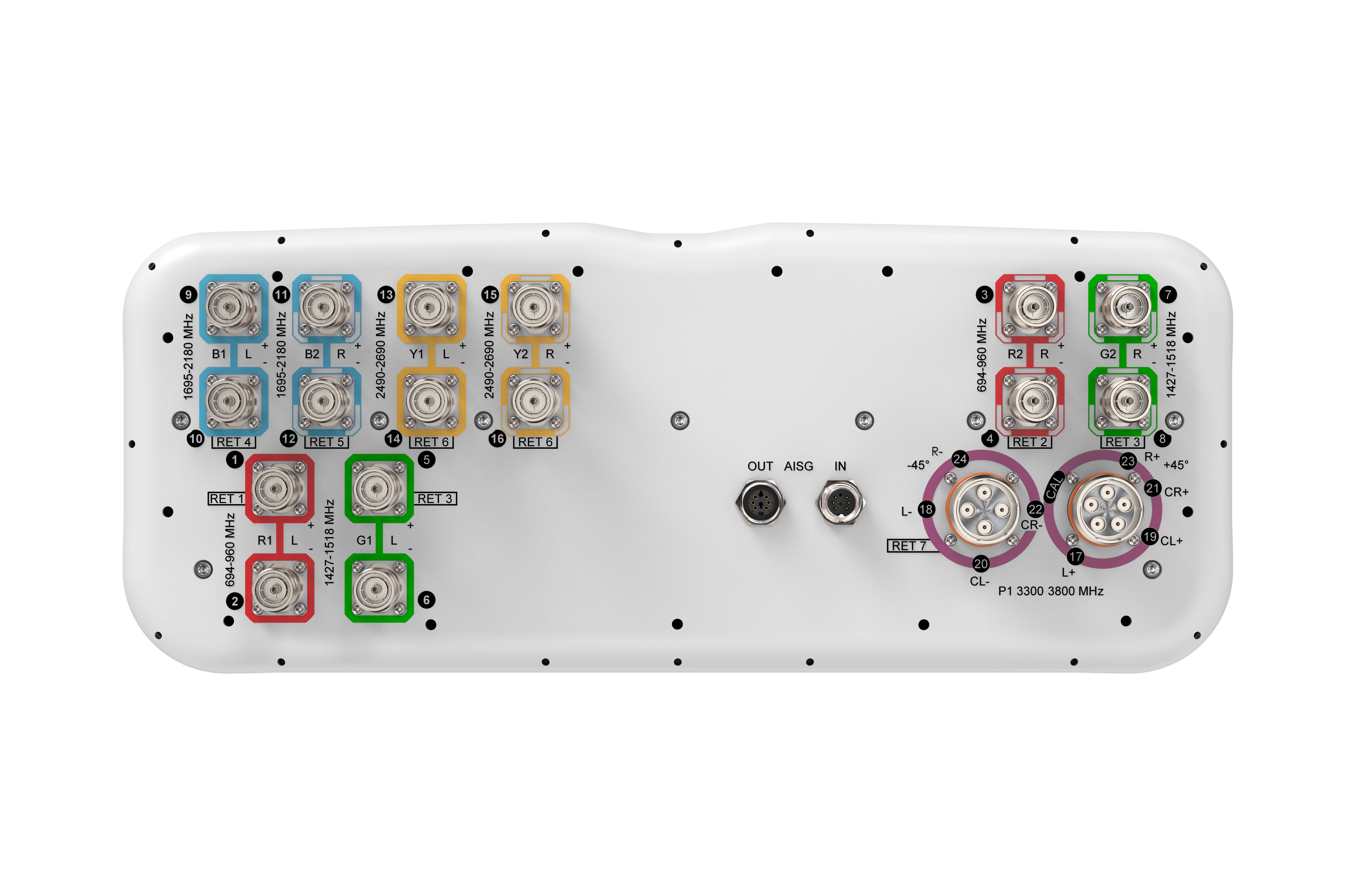

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 1518 MHz | 1695 – 2180 MHz | 2496 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2490–2690 3300–3800
Gain, dBi 13.4 13.5 13.8 14.9 15.9 16.8 15.9
Beamwidth, Horizontal, degrees 60 60 60 59 68 57 91
Beamwidth, Vertical, degrees 17.2 15.8 15 8.1 6.5 4.9 6.5
Beam Tilt, degrees 2–16 2–16 2–16 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 21 17 17 17 17 16 16
Front-to-Back Ratio at 180°, dB 30 29 29 31 29 30 28
Coupling level, Amp, Antenna port to Cal port, dB 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7
CPR at Boresight, dB 20 19 19 13 18 16 15
Isolation, Cross Polarization, dB 26 26 26 25 25 25 25
Isolation, Inter-band, dB 26 26 26 28 28 28 28
Isolation, Co-polarization, dB 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -130
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 150 75

Electrical specifications, broadcast 65

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2490–2690 3300–3800
Gain, dBi 16.5
Beamwidth, Horizontal, degrees 63
Beamwidth, Vertical, degrees 6.6
USLS (First Lobe), dB 17

Electrical specifications, service beam

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2490–2690 3300–3800
Steered 0° Gain, dBi 20.6
Steered 0° Beamwidth, Horizontal, degrees 24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 27
Steered 0° Horizontal Sidelobe, dB 15
Steered 0° USLS (First Lobe), dB 17
Steered 30° Gain, dBi 19.7
Steered 30° Beamwidth, Horizontal, degrees 27
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 26

Electrical specifications, soft split

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2490–2690 3300–3800
Gain, dBi 19.6
Beamwidth, Horizontal, degrees 32
Front-to-Back Total Power at 180° ± 30°, dB 26
Horizontal Sidelobe, dB 19
USLS (First Lobe), dB 18

Mechanical specifications

Wind Loading @ Velocity, frontal 498.0 N @ 150 km/h (112.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 148.0 N @ 150 km/h (33.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 597.0 N @ 150 km/h (134.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 342.0 N @ 150 km/h (76.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 1686 mm | 66.378 in
Weight, gross 50.7 kg | 111.774 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface MQ5
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | MQ4 | MQ5
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 12
RF Connector Quantity, low band 4
RF Connector Quantity, total 24

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (2) | Mid band (4)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 1499 mm | 59.016 in
Net Weight, antenna only 37.8 kg | 83.335 lb
TDD Column Spacing 42 mm | 1.654 in

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 1518 MHz | 1695 – 2180 MHz | 2496 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2490–2690 3300–3800
Gain, dBi 13.4 13.5 13.8 14.9 15.9 16.8 15.9
Beamwidth, Horizontal, degrees 60 60 60 59 68 57 91
Beamwidth, Vertical, degrees 17.2 15.8 15 8.1 6.5 4.9 6.5
Beam Tilt, degrees 2–16 2–16 2–16 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 21 17 17 17 17 16 16
Front-to-Back Ratio at 180°, dB 30 29 29 31 29 30 28
Coupling level, Amp, Antenna port to Cal port, dB 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7
CPR at Boresight, dB 20 19 19 13 18 16 15
Isolation, Cross Polarization, dB 26 26 26 25 25 25 25
Isolation, Inter-band, dB 26 26 26 28 28 28 28
Isolation, Co-polarization, dB 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -130
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 150 75

Electrical specifications, broadcast 65

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2490–2690 3300–3800
Gain, dBi 16.5
Beamwidth, Horizontal, degrees 63
Beamwidth, Vertical, degrees 6.6
USLS (First Lobe), dB 17

Electrical specifications, service beam

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2490–2690 3300–3800
Steered 0° Gain, dBi 20.6
Steered 0° Beamwidth, Horizontal, degrees 24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 27
Steered 0° Horizontal Sidelobe, dB 15
Steered 0° USLS (First Lobe), dB 17
Steered 30° Gain, dBi 19.7
Steered 30° Beamwidth, Horizontal, degrees 27
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 26

Electrical specifications, soft split

Frequency Band, MHz 694–790 790–890 890–960 1427–1518 1695–2180 2490–2690 3300–3800
Gain, dBi 19.6
Beamwidth, Horizontal, degrees 32
Front-to-Back Total Power at 180° ± 30°, dB 26
Horizontal Sidelobe, dB 19
USLS (First Lobe), dB 18

Mechanical specifications

Wind Loading @ Velocity, frontal 498.0 N @ 150 km/h (112.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 148.0 N @ 150 km/h (33.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 597.0 N @ 150 km/h (134.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 342.0 N @ 150 km/h (76.9 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 309 mm | 12.165 in
Length, packed 1686 mm | 66.378 in
Weight, gross 50.7 kg | 111.774 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
