RRVV-65B-R4VB-V8
8-port sector antenna, 4x 698–960 MHz and 4x 1710–2690 MHz, 65° HPBW, 4x RET
Features and benefits
- Antenna with tilt scale indicators and integrated pluggable RET
- Array configuration provides capability for 4T4R (4x MIMO) on Low band and High band
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 446 mm | 17.559 in |
| Depth | 165 mm | 6.496 in |
| Length | 1997 mm | 78.622 in |
| Net Weight, without mounting kit | 29.5 kg | 65.036 lb |

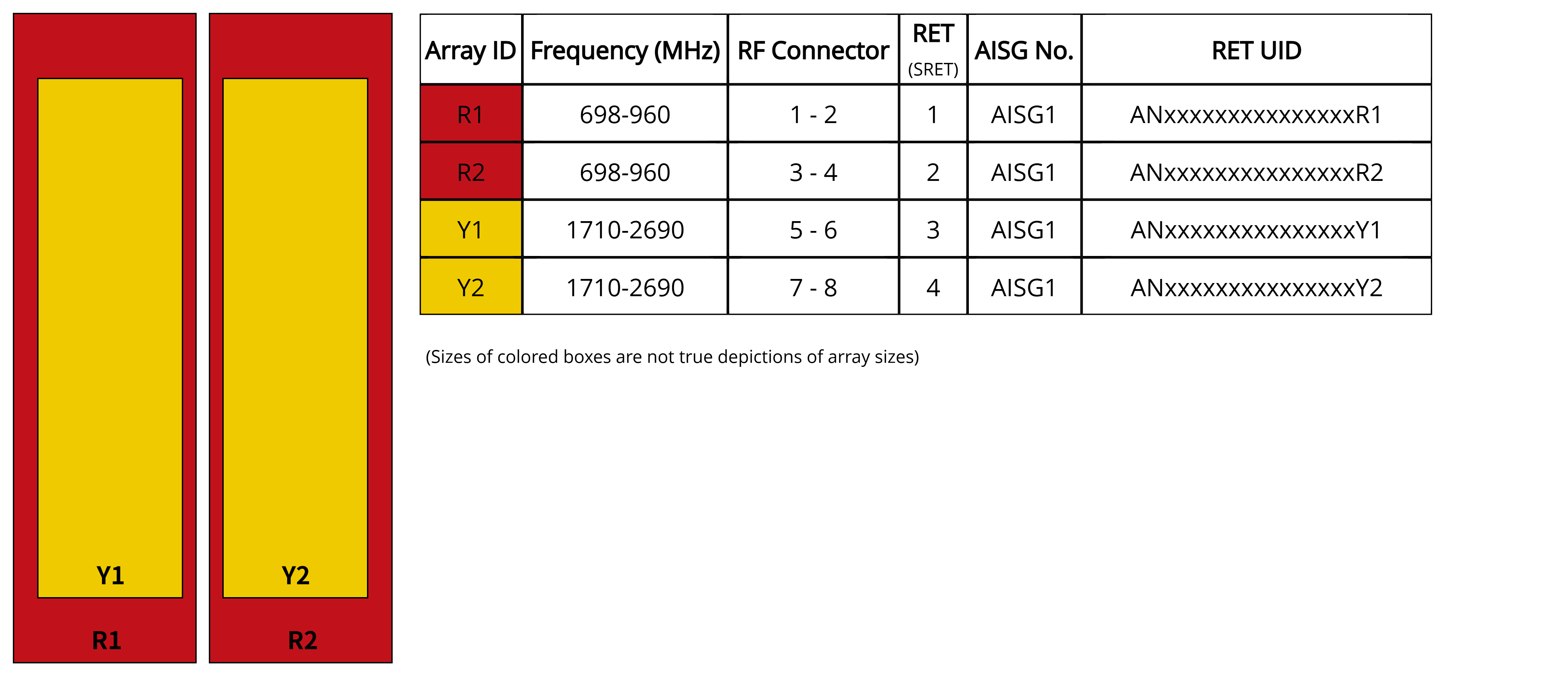

Array layout
| Click on image to enlarge. |

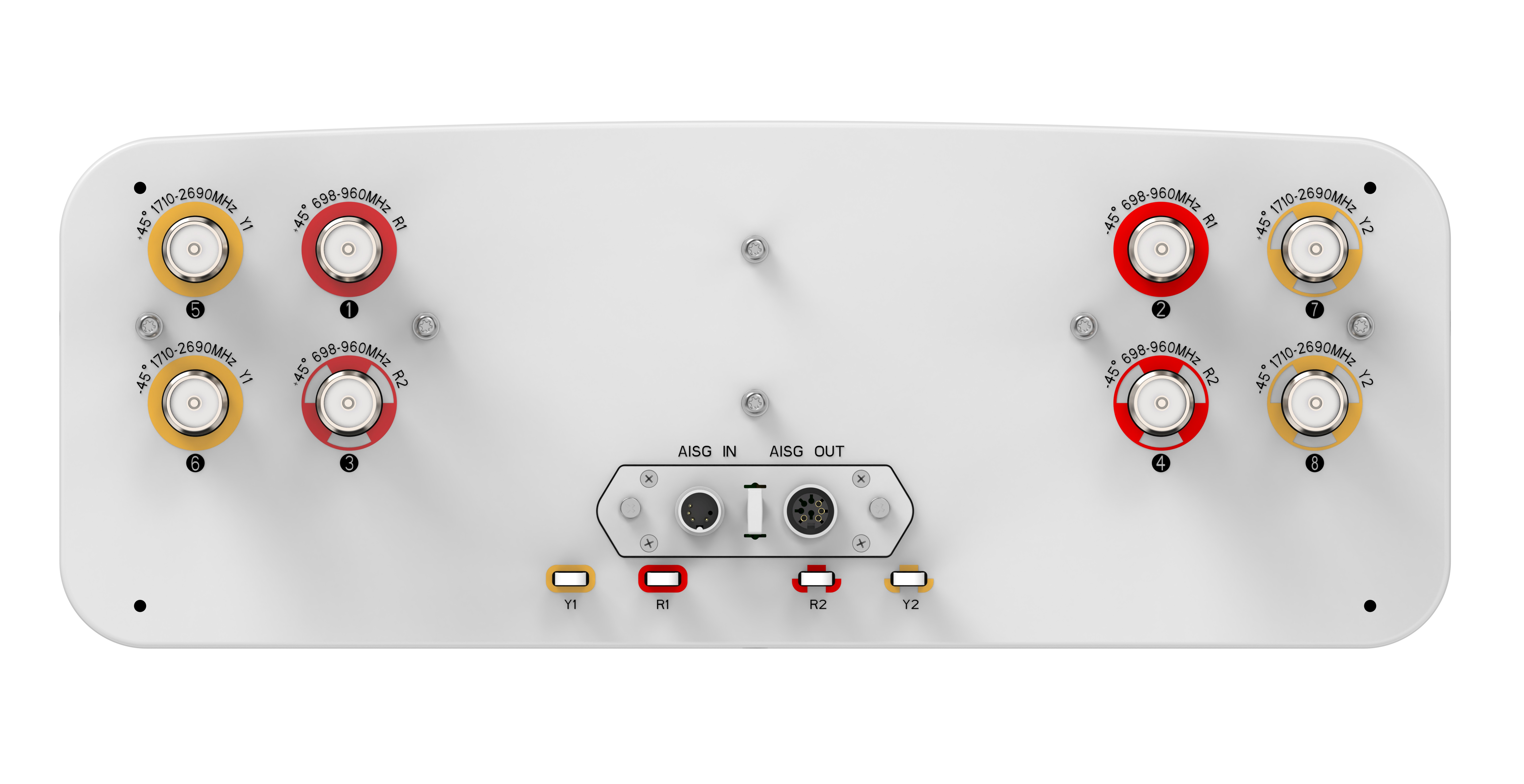

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W |
Electrical specifications
| R1,R2 | R1,R2 | R1,R2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 698–803 | 824–894 | 880–960 | 1710–1880 | 1920–2170 | 2300–2400 | 2490–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-8 | 5-8 | 5-8 | 5-8 |
| Beamwidth, Horizontal, degrees | 63 | 60 | 58 | 63 | 61 | 60 | 59 |
| Beamwidth, Vertical, degrees | 11 | 10.2 | 9.4 | 7.2 | 6.6 | 5.8 | 5.3 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 21 | 23 | 23 | 22 | 22 | 23 | 23 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 400 | 400 | 400 | 250 | 250 | 250 | 250 |
Electrical specifications, basta
| Frequency Band, MHz | 698–803 | 824–894 | 880–960 | 1710–1880 | 1920–2170 | 2300–2400 | 2490–2690 |
| Gain by all Beam Tilts, average, dBi | 14.0 | 14.4 | 14.8 | 16.6 | 16.8 | 17.0 | 17.1 |
| Gain by all Beam Tilts Tolerance, dB | ±0.7 | ±0.6 | ±0.6 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Beamwidth, Horizontal Tolerance, degrees | ±7 | ±7 | ±7 | ±7 | ±6 | ±6 | ±6 |
| Beamwidth, Vertical Tolerance, degrees | ±0.9 | ±0.9 | ±0.8 | ±0.7 | ±0.6 | ±0.6 | ±0.6 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 846.0 N @ 150 km/h (190.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 241.0 N @ 150 km/h (54.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 855.0 N @ 150 km/h (192.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 520 mm | 20.472 in |
| Depth, packed | 270 mm | 10.630 in |
| Length, packed | 2170 mm | 85.433 in |
| Weight, gross | 38.8 kg | 85.539 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 446 mm | 17.559 in |
| Depth | 165 mm | 6.496 in |
| Length | 1997 mm | 78.622 in |
| Net Weight, without mounting kit | 29.5 kg | 65.036 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W |
Electrical specifications
| R1,R2 | R1,R2 | R1,R2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 698–803 | 824–894 | 880–960 | 1710–1880 | 1920–2170 | 2300–2400 | 2490–2690 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-8 | 5-8 | 5-8 | 5-8 |
| Beamwidth, Horizontal, degrees | 63 | 60 | 58 | 63 | 61 | 60 | 59 |
| Beamwidth, Vertical, degrees | 11 | 10.2 | 9.4 | 7.2 | 6.6 | 5.8 | 5.3 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 21 | 23 | 23 | 22 | 22 | 23 | 23 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 400 | 400 | 400 | 250 | 250 | 250 | 250 |
Electrical specifications, basta
| Frequency Band, MHz | 698–803 | 824–894 | 880–960 | 1710–1880 | 1920–2170 | 2300–2400 | 2490–2690 |
| Gain by all Beam Tilts, average, dBi | 14.0 | 14.4 | 14.8 | 16.6 | 16.8 | 17.0 | 17.1 |
| Gain by all Beam Tilts Tolerance, dB | ±0.7 | ±0.6 | ±0.6 | ±0.5 | ±0.5 | ±0.5 | ±0.5 |
| Beamwidth, Horizontal Tolerance, degrees | ±7 | ±7 | ±7 | ±7 | ±6 | ±6 | ±6 |
| Beamwidth, Vertical Tolerance, degrees | ±0.9 | ±0.9 | ±0.8 | ±0.7 | ±0.6 | ±0.6 | ±0.6 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 846.0 N @ 150 km/h (190.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 241.0 N @ 150 km/h (54.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 855.0 N @ 150 km/h (192.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 520 mm | 20.472 in |
| Depth, packed | 270 mm | 10.630 in |
| Length, packed | 2170 mm | 85.433 in |
| Weight, gross | 38.8 kg | 85.539 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
