NNVVSS-360M-F6
12-port quasi-omni antenna, 4x 698-896, 4x1695-2690 and 4x 3100-4000MHz, 360° horizontal beamwidth, Fixed tilt.
Features and benefits
- Extended length to maximize gain with volume < 3 cu. ft
- Fixed tilt of 6 degrees for mid band and high band arrays
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Dimensions
| Length | 1158 mm | 45.591 in |
| Net Weight, antenna only | 16 kg | 35.274 lb |
| Outer Diameter | 305 mm | 12.008 in |

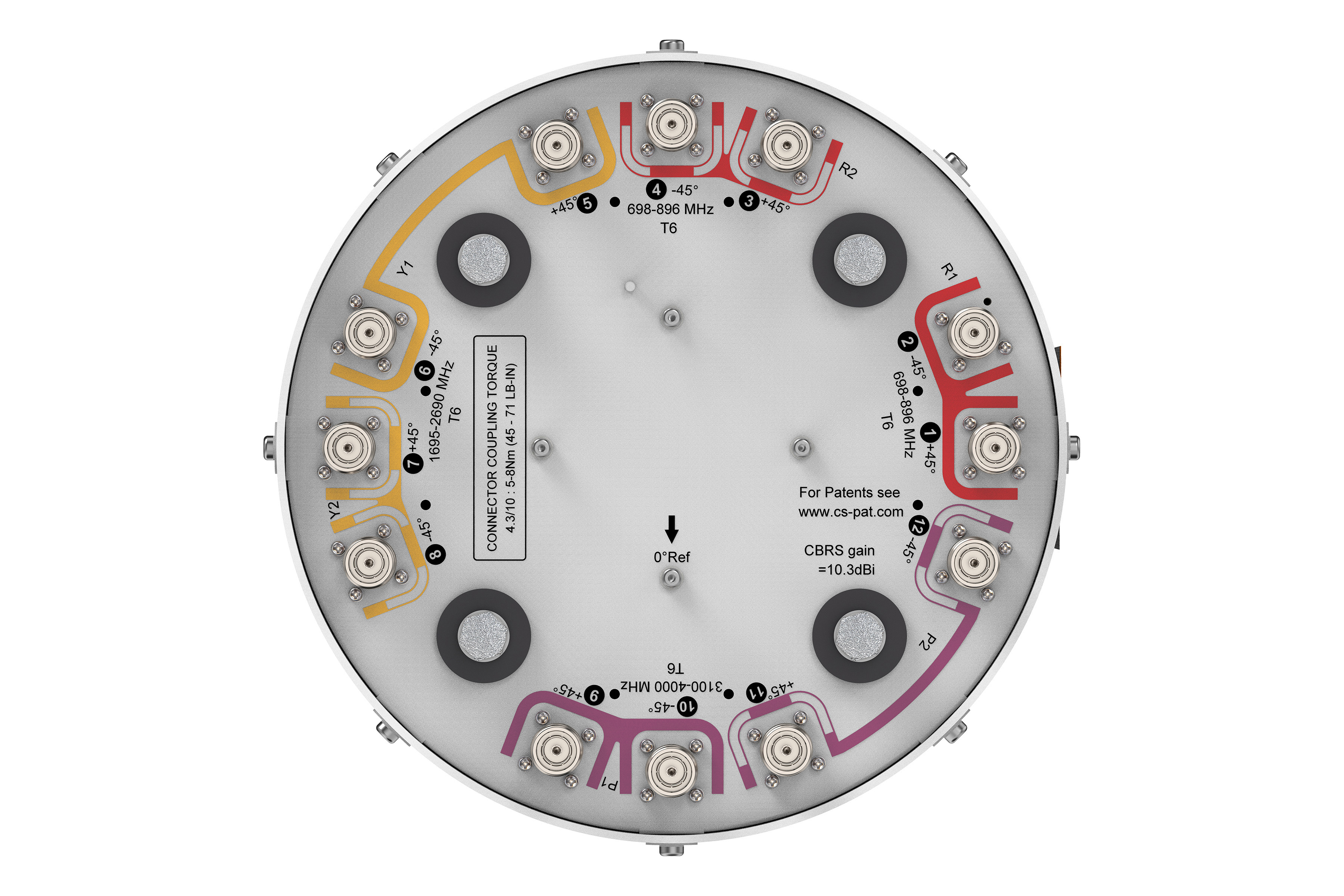

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2690 MHz | 3100 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1920 | 1920–2180 | 2300–2690 | 3100–3550 | 3550–3700 | 3700–4000 |
| Gain, dBi | 7.1 | 7.2 | 8.4 | 8.8 | 9.7 | 10.3 | 9.9 | 9.8 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 24.1 | 22.6 | 16.2 | 14.3 | 11.2 | 11.2 | 10.3 | 10.2 |
| Beam Tilt, degrees | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -145 | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 427 mm | 16.811 in |
| Depth, packed | 407 mm | 16.024 in |
| Length, packed | 1442 mm | 56.772 in |
| Weight, gross | 20 kg | 44.092 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Dimensions
| Length | 1158 mm | 45.591 in |
| Net Weight, antenna only | 16 kg | 35.274 lb |
| Outer Diameter | 305 mm | 12.008 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2690 MHz | 3100 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1920 | 1920–2180 | 2300–2690 | 3100–3550 | 3550–3700 | 3700–4000 |
| Gain, dBi | 7.1 | 7.2 | 8.4 | 8.8 | 9.7 | 10.3 | 9.9 | 9.8 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 24.1 | 22.6 | 16.2 | 14.3 | 11.2 | 11.2 | 10.3 | 10.2 |
| Beam Tilt, degrees | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -145 | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 201.0 N @ 150 km/h (45.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 427 mm | 16.811 in |
| Depth, packed | 407 mm | 16.024 in |
| Length, packed | 1442 mm | 56.772 in |
| Weight, gross | 20 kg | 44.092 lb |

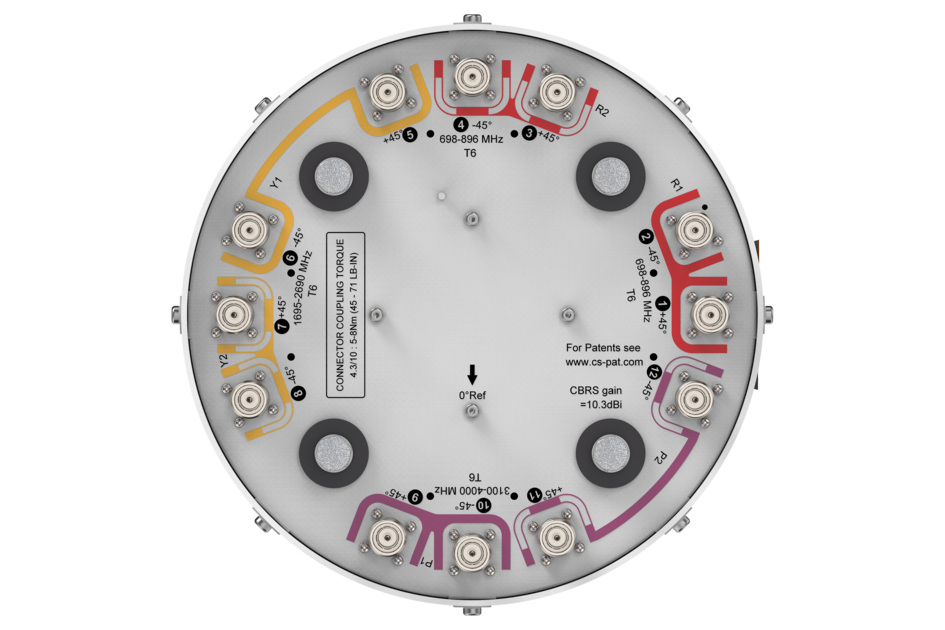

| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
