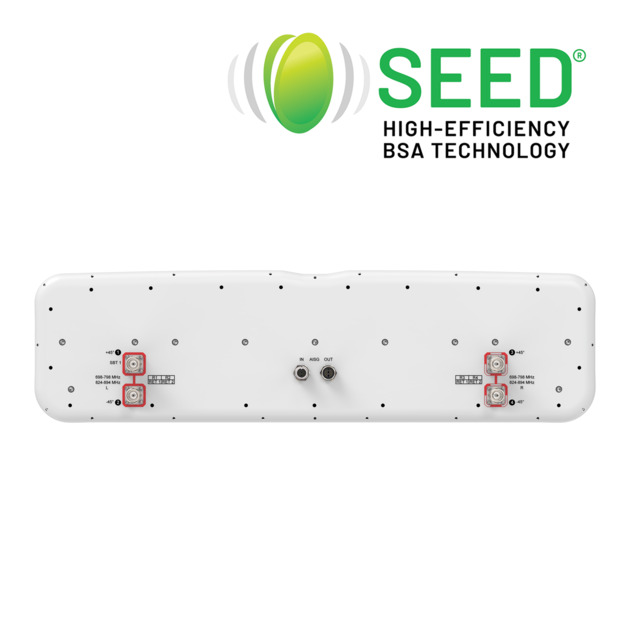

NN-45C-HG-R2BD
4-port Next Generation PerforMax™ Superior Coverage and Capacity sector antenna, 4 x 698-894 MHz, 45° HPBW, 8 ft, 2x RETs
Features and benefits
- Antenna optimized for higher gain with superior radiation efficiency
- Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
- Internal SBTs allow remote RET control from the radio over the RF jumper cable
- Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)
- Best in class PIM immunity
- Ideal 4T4R low band antenna for use with an FD mMIMO antenna
- The low band array is internally diplexed for an independent tilt at 700 MHz and 850 MHz
Specifications
General specifications
| Antenna Type | Sector with internal RET and bias tee |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 70 kg | 154.323 lb |

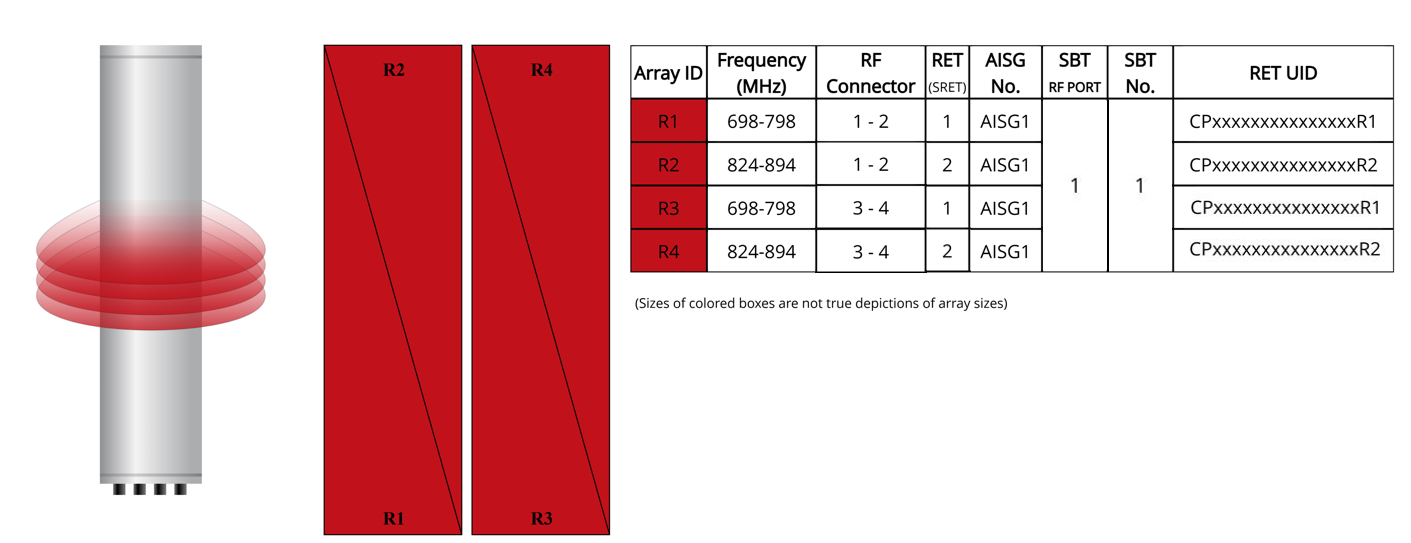

Array layout
| Click on image to enlarge. |

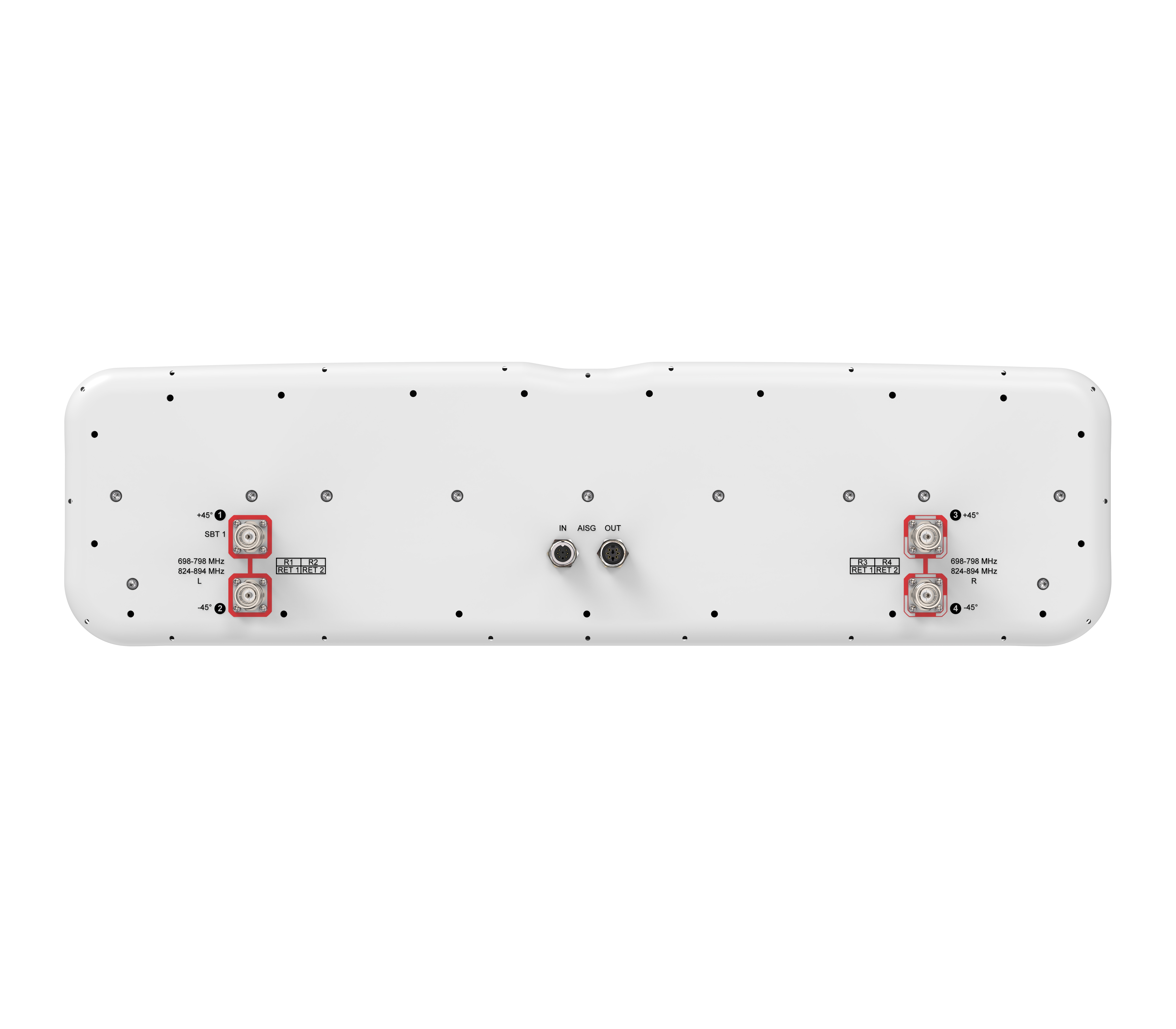

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 798 MHz | 824 – 894 MHz |
| Polarization | ±45° |
Electrical specifications
| R1,R3 | R2,R4 | |
| Frequency Band, MHz | 698–798 | 824–894 |
| RF Port | 1-4 | 1-4 |
| Gain, Maximum, dBi | 17.000 | 17.300 |
| Gain, dBi | 16.7 | 17.1 |
| Beamwidth, Horizontal, degrees | 47 | 45 |
| Beamwidth, Vertical, degrees | 9.1 | 8 |
| Beam Tilt, degrees | 0–10 | 0–10 |
| USLS (First Lobe), dB | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 30 | 32 |
| CPR at Boresight, dB | 14 | 16 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 915 mm | 36.024 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 3202 mm | 126.063 in |
| Weight, gross | 106 kg | 233.690 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector with internal RET and bias tee |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 70 kg | 154.323 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 798 MHz | 824 – 894 MHz |
| Polarization | ±45° |
Electrical specifications
| R1,R3 | R2,R4 | |
| Frequency Band, MHz | 698–798 | 824–894 |
| RF Port | 1-4 | 1-4 |
| Gain, Maximum, dBi | 17.000 | 17.300 |
| Gain, dBi | 16.7 | 17.1 |
| Beamwidth, Horizontal, degrees | 47 | 45 |
| Beamwidth, Vertical, degrees | 9.1 | 8 |
| Beam Tilt, degrees | 0–10 | 0–10 |
| USLS (First Lobe), dB | 15 | 15 |
| Front-to-Back Ratio at 180°, dB | 30 | 32 |
| CPR at Boresight, dB | 14 | 16 |
| Isolation, Cross Polarization, dB | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 915 mm | 36.024 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 3202 mm | 126.063 in |
| Weight, gross | 106 kg | 233.690 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
