NHHSS-45B-R2BT4
10-port sector antenna, 2x 698–896, 4x 1695–2200 and 4x 3100-4200 MHz, 45° HPBW, 2x RETs and 2x SBTs
Features and benefits
- Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 10 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 457 mm | 17.992 in |
| Depth | 178 mm | 7.008 in |
| Length | 1828 mm | 71.969 in |
| Net Weight, antenna only | 34.9 kg | 76.941 lb |

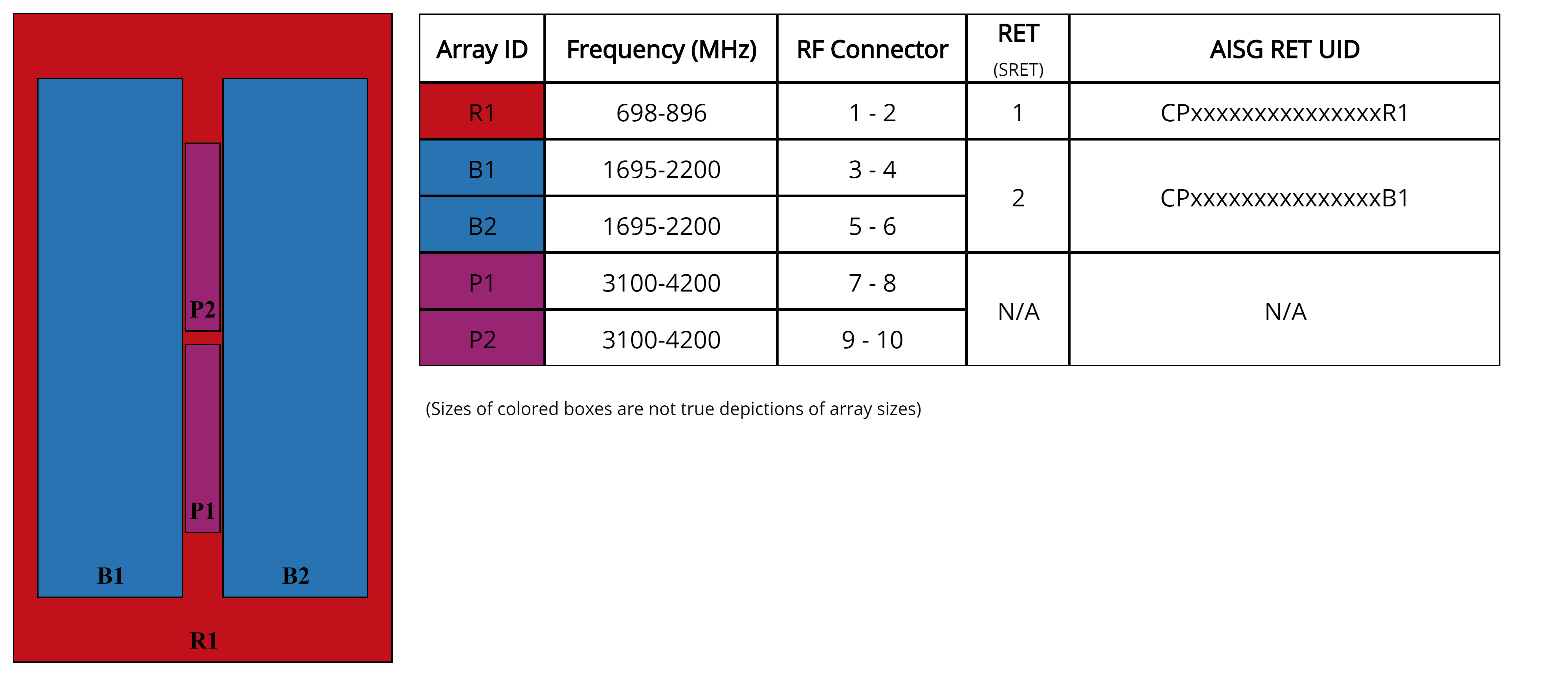

Array layout
| Click on image to enlarge. |

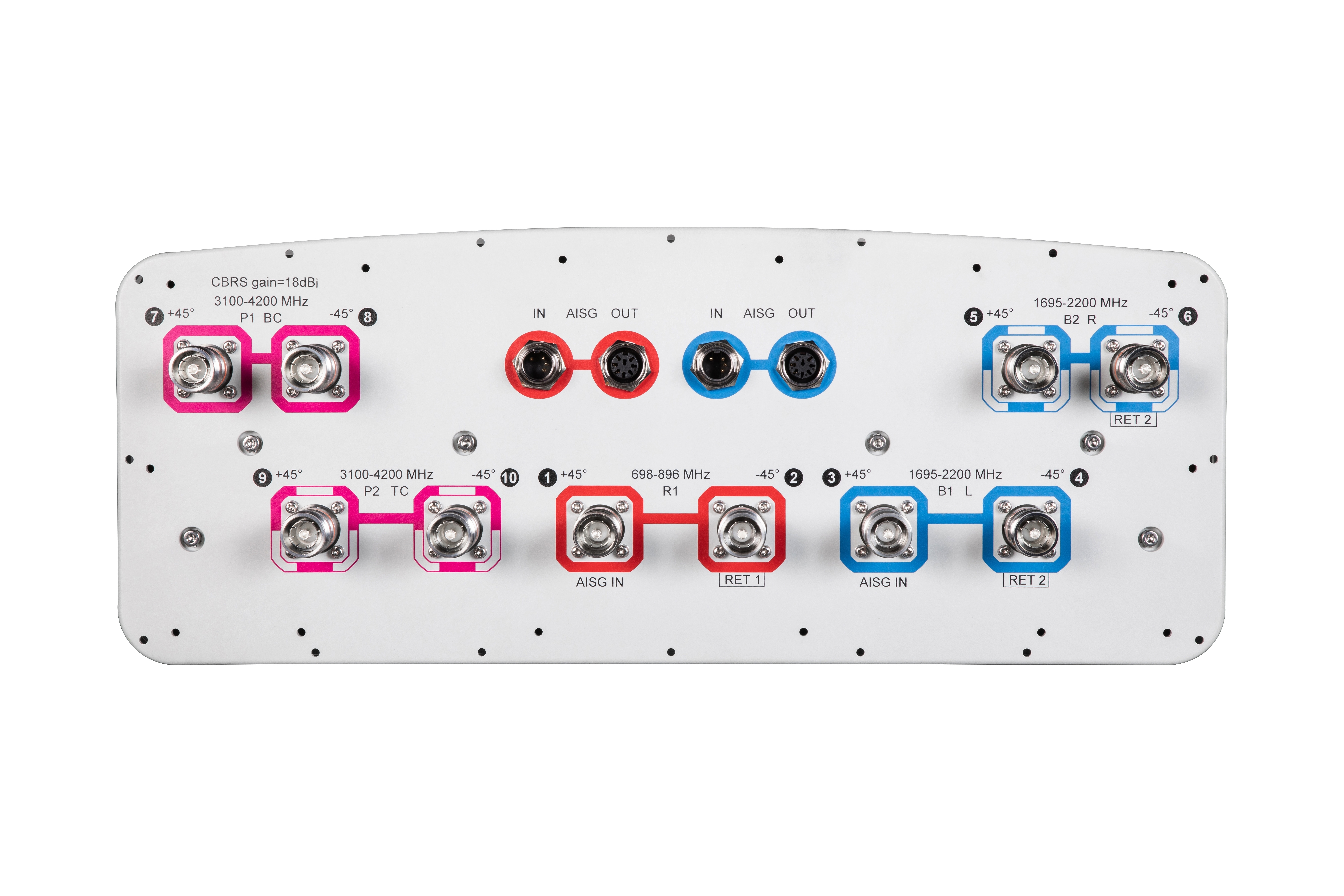

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz | 3100 – 4200 MHz |
| Polarization | ±45° |
Electrical specifications
| R1 | R1 | B1,B2 | B1,B2 | B1,B2 | P1,P2 | P1,P2 | P1,P2 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 3100–3550 | 3550–3700 | 3700–4200 |
| RF Port | 1,2 | 1,2 | 3-6 | 3-6 | 3-6 | 7-10 | 7-10 | 7-10 |
| Gain, dBi | 17.0 | 17.9 | 19.1 | 19.7 | 20.4 | 16.9 | 17.5 | 17.2 |
| Gain at Mid Tilt, dBi | 16.7 | 17.7 | 18.9 | 19.5 | 20.0 | 16.5 | 17.2 | 16.5 |
| Beamwidth, Horizontal, degrees | 45 | 40 | 44 | 42 | 41 | 49 | 43 | 40 |
| Beamwidth, Vertical, degrees | 12.2 | 10.8 | 5.8 | 5.4 | 5.1 | 9.7 | 9.1 | 8.5 |
| Beam Tilt, degrees | 2–14 | 2–14 | 0–8 | 0–8 | 0–8 | 4 | 4 | 4 |
| USLS (First Lobe), dB | 19 | 20 | 17 | 17 | 18 | 18 | 18 | 14 |
| Front-to-Back Ratio at 180°, dB | 31 | 35 | 34 | 33 | 33 | 31 | 32 | 26 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 31 | 32 | 31 | 28 | 28 | 28 | 29 | 23 |
| CPR at Boresight, dB | 23 | 23 | 17 | 16 | 16 | 15 | 16 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -145 | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 250 | 250 | 250 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,065.0 N @ 150 km/h (239.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 220.0 N @ 150 km/h (49.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,065.0 N @ 150 km/h (239.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 935.0 N @ 150 km/h (210.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 526 mm | 20.709 in |
| Depth, packed | 283 mm | 11.142 in |
| Length, packed | 1996 mm | 78.583 in |
| Weight, gross | 52.8 kg | 116.404 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant, Compliant/Exempted |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 10 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 457 mm | 17.992 in |
| Depth | 178 mm | 7.008 in |
| Length | 1828 mm | 71.969 in |
| Net Weight, antenna only | 34.9 kg | 76.941 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2200 MHz | 3100 – 4200 MHz |
| Polarization | ±45° |
Electrical specifications
| R1 | R1 | B1,B2 | B1,B2 | B1,B2 | P1,P2 | P1,P2 | P1,P2 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 3100–3550 | 3550–3700 | 3700–4200 |
| RF Port | 1,2 | 1,2 | 3-6 | 3-6 | 3-6 | 7-10 | 7-10 | 7-10 |
| Gain, dBi | 17.0 | 17.9 | 19.1 | 19.7 | 20.4 | 16.9 | 17.5 | 17.2 |
| Gain at Mid Tilt, dBi | 16.7 | 17.7 | 18.9 | 19.5 | 20.0 | 16.5 | 17.2 | 16.5 |
| Beamwidth, Horizontal, degrees | 45 | 40 | 44 | 42 | 41 | 49 | 43 | 40 |
| Beamwidth, Vertical, degrees | 12.2 | 10.8 | 5.8 | 5.4 | 5.1 | 9.7 | 9.1 | 8.5 |
| Beam Tilt, degrees | 2–14 | 2–14 | 0–8 | 0–8 | 0–8 | 4 | 4 | 4 |
| USLS (First Lobe), dB | 19 | 20 | 17 | 17 | 18 | 18 | 18 | 14 |
| Front-to-Back Ratio at 180°, dB | 31 | 35 | 34 | 33 | 33 | 31 | 32 | 26 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 31 | 32 | 31 | 28 | 28 | 28 | 29 | 23 |
| CPR at Boresight, dB | 23 | 23 | 17 | 16 | 16 | 15 | 16 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -145 | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 250 | 250 | 250 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,065.0 N @ 150 km/h (239.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 220.0 N @ 150 km/h (49.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,065.0 N @ 150 km/h (239.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 935.0 N @ 150 km/h (210.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 526 mm | 20.709 in |
| Depth, packed | 283 mm | 11.142 in |
| Length, packed | 1996 mm | 78.583 in |
| Weight, gross | 52.8 kg | 116.404 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant, Compliant/Exempted |
