LNX003U-V2
H\V Pol Omni Antenna, 2490–2690 MHz, 360° horizontal beamwidth
Specifications
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Grounding Type | RF connector body grounded to mounting interface |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass |

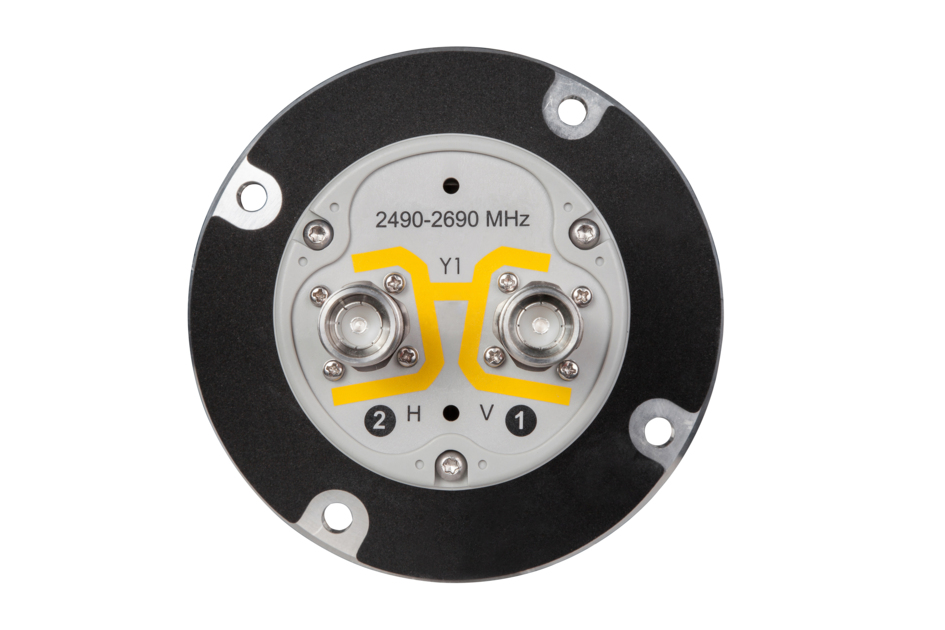

| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 2 |
Dimensions
| Length | 754 mm | 29.685 in |
| Net Weight, without mounting kit | 2.1 kg | 4.63 lb |
| Outer Diameter | 44 mm | 1.732 in |
Mounting hole pattern
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 2490 – 2690 MHz |
| Polarization | Horizontal | Vertical |
Electrical specifications
| Frequency Band, MHz | 2490–2690 |
| Gain, dBi | 6.8 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 19.8 |
| Beam Tilt, degrees | 0 |
| USLS, typical, dB | 10 |
| Isolation, Cross Polarization, dB | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 |
| Input Power per Port, maximum, watts | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 33.0 N @ 150 km/h (7.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 255 mm | 10.039 in |
| Depth, packed | 235 mm | 9.252 in |
| Length, packed | 845 mm | 33.268 in |
| Weight, gross | 4.2 kg | 9.259 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Grounding Type | RF connector body grounded to mounting interface |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 2 |
Dimensions
| Length | 754 mm | 29.685 in |
| Net Weight, without mounting kit | 2.1 kg | 4.63 lb |
| Outer Diameter | 44 mm | 1.732 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 2490 – 2690 MHz |
| Polarization | Horizontal | Vertical |
Electrical specifications
| Frequency Band, MHz | 2490–2690 |
| Gain, dBi | 6.8 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 19.8 |
| Beam Tilt, degrees | 0 |
| USLS, typical, dB | 10 |
| Isolation, Cross Polarization, dB | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 |
| Input Power per Port, maximum, watts | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 33.0 N @ 150 km/h (7.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 255 mm | 10.039 in |
| Depth, packed | 235 mm | 9.252 in |
| Length, packed | 845 mm | 33.268 in |
| Weight, gross | 4.2 kg | 9.259 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
