FFVV-65C-R2-HG
8-port sector antenna, 4X 617-894 and 4X 1695-2690 MHz, 65°HPBW, 2X RET
Features and benefits
- Antenna design optimized to offer high gain performances
- Broadband performance 617-894 MHz and 1695-2690 MHz
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, antenna only | 59.5 kg | 131.175 lb |

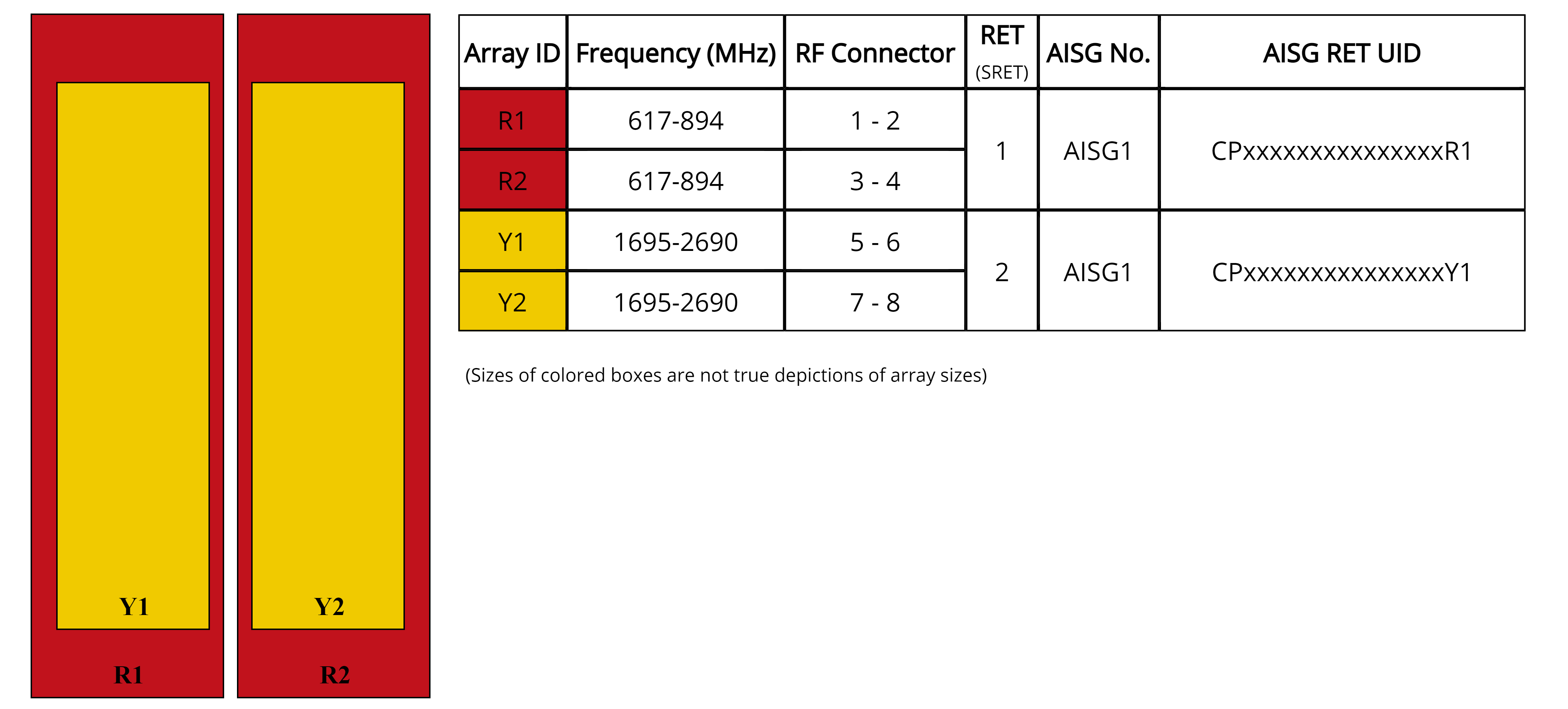

Array layout
| Click on image to enlarge. |

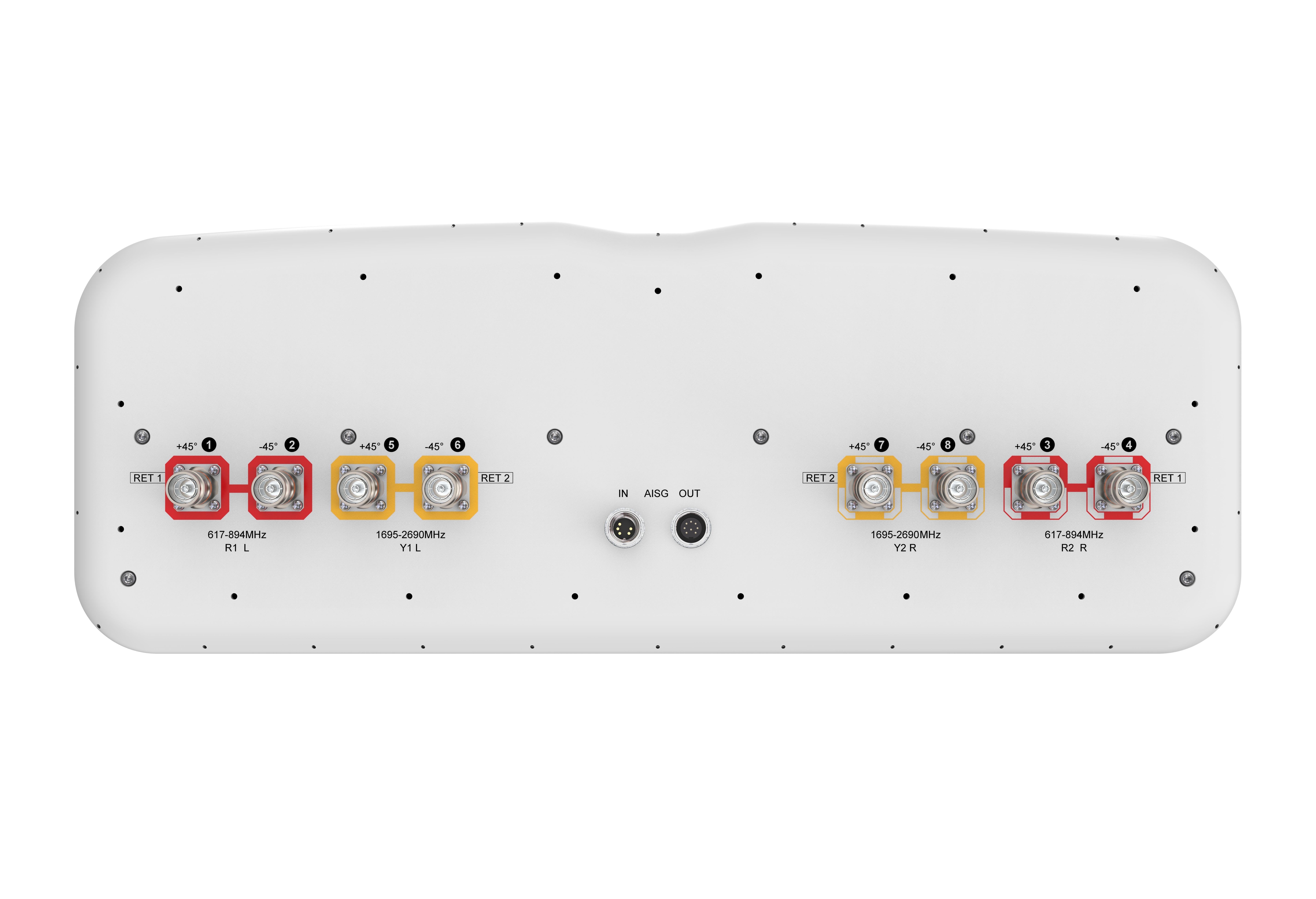

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 894 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 617–698 | 698–894 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2500–2690 |
| RF Port | 1-4 | 1-4 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Gain, dBi | 16.0 | 16.7 | 19.5 | 19.9 | 20.0 | 19.7 | 20.2 |
| Beamwidth, Horizontal, degrees | 68 | 62 | 65 | 59 | 61 | 67 | 57 |
| Beamwidth, Vertical, degrees | 10.2 | 8.6 | 4.2 | 4.1 | 3.9 | 3.4 | 3.2 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–9 | 2–9 | 2–9 | 2–9 | 2–9 |
| USLS (First Lobe), dB | 15 | 16 | 17 | 16 | 17 | 17 | 19 |
| Front-to-Back Ratio at 180°, dB | 30 | 33 | 37 | 38 | 36 | 35 | 34 |
| Front-to-Back Total Power at 180° ± 30°, dB | 22 | 23 | 30 | 31 | 29 | 27 | 26 |
| CPR at Boresight, dB | 16 | 16 | 25 | 23 | 19 | 21 | 27 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 987.0 N @ 150 km/h (221.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 291.0 N @ 150 km/h (65.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,257.0 N @ 150 km/h (282.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 616.0 N @ 150 km/h (138.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 744 mm | 29.291 in |
| Depth, packed | 384 mm | 15.118 in |
| Length, packed | 2590 mm | 101.969 in |
| Weight, gross | 75 kg | 165.347 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, antenna only | 59.5 kg | 131.175 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 894 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 617–698 | 698–894 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2500–2690 |
| RF Port | 1-4 | 1-4 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Gain, dBi | 16.0 | 16.7 | 19.5 | 19.9 | 20.0 | 19.7 | 20.2 |
| Beamwidth, Horizontal, degrees | 68 | 62 | 65 | 59 | 61 | 67 | 57 |
| Beamwidth, Vertical, degrees | 10.2 | 8.6 | 4.2 | 4.1 | 3.9 | 3.4 | 3.2 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–9 | 2–9 | 2–9 | 2–9 | 2–9 |
| USLS (First Lobe), dB | 15 | 16 | 17 | 16 | 17 | 17 | 19 |
| Front-to-Back Ratio at 180°, dB | 30 | 33 | 37 | 38 | 36 | 35 | 34 |
| Front-to-Back Total Power at 180° ± 30°, dB | 22 | 23 | 30 | 31 | 29 | 27 | 26 |
| CPR at Boresight, dB | 16 | 16 | 25 | 23 | 19 | 21 | 27 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 987.0 N @ 150 km/h (221.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 291.0 N @ 150 km/h (65.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,257.0 N @ 150 km/h (282.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 616.0 N @ 150 km/h (138.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 744 mm | 29.291 in |
| Depth, packed | 384 mm | 15.118 in |
| Length, packed | 2590 mm | 101.969 in |
| Weight, gross | 75 kg | 165.347 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
