FFV4Q4-65D-R7-BG

20-port sector antenna, 4x 617-894, 8x 1695-2690 MHz 65° HPBW and 8x 2500-4000 MHz, Beamformer, 7x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • All Internal RET actuators are connected in "Cascaded SRET" configuration
  • Cluster connectors for the TDD beam-forming array at 2500-4000MHz
  • 1695-2690MHz Ports Support additional 8T8R Beamforming capability by integrating calibration networks

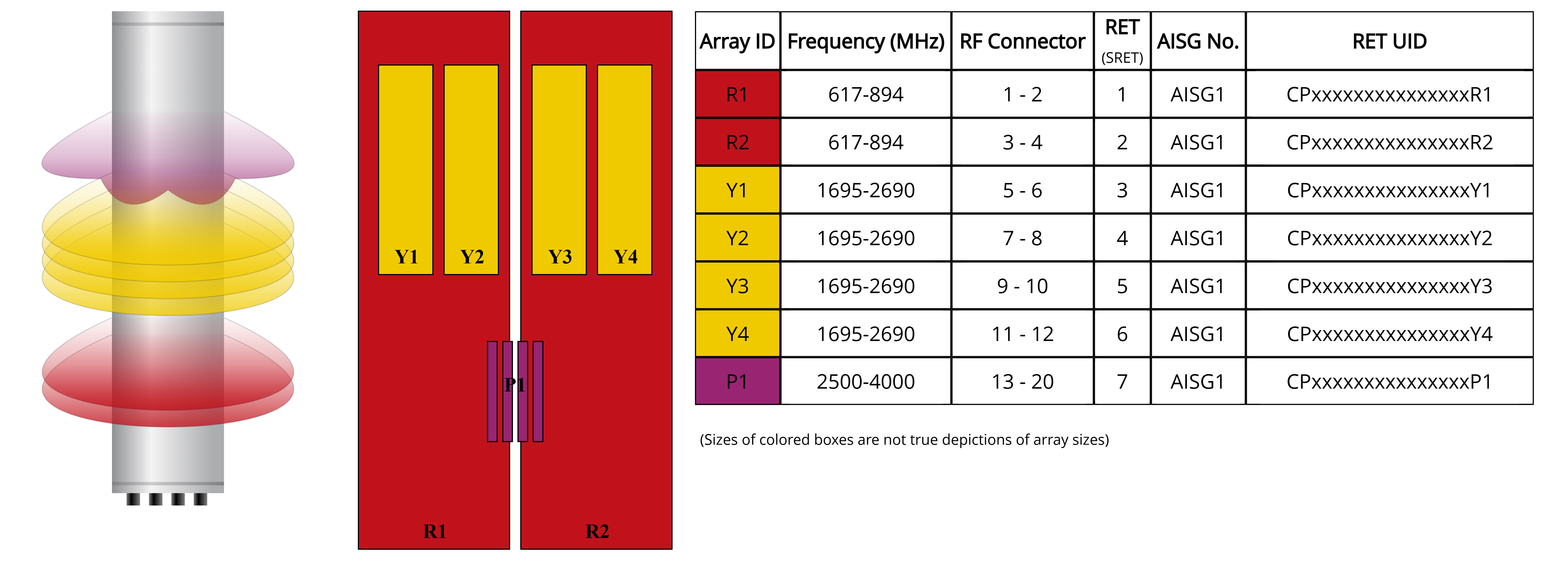

Array layout

Click on image to enlarge.

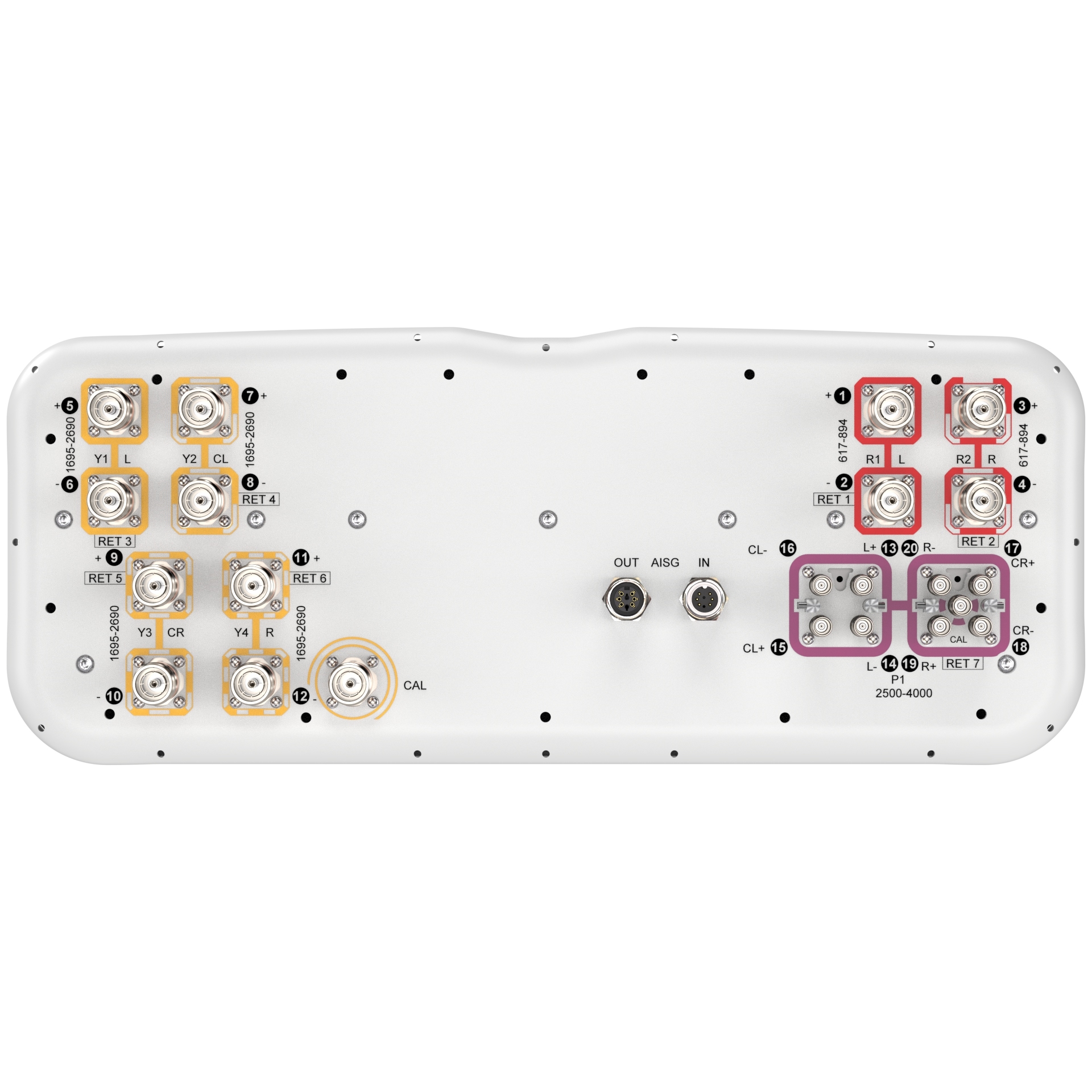

Port configuration

Click on image to enlarge.

Electrical specifications

R1,R2 R1,R2 Y1-Y4 Y1-Y4 Y1-Y4 P1 P1 P1 P1
Frequency Band, MHz 617–698 698–894 1695–1920 1920–2200 2490–2690 2500–2690 3100–3300 3300–3800 3700–4000
RF Port 1,2,3,4 1,2,3,4 5-12 5-12 5-12 13-20 13-20 13-20 13-20
Gain, dBi 15.5 16.6 16.9 17.9 18.0 16.6 16.9 16.9 16.3
Beamwidth, Horizontal, degrees 72 62 70 67 56 84 67 60 64
Beamwidth, Vertical, degrees 9.1 7.7 6.8 6.1 5 5.8 5.8 5.7 6
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 15 17 17 15 18 16 16 16 15
Front-to-Back Ratio at 180°, dB 28 31 32 35 31 33 32 29 27
Coupling level, Amp, Antenna port to Cal port, dB 26 26 26 26 26 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2 ±2 ±2 ±2 ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9 0.9 0.9 0.9 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7 7 7 7 7 7
CPR at Boresight, dB 17 17 22 23 19 16 15 14 13
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 25 25 25 18 18 18 18
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -140 -140 -140 -140
Input Power per Port at 50°C, maximum, watts 250 250 150 150 150 80 80 80 80

Electrical specifications, broadcast 65

Frequency Band, MHz 617–698 698–894 1695–1920 1920–2200 2490–2690 2500–2690 3100–3300 3300–3800 3700–4000
Gain, dBi 18.8 17.4 17.1 16.6
Beamwidth, Horizontal at 3 dB, degrees 65 65 65 65
Beamwidth, Horizontal at 10 dB, degrees 106 115 108 105
Beamwidth, Vertical, degrees 5.9 5.7 5.6 5.8
Front-to-Back Total Power at 180° ± 30°, dB 30 27 24 22
USLS (First Lobe), dB 17 17 18 17

Electrical specifications, envelope pattern

Frequency Band, MHz 617–698 698–894 1695–1920 1920–2200 2490–2690 2500–2690 3100–3300 3300–3800 3700–4000
Gain, dBi 21.2 21.6 21.4 21.1
Beamwidth, Horizontal at 10 dB, degrees 118 132 120 121
Front-to-Back Total Power at 180° ± 30°, dB 31 28 26 25
USLS (First Lobe), dB 18 20 18 18

Electrical specifications, service beam

Frequency Band, MHz 617–698 698–894 1695–1920 1920–2200 2490–2690 2500–2690 3100–3300 3300–3800 3700–4000
Steered 0° Gain, dBi 22.2 23.3 23.4 21.2 21.6 21.3 20.9
Steered 0° Beamwidth, Horizontal, degrees 18 16 12 25 19 19 19
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 34 36 31 33 32 28 26
Steered 0° Horizontal Sidelobe, dB 12 12 13 12 13 11 11
Steered 30° Gain, dBi 20.6 19.6 19.7 19.4
Steered 30° Beamwidth, Horizontal, degrees 27 24 21 18
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 32 26 26 25

Electrical specifications, soft split

Frequency Band, MHz 617–698 698–894 1695–1920 1920–2200 2490–2690 2500–2690 3100–3300 3300–3800 3700–4000
Gain, dBi 20.6 21.5 20.9 20.4
Beamwidth, Horizontal, degrees 22 20 16 30
Front-to-Back Total Power at 180° ± 30°, dB 32 34 31 32

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
UK-ROHS Compliant
