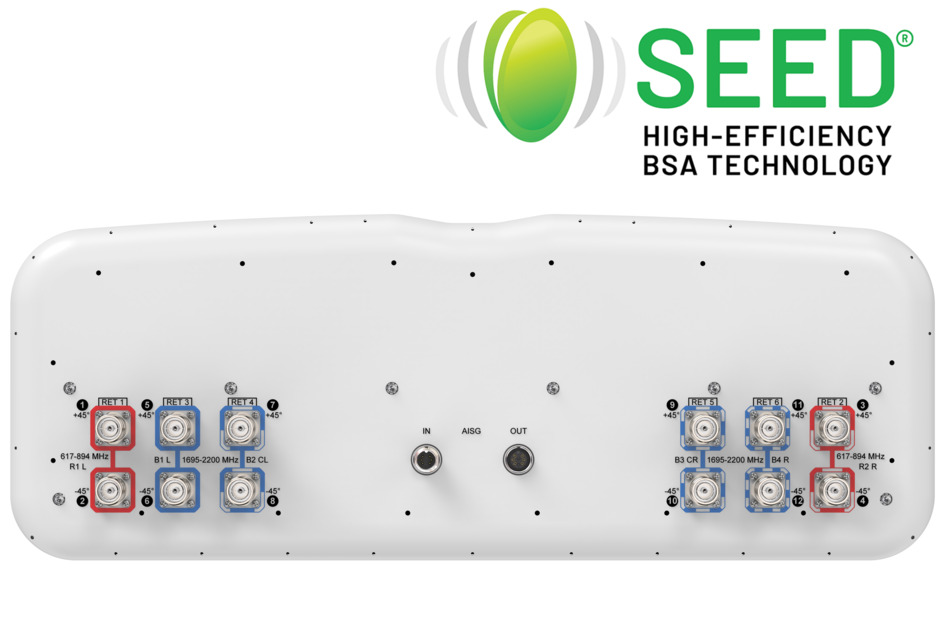

FFH4-65C-R6-HG

12-port sector antenna, 4X 617-894 and 8X 1695-2200 MHz, 65°HPBW, 6X RETs

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Antenna design optimized to offer high gain performances
  • Broadband performance 617-894 MHz and 1695-2200 MHz

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (4)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2438 mm | 95.984 in
Net Weight, without mounting kit 53.6 kg | 118.168 lb

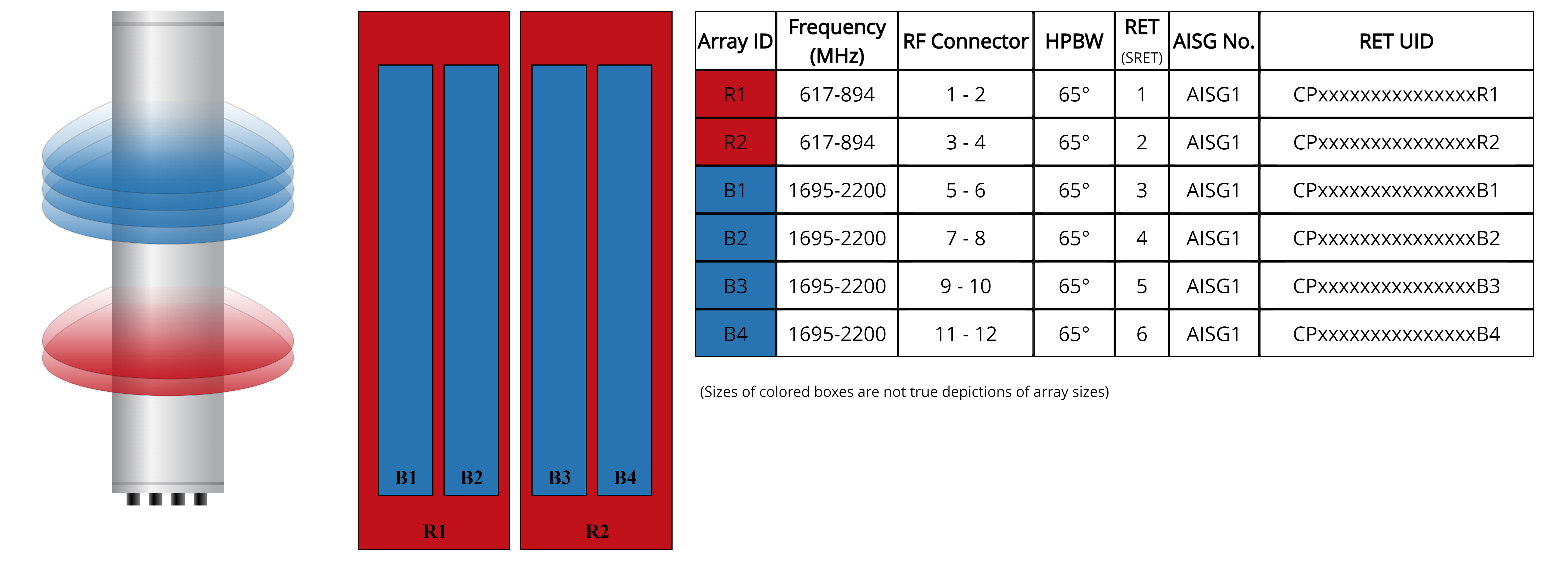

Array layout

Click on image to enlarge.

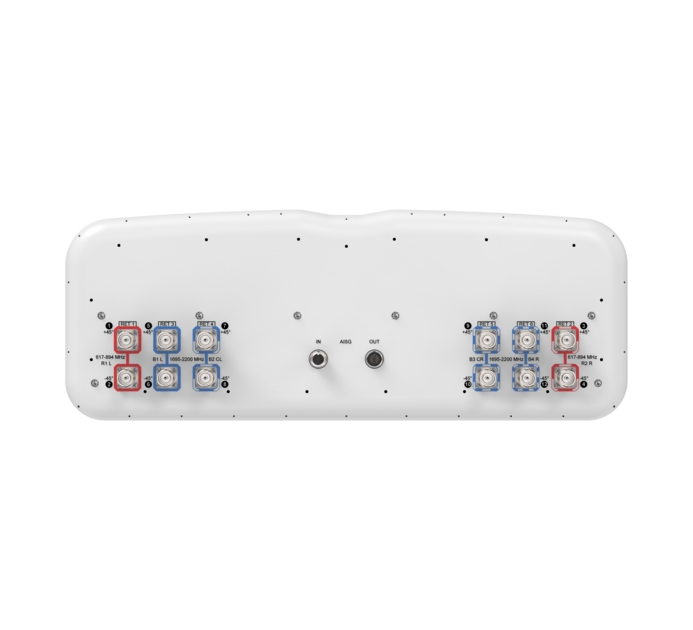

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 617 – 894 MHz | 1695 – 2200 MHz
Polarization ±45°
Total Input Power, maximum 1,440 W

Electrical specifications

R1,R2 R1,R2 B1-B4 B1-B4 B1-B4
Frequency Band, MHz 617–698 698–894 1695–1880 1850–1990 1920–2200
RF Port 1-4 1-4 5-12 5-12 5-12
Gain, Maximum, dBi 16.300 17.200 19.400 19.600 19.800
Beamwidth, Horizontal, degrees 60 57 60 61 62
Beamwidth, Vertical, degrees 10.4 8.8 4.3 4 3.9
Beam Tilt, degrees 0–10 0–10 0–7 0–7 0–7
USLS (First Lobe), dB 15 15 15 15 15
Front-to-Back Ratio at 180°, dB 30 32 35 35 32
CPR at Boresight, dB 18 16 20 21 20
Isolation, Cross Polarization, dB 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 250 250 200 200 200

Mechanical specifications

Wind Loading @ Velocity, frontal 986.0 N @ 150 km/h (221.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 291.0 N @ 150 km/h (65.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,256.0 N @ 150 km/h (282.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 616.0 N @ 150 km/h (138.5 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 752 mm | 29.606 in
Depth, packed 382 mm | 15.039 in
Length, packed 2589 mm | 101.929 in
Weight, gross 72 kg | 158.733 lb

Regulatory compliance/certifications

Agency Classification
UK-ROHS Compliant

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 8
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (4)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 640 mm | 25.197 in
Depth 235 mm | 9.252 in
Length 2438 mm | 95.984 in
Net Weight, without mounting kit 53.6 kg | 118.168 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 617 – 894 MHz | 1695 – 2200 MHz
Polarization ±45°
Total Input Power, maximum 1,440 W

Electrical specifications

R1,R2 R1,R2 B1-B4 B1-B4 B1-B4
Frequency Band, MHz 617–698 698–894 1695–1880 1850–1990 1920–2200
RF Port 1-4 1-4 5-12 5-12 5-12
Gain, Maximum, dBi 16.300 17.200 19.400 19.600 19.800
Beamwidth, Horizontal, degrees 60 57 60 61 62
Beamwidth, Vertical, degrees 10.4 8.8 4.3 4 3.9
Beam Tilt, degrees 0–10 0–10 0–7 0–7 0–7
USLS (First Lobe), dB 15 15 15 15 15
Front-to-Back Ratio at 180°, dB 30 32 35 35 32
CPR at Boresight, dB 18 16 20 21 20
Isolation, Cross Polarization, dB 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 250 250 200 200 200

Mechanical specifications

Wind Loading @ Velocity, frontal 986.0 N @ 150 km/h (221.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 291.0 N @ 150 km/h (65.4 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,256.0 N @ 150 km/h (282.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 616.0 N @ 150 km/h (138.5 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 752 mm | 29.606 in
Depth, packed 382 mm | 15.039 in
Length, packed 2589 mm | 101.929 in
Weight, gross 72 kg | 158.733 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
UK-ROHS Compliant
