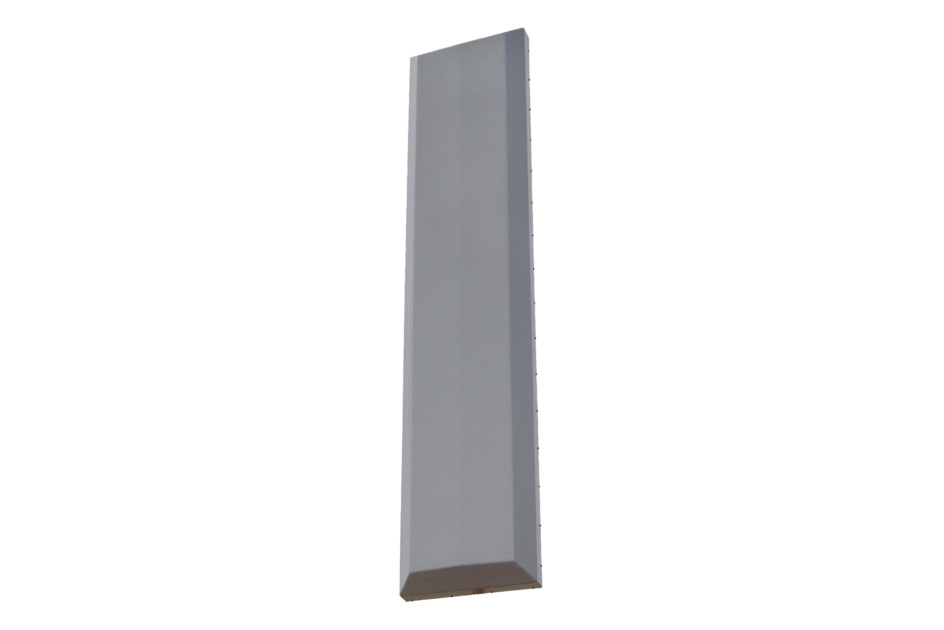

DB654DG65A-C

2-port sector antenna, 2x 410–512 MHz, 65° HPBW, fixed electrical tilt

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Air dielectric feed system with no screws, rivets, solder, or welding in dipole feed point

General specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ABS, UV resistant
Radiator Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Rear
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 2

Dimensions

Width 483 mm | 19.016 in
Depth 229 mm | 9.016 in
Length 1981 mm | 77.992 in
Net Weight, without mounting kit 19 kg | 41.888 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 410 – 512 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 410–512
Gain, dBi 15.0
Beamwidth, Horizontal, degrees 65
Beamwidth, Vertical, degrees 17
Beam Tilt, degrees 0
USLS, typical, dB 15
Front-to-Back Ratio at 180°, dB 28
Isolation, Cross Polarization, dB 30
VSWR | Return loss, dB 1.4 | 15.6
Input Power per Port, maximum, watts 600

Mechanical specifications

Wind Loading @ Velocity, maximum 1,397.6 N @ 150 km/h (314.2 lbf @ 150 km/h)
Wind Speed, maximum 201 km/h (125 mph)

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Sector
Band Single band
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ABS, UV resistant
Radiator Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Rear
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 2

Dimensions

Width 483 mm | 19.016 in
Depth 229 mm | 9.016 in
Length 1981 mm | 77.992 in
Net Weight, without mounting kit 19 kg | 41.888 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 410 – 512 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 410–512
Gain, dBi 15.0
Beamwidth, Horizontal, degrees 65
Beamwidth, Vertical, degrees 17
Beam Tilt, degrees 0
USLS, typical, dB 15
Front-to-Back Ratio at 180°, dB 28
Isolation, Cross Polarization, dB 30
VSWR | Return loss, dB 1.4 | 15.6
Input Power per Port, maximum, watts 600

Mechanical specifications

Wind Loading @ Velocity, maximum 1,397.6 N @ 150 km/h (314.2 lbf @ 150 km/h)
Wind Speed, maximum 201 km/h (125 mph)

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
