DB404-B

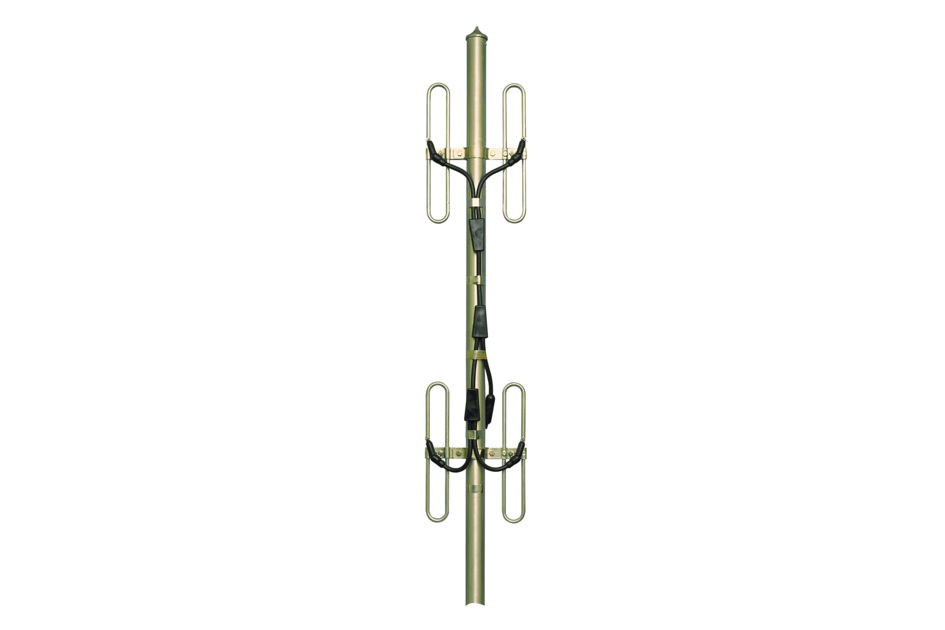

1-port omni exposed dipole antenna, 450–470 MHz, 360° HPBW, fixed electrical tilt

Finish making your selections or clear them to view relevant specifications.
Find a partner

General specifications

Antenna Type Omni
Band Single band
Color Silver
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radiator Material Aluminum
RF Connector Interface N Male
RF Connector Location End of flexible lead
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 1
RF Connector Quantity, total 1

Dimensions

Length 1524 mm | 60 in
Net Weight, without mounting kit 6.4 kg | 14.11 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 450 – 470 MHz
Polarization Vertical

Electrical specifications

Frequency Band, MHz 450–470
Gain, dBi 5.9
Beamwidth, Horizontal, degrees 360
Beamwidth, Vertical, degrees 27
Beam Tilt, degrees 0
VSWR | Return loss, dB 1.5 | 14.0
Input Power per Port, maximum, watts 250

Mechanical specifications

Wind Speed, maximum 161 km/h (100 mph)

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Omni
Band Single band
Color Silver
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radiator Material Aluminum
RF Connector Interface N Male
RF Connector Location End of flexible lead
RF Connector Quantity, high band 0
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 1
RF Connector Quantity, total 1

Dimensions

Length 1524 mm | 60 in
Net Weight, without mounting kit 6.4 kg | 14.11 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 450 – 470 MHz
Polarization Vertical

Electrical specifications

Frequency Band, MHz 450–470
Gain, dBi 5.9
Beamwidth, Horizontal, degrees 360
Beamwidth, Vertical, degrees 27
Beam Tilt, degrees 0
VSWR | Return loss, dB 1.5 | 14.0
Input Power per Port, maximum, watts 250

Mechanical specifications

Wind Speed, maximum 161 km/h (100 mph)

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
