4V-15A-R4
8-port multibeam antenna, 8x 1710–2690 MHz, 4x 15-17° HPBW, 4x RET with tilt indicators
Features and benefits
- Provides 4 beams, Supporting for high capacity at venues or special events
- Increases capacity density for maximum throughput
- All RETs have a tilt indicator rod
Specifications
General specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1226 mm | 48.268 in |
| Net Weight, antenna only | 38.1 kg | 83.996 lb |

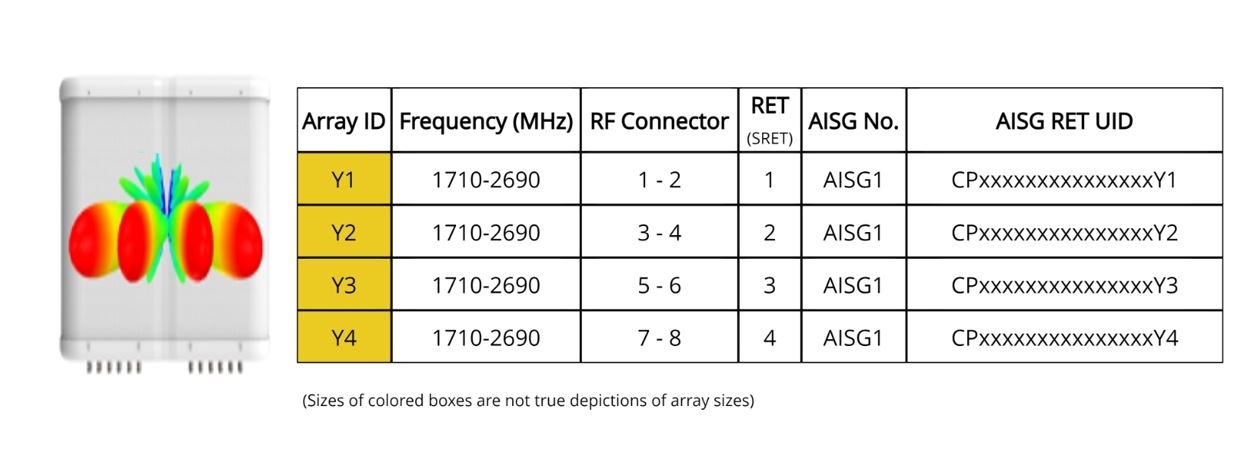

Array layout
| Click on image to enlarge. |

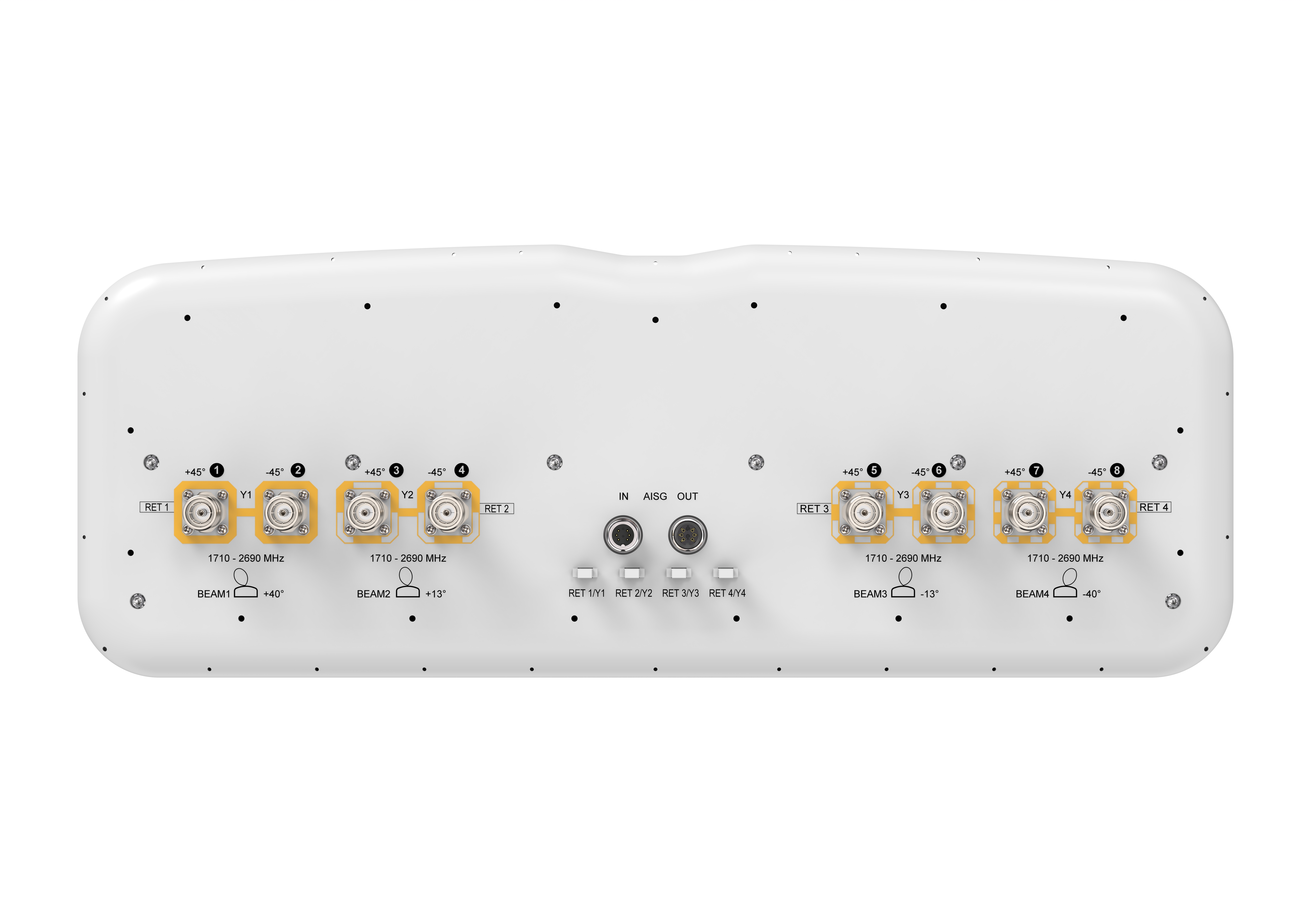

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 960 W |
Electrical specifications
| Frequency Band, MHz | 1710–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 21.1 | 22.0 | 22.5 | 22.6 |
| Beam Centers, Horizontal, degrees | ±13 ±40 | ±13 ±40 | ±13 ±40 | ±13 ±40 |
| Beamwidth, Horizontal, degrees | 17 | 16 | 13 | 12 |
| Beamwidth, Vertical, degrees | 7.8 | 7 | 6 | 5.6 |
| Beam Tilt, degrees | 2–10 | 2–10 | 2–10 | 2–10 |
| USLS (First Lobe), dB | 16 | 16 | 17 | 17 |
| Front-to-Back Ratio at 180°, dB | 31 | 32 | 29 | 31 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 18 | 19 | 17 | 16 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 473.0 N @ 150 km/h (106.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 128.0 N @ 150 km/h (28.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 603.0 N @ 150 km/h (135.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 295.0 N @ 150 km/h (66.3 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 752 mm | 29.606 in |
| Depth, packed | 377 mm | 14.843 in |
| Length, packed | 1379 mm | 54.291 in |
| Weight, gross | 50.1 kg | 110.451 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 640 mm | 25.197 in |
| Depth | 235 mm | 9.252 in |
| Length | 1226 mm | 48.268 in |
| Net Weight, antenna only | 38.1 kg | 83.996 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 960 W |
Electrical specifications
| Frequency Band, MHz | 1710–1920 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 21.1 | 22.0 | 22.5 | 22.6 |
| Beam Centers, Horizontal, degrees | ±13; ±40 | ±13; ±40 | ±13; ±40 | ±13; ±40 |
| Beamwidth, Horizontal, degrees | 17 | 16 | 13 | 12 |
| Beamwidth, Vertical, degrees | 7.8 | 7 | 6 | 5.6 |
| Beam Tilt, degrees | 2–10 | 2–10 | 2–10 | 2–10 |
| USLS (First Lobe), dB | 16 | 16 | 17 | 17 |
| Front-to-Back Ratio at 180°, dB | 31 | 32 | 29 | 31 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 |
| Isolation, Beam to Beam, dB | 18 | 19 | 17 | 16 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 473.0 N @ 150 km/h (106.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 128.0 N @ 150 km/h (28.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 603.0 N @ 150 km/h (135.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 295.0 N @ 150 km/h (66.3 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 752 mm | 29.606 in |
| Depth, packed | 377 mm | 14.843 in |
| Length, packed | 1379 mm | 54.291 in |
| Weight, gross | 50.1 kg | 110.451 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
