2VV-33B-R4VB
8-port multibeam antenna, 8x 1695–2690 MHz, 33° HPBW, 4xRET
Features and benefits
- Enhances network capacity and spectrum utilization when used in six sector applications
- Reduces antenna count to minimize Cap-Ex and Op-Ex costs – 3 antennas required for 6 sector configurations
Specifications
General specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 397 mm | 15.630 in |
| Depth | 197 mm | 7.756 in |
| Length | 1997 mm | 78.622 in |
| Net Weight, antenna only | 21.2 kg | 46.738 lb |

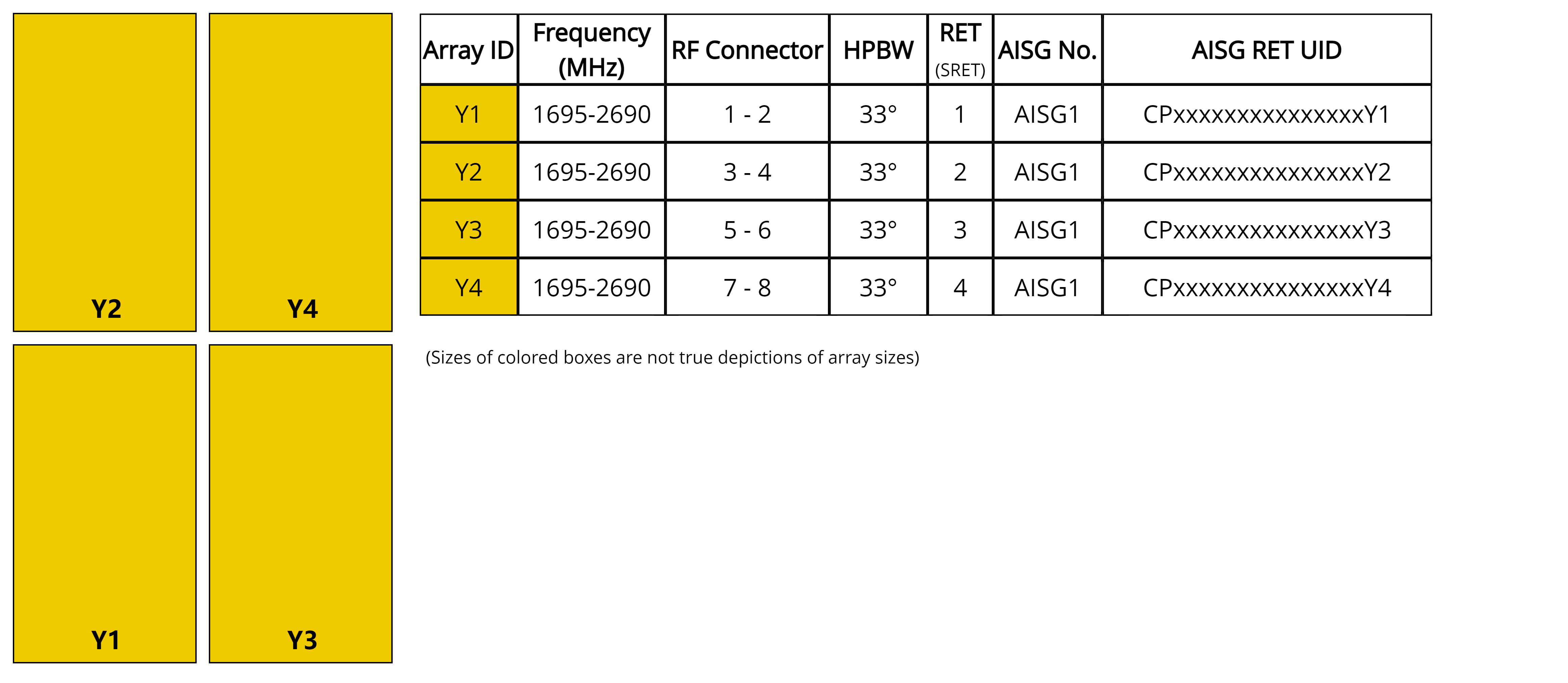

Array layout
| Click on image to enlarge. |

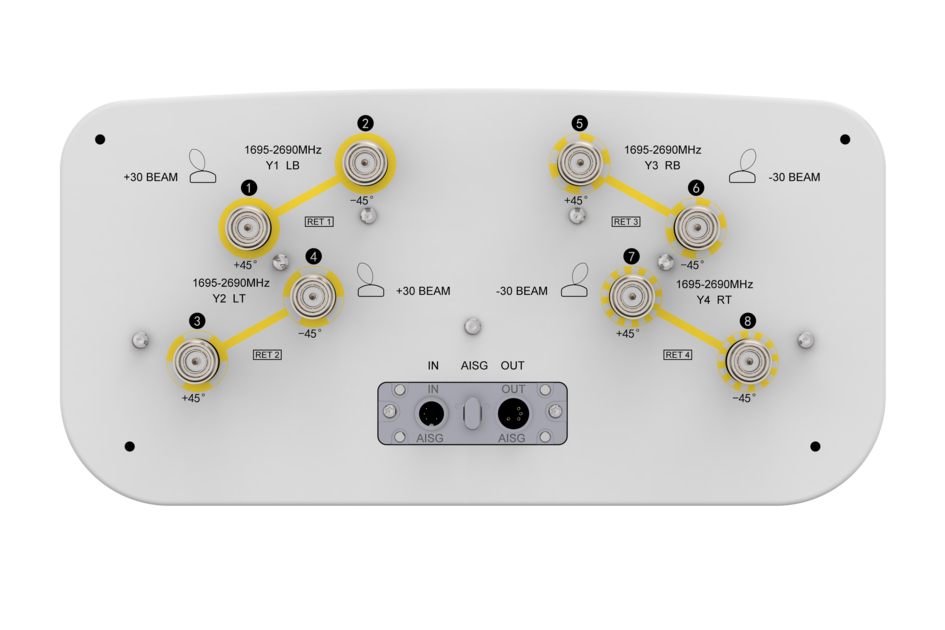

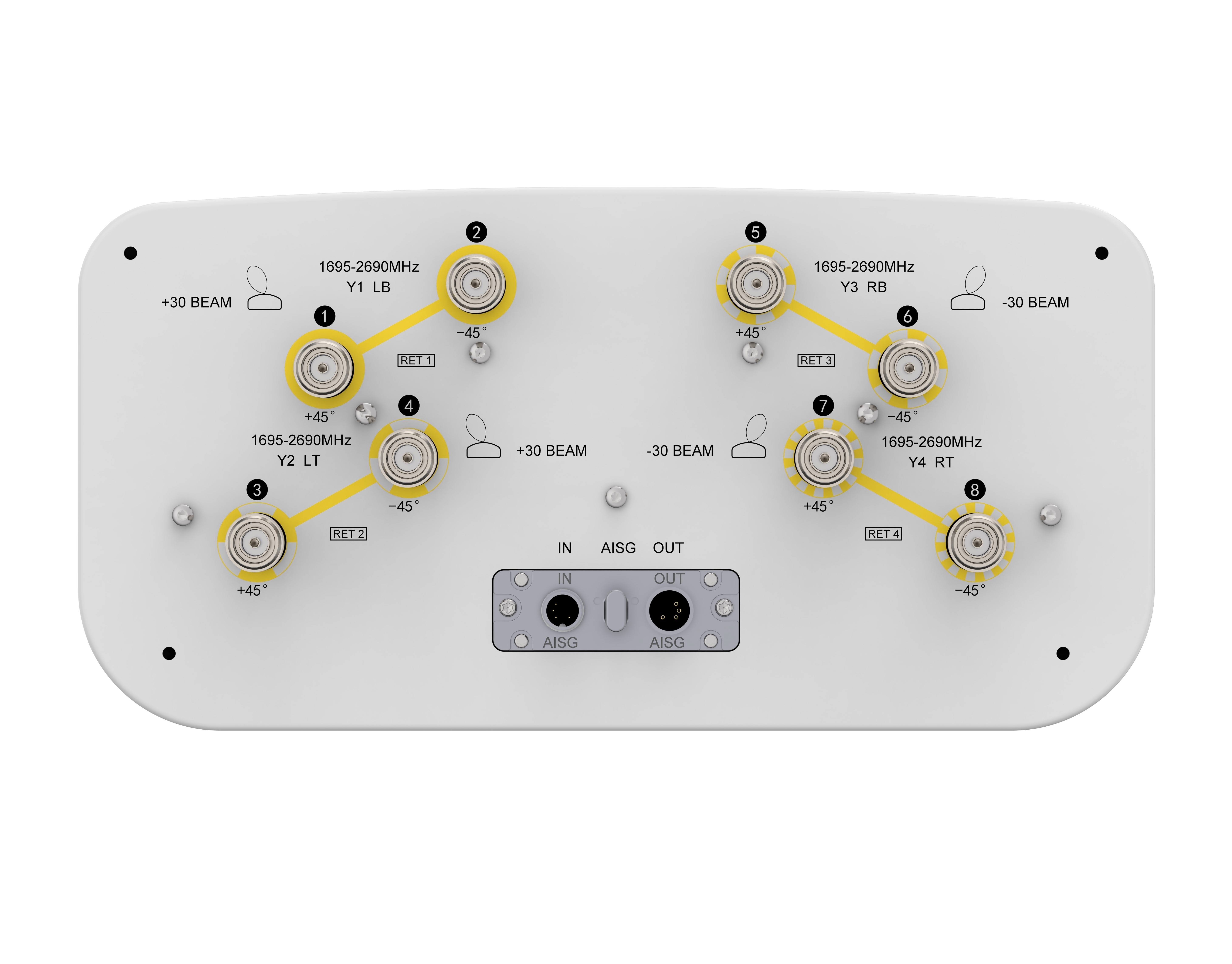

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
| BASTA Version, electrical | BASTA v11 |
Electrical specifications
| Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 |
| RF Port | 1-8 | 1-8 | 1-8 | 1-8 |
| Gain, dBi | 18.3 | 19.1 | 19.8 | 19.8 |
| Beam Centers, Horizontal, degrees | ±30 | ±30 | ±30 | ±30 |
| Beamwidth, Horizontal, degrees | 39 | 35 | 30 | 28 |
| Beamwidth, Vertical, degrees | 9.8 | 8.8 | 7.5 | 6.9 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 21 | 21 | 20 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 29 | 31 | 30 | 29 |
| CPR at Boresight, dB | 20 | 23 | 26 | 23 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 26 | 26 | 26 | 26 |
| Isolation, Beam to Beam, dB | 26 | 26 | 26 | 26 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 625.0 N @ 150 km/h (140.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 289.0 N @ 150 km/h (65.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 270.0 N @ 150 km/h (60.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 492 mm | 19.370 in |
| Depth, packed | 317 mm | 12.480 in |
| Length, packed | 2197 mm | 86.496 in |
| Weight, gross | 32 kg | 70.548 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 397 mm | 15.630 in |
| Depth | 197 mm | 7.756 in |
| Length | 1997 mm | 78.622 in |
| Net Weight, antenna only | 21.2 kg | 46.738 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,000 W |
| BASTA Version, electrical | BASTA v11 |
Electrical specifications
| Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 1695–1995 | 1920–2300 | 2300–2500 | 2490–2690 |
| RF Port | 1-8 | 1-8 | 1-8 | 1-8 |
| Gain, dBi | 18.3 | 19.1 | 19.8 | 19.8 |
| Beam Centers, Horizontal, degrees | ±30 | ±30 | ±30 | ±30 |
| Beamwidth, Horizontal, degrees | 39 | 35 | 30 | 28 |
| Beamwidth, Vertical, degrees | 9.8 | 8.8 | 7.5 | 6.9 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 16 | 21 | 21 | 20 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 29 | 31 | 30 | 29 |
| CPR at Boresight, dB | 20 | 23 | 26 | 23 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 26 | 26 | 26 | 26 |
| Isolation, Beam to Beam, dB | 26 | 26 | 26 | 26 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 625.0 N @ 150 km/h (140.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 289.0 N @ 150 km/h (65.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 270.0 N @ 150 km/h (60.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 492 mm | 19.370 in |
| Depth, packed | 317 mm | 12.480 in |
| Length, packed | 2197 mm | 86.496 in |
| Weight, gross | 32 kg | 70.548 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
